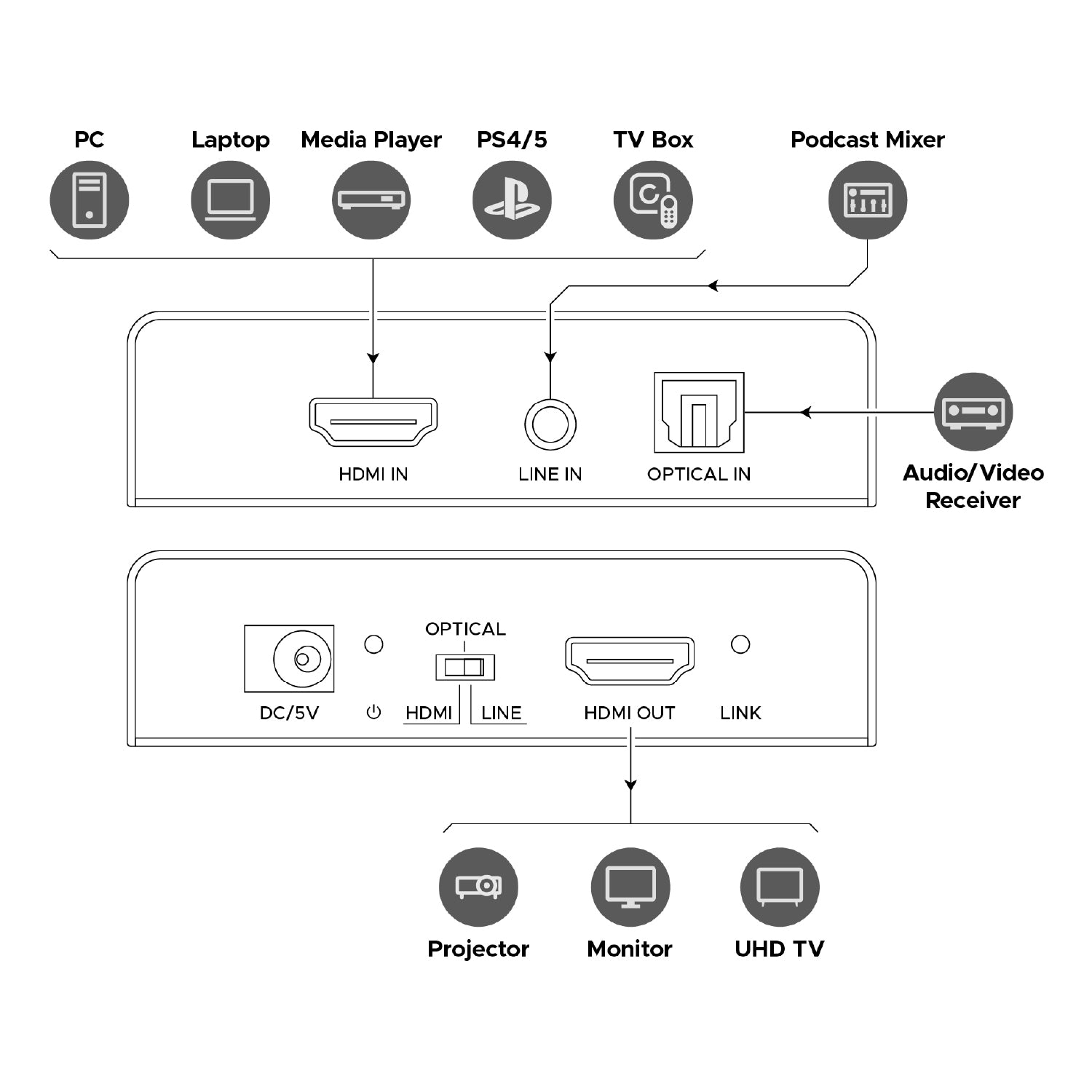

Integrate external audio into your HDMI setup effortlessly with the 4K60 HDMI Audio Embedder, designed to provide flexible, high-quality sound with minimal setup. Choose between two-channel analog input or Toslink optical input, supporting LPCM 2-channel, Dolby Digital 2/5.1, and DTS 2/5.1 for complete compatibility with your audio sources.

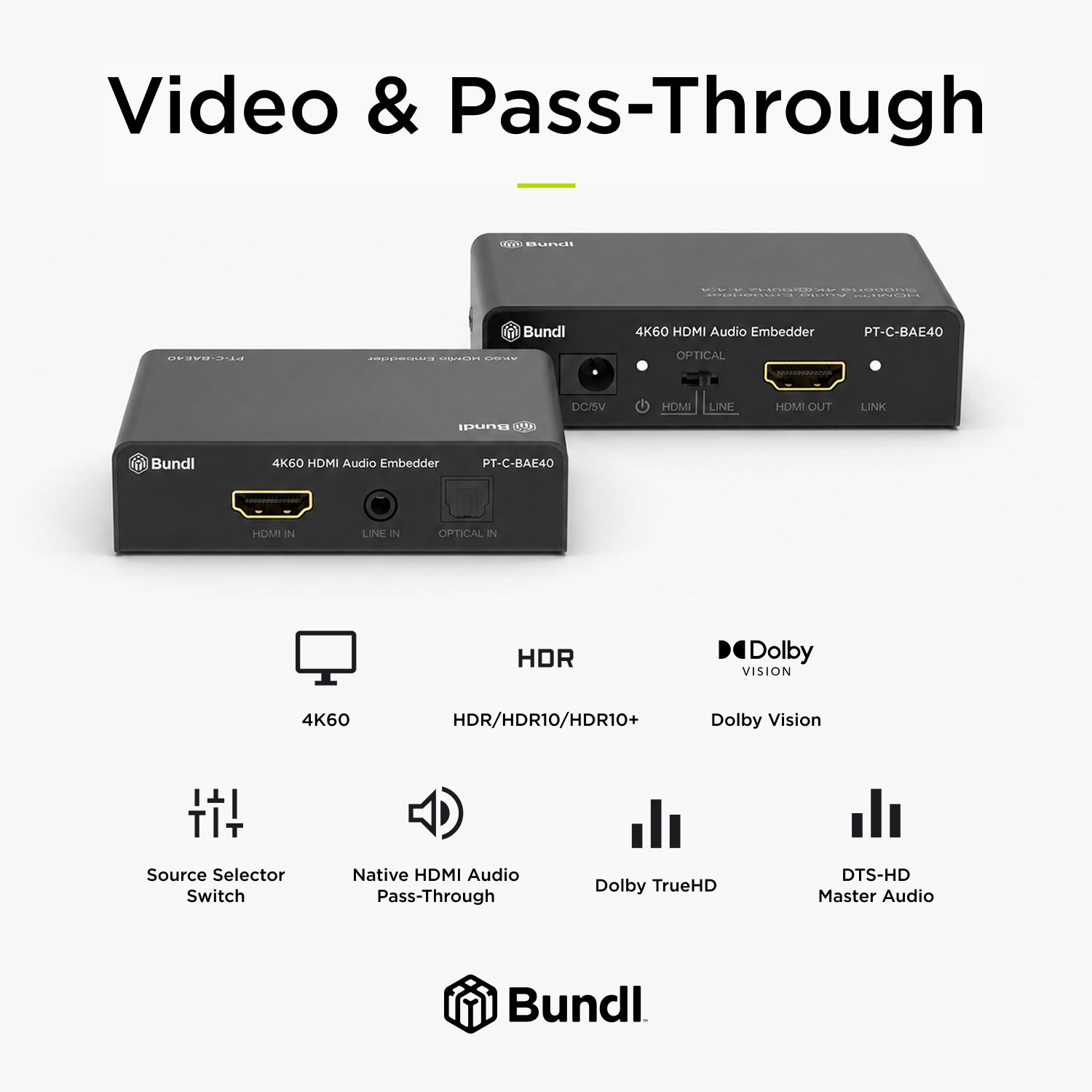

A convenient built-in selector switch lets you choose which audio source is sent to the HDMI output, including full pass-through for native HDMI audio such as Dolby TrueHD and DTS-HD Master Audio. Video remains crisp at 4K60, ensuring your display delivers stunning visuals while your audio setup integrates seamlessly.
Compact, plug-and-play ready, and easy to use, the 4K60 HDMI Audio Embedder is perfect for home theaters, gaming setups, streaming, podcasting, and any scenario where external audio needs to be cleanly combined with HDMI signals. Straightforward and dependable, it keeps your system easy to use and ready for any content.

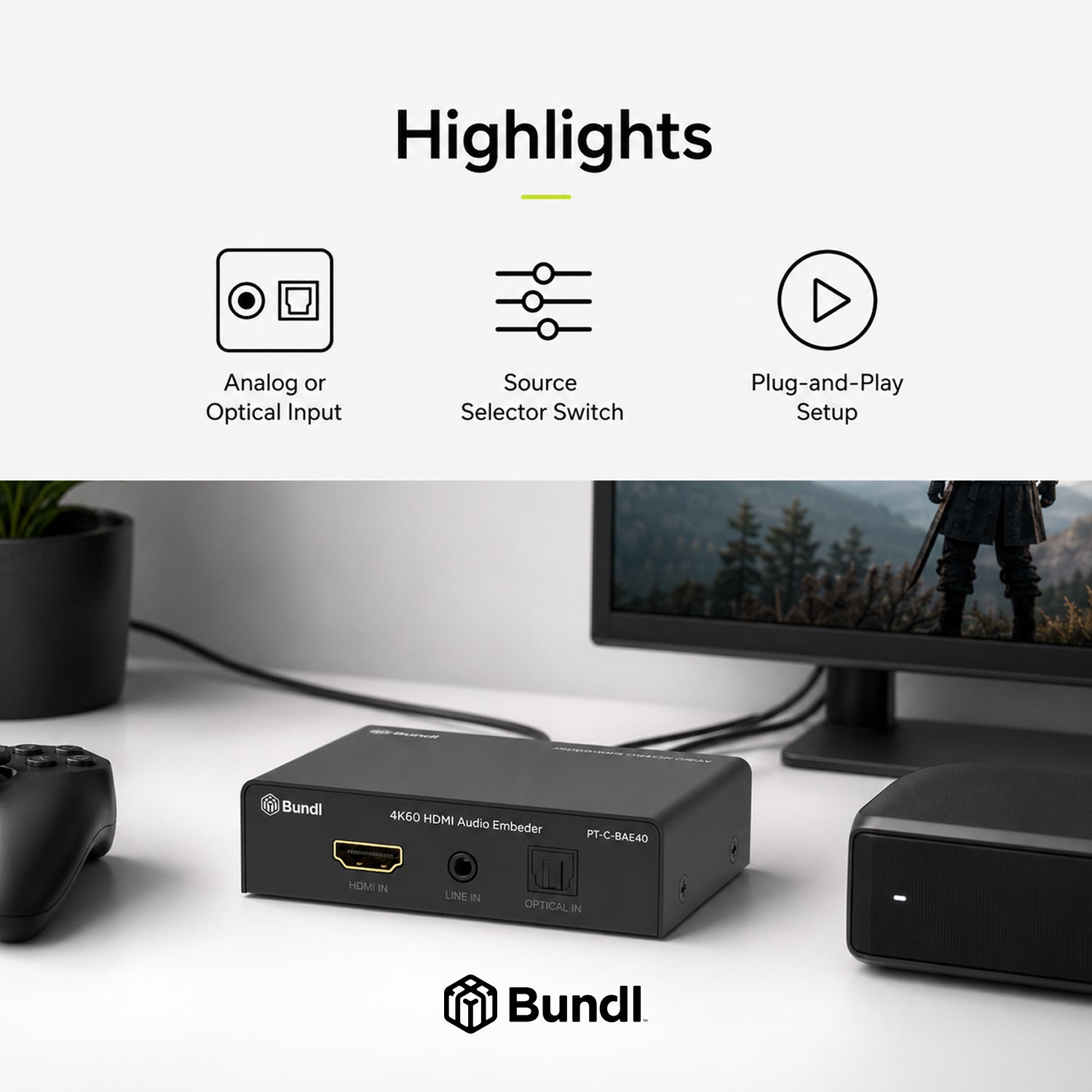

Key Features
• Support for 4K60, HDR, HDR10, HDR10+, and Dolby Vision

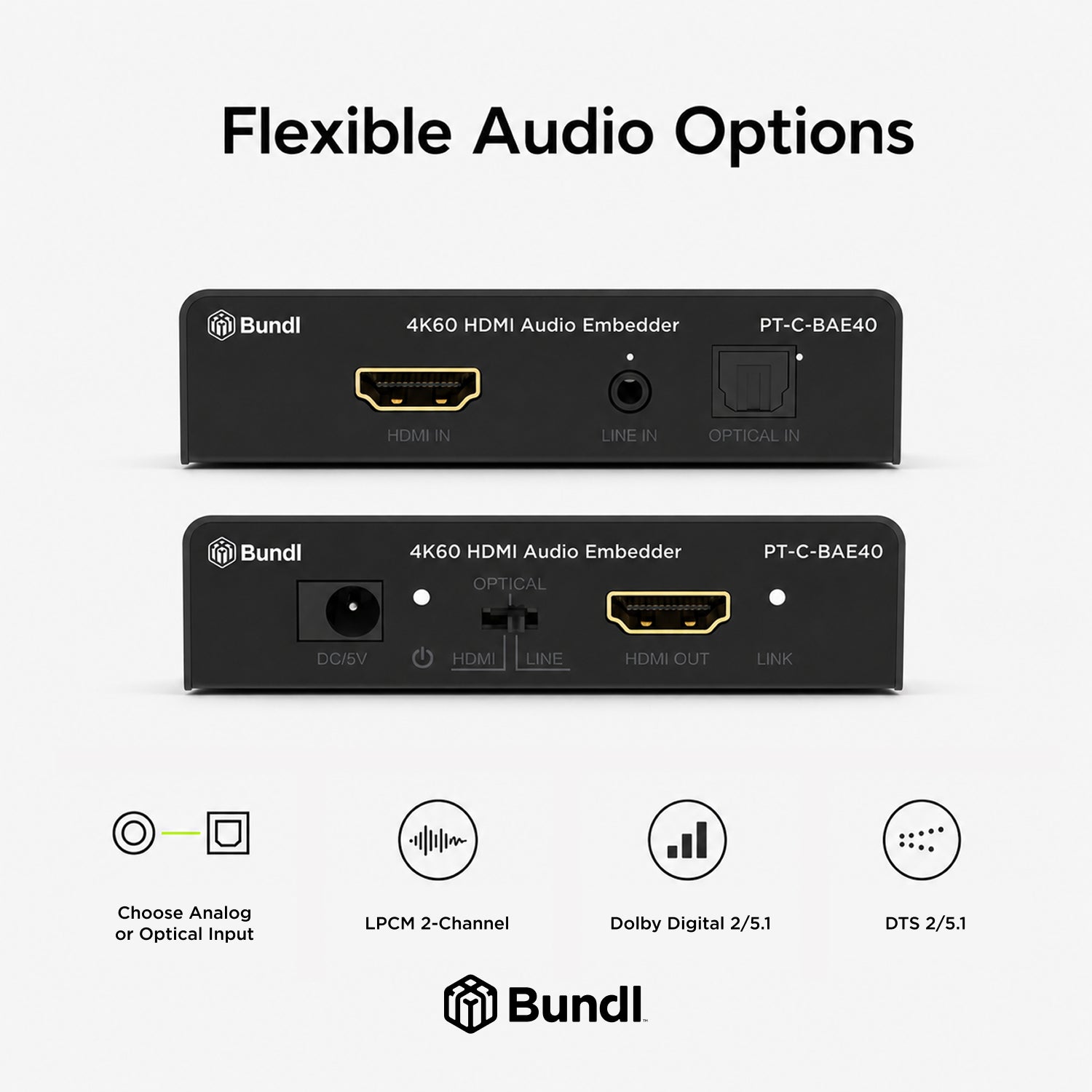

• Choose Analog or Optical Input

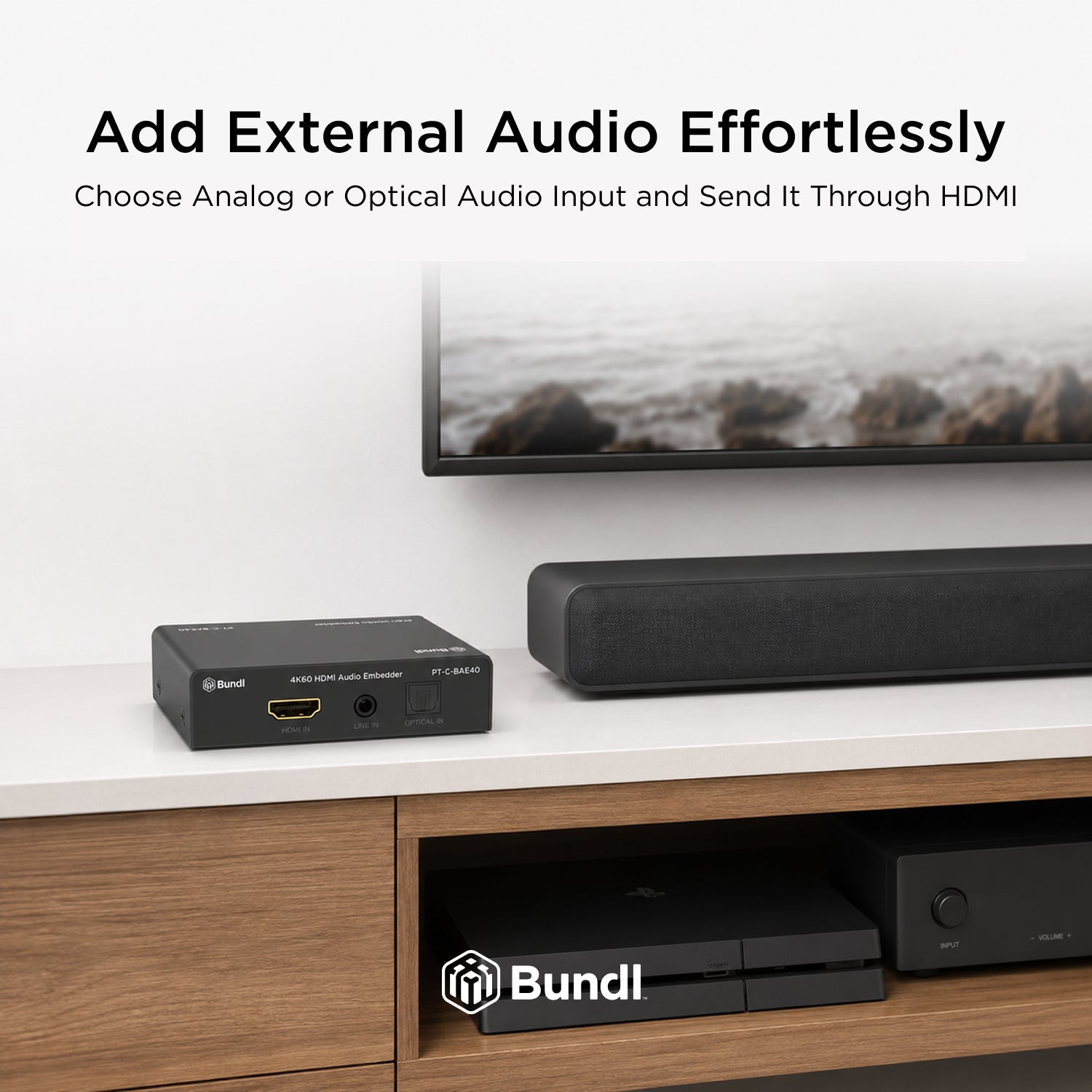

• Integrate External Audio Easily
• Works with Dolby Digital & DTS Formats

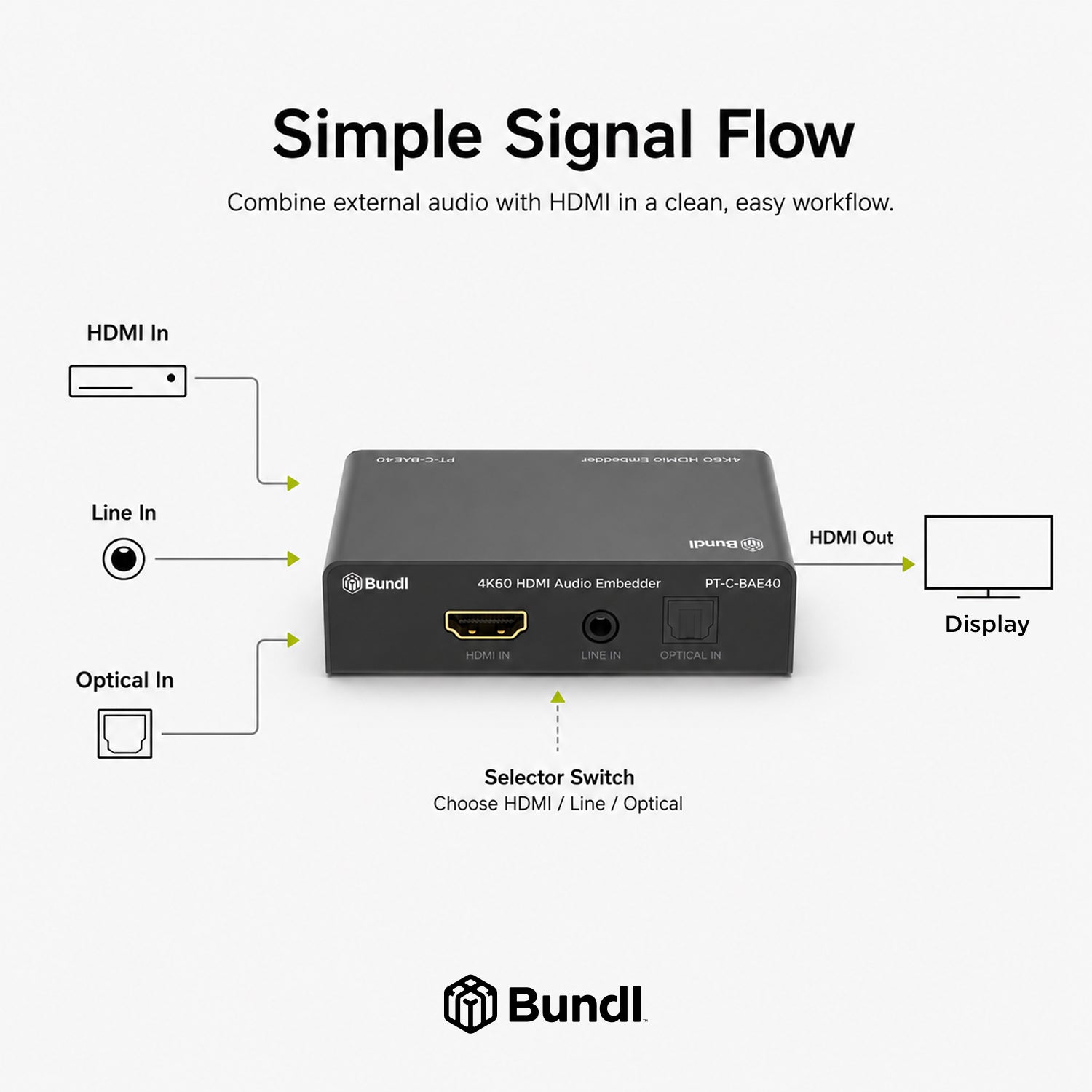

• Simple Source Selector Switch

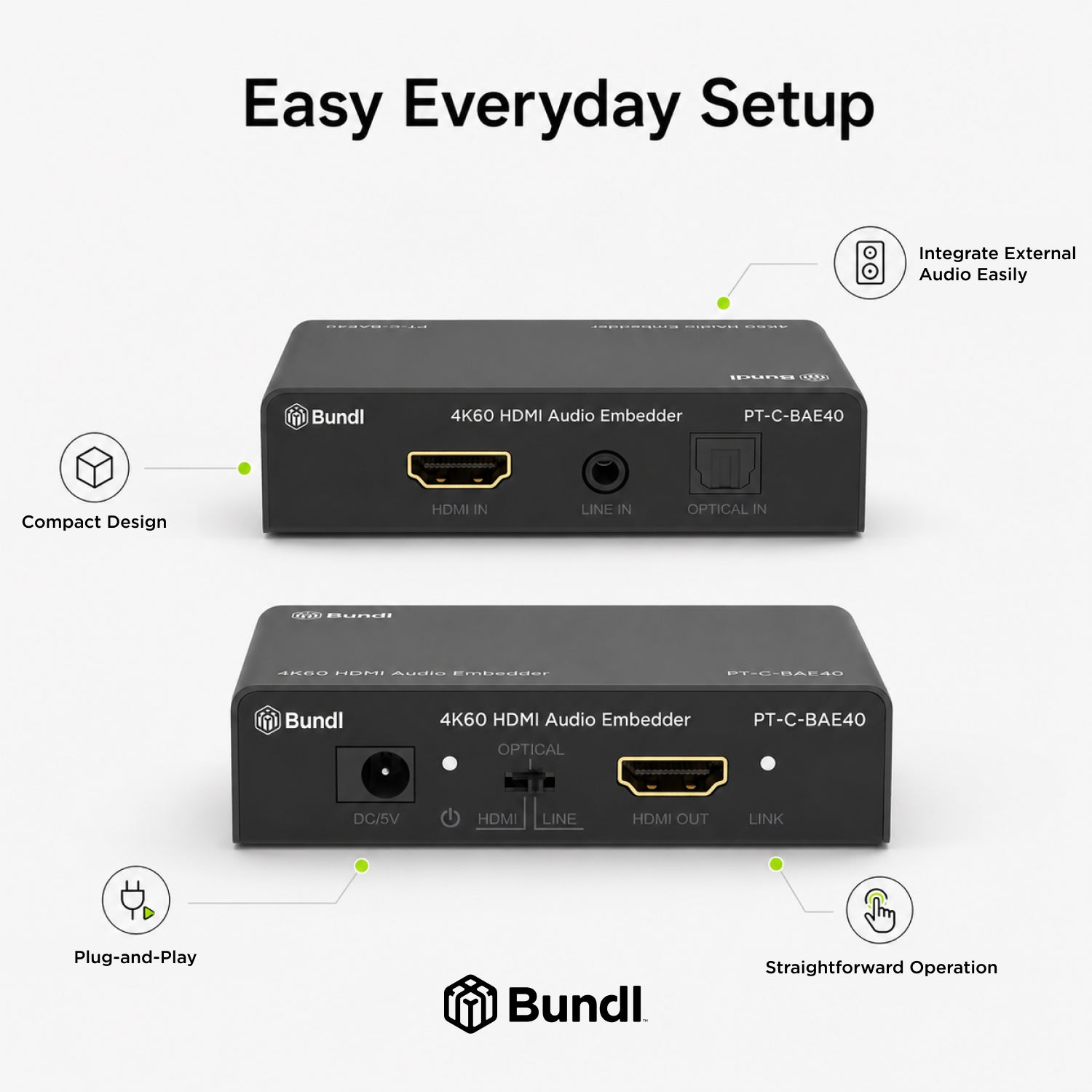

• Compact, Plug-and-Play Setup
Specifications
Standards & Compliance
|
|
| Signal Standards |
HDMI 2.0 |
| HDCP |
HDCP 2.2, HDCP 1.4
|
| Regulatory Certifications |
CE, FCC, RoHS, UL
|
Connector Types
|
|
| HDMI Inputs |
1 × HDMI IN (Type A, 19-pin female) |
| HDMI Outputs |
1 × HDMI OUT (Type A, 19-pin female) |
| Toslink (Optical Square Plug) |
Yes |
| Audio Outputs |
Analog (L/R TRS, 3.5mm jack) |
Performance
|
|
| Max Video Resolution |
4K60 (4:4:4) |
| Video Bandwidth |
18 Gbps |
| Color Space |
YUV |
| Color Depth |
8‑bit, 10‑bit, 12‑bit
|
| Dynamic Metadata Support |
HDR10+, HDR10, HDR, Dolby Vision
|
| MTBF |
50,000 hours |
|
HDMI Audio Format
|
Bitstream, LPCM, DTS-HD Master Audio, Dolby TrueHD
|
| Optical Audio Format |
LPCM 2 Ch, Dolby Digital 2.0/5.1 Ch, DTS 2.0/5.1 Ch
|
| Analog Audio Format |
PCM 2.0 Ch |
| ESD Protection |
EN61000-4-2 Standard, Human body model (+8kV)
|
Power
|
|
| Power Input |
AC 100 - 240V 50/60Hz |
| Power Supply |
DC 5V/2.5A |
| Power Consumption |
5W (max) |
Environment
|
|
| Operating Temperature |
32 to 158°F / 0 to 70°C |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
| Relative Humidity |
5 to 90% RH (no condensation) |
Enclosure
|
|
| Product Dimensions (W × D × H) |
8.7 in × 3.9 in × 1.2 in (88mm × 59.5mm × 23mm) |
| Weight |
0.28 lbs (126g) |
Warranty
|
|
| Parts |
1 year |
| Labor |
1 year |
