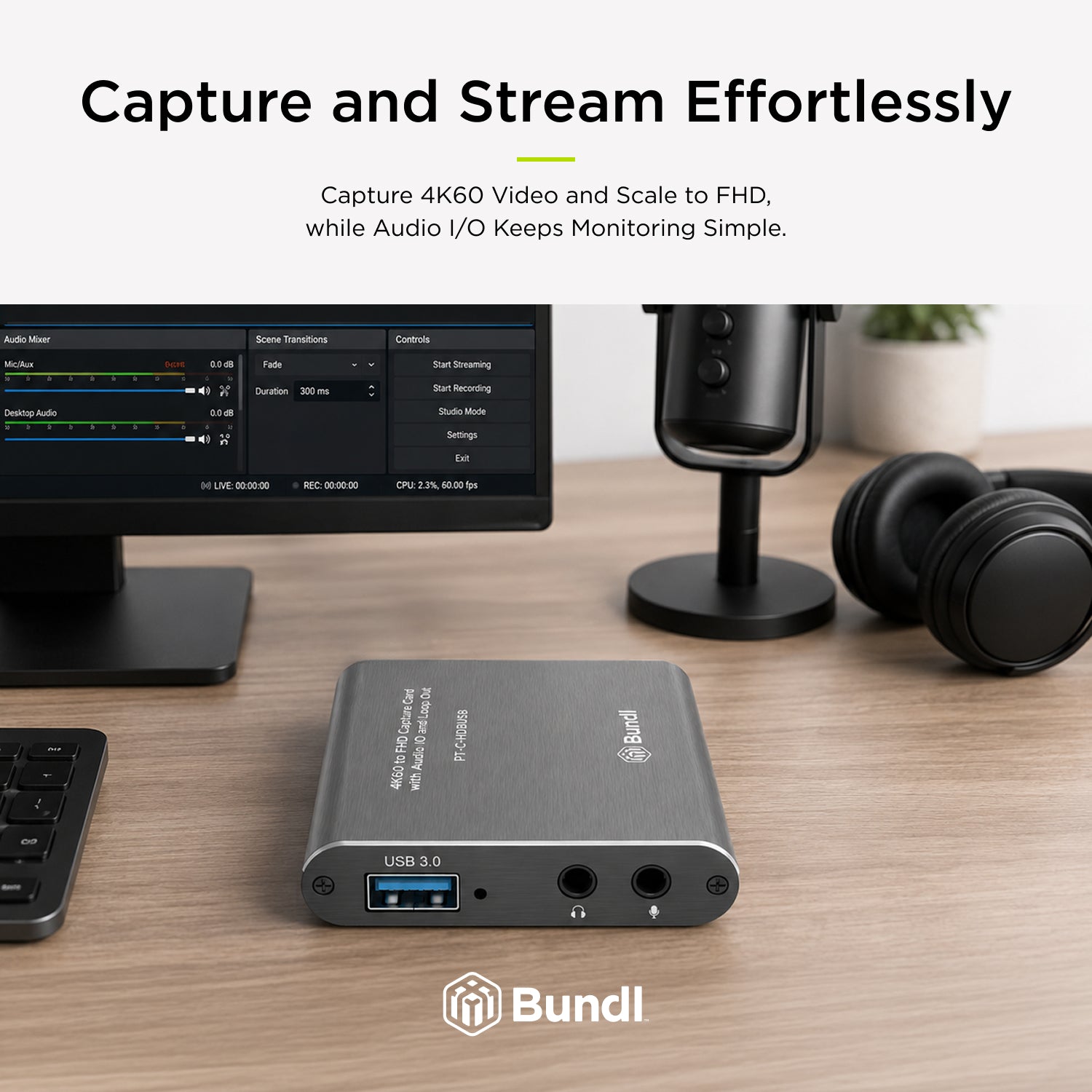

Capture and stream your content effortlessly with the 4K60 to FHD Capture Card with Audio IO and Loop Out, designed for smooth, high-resolution recording and live broadcasting. With simple plug-and-play connectivity, you can quickly capture video to OBS, Broadcaster, VLC, and other popular software without complex setup.

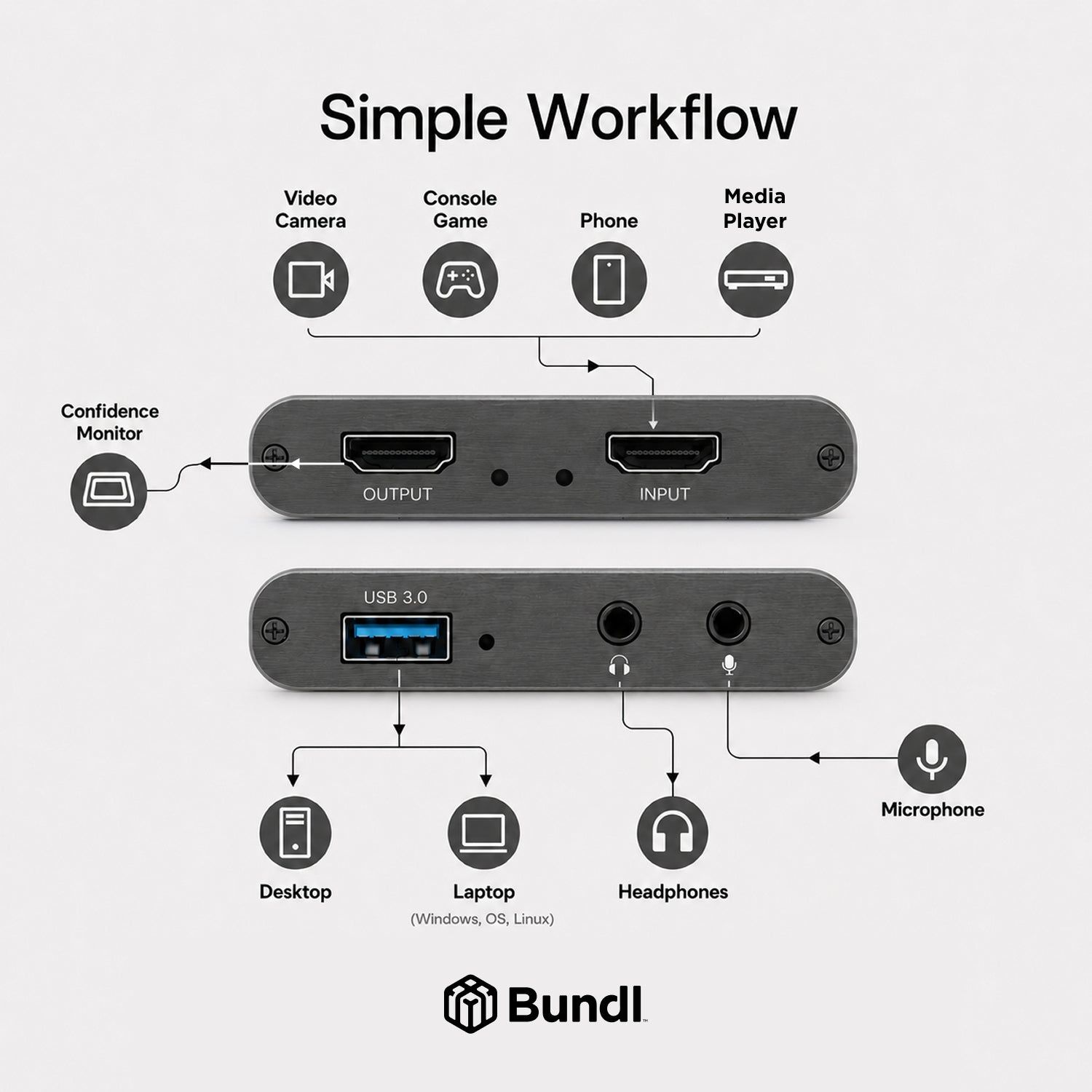

The capture card features HDMI loop-out for confidence monitoring of your input, stereo audio output for local monitoring, and a dedicated microphone input, making it ideal for podcasting, streaming, or recording gameplay and presentations. Video is captured at 4K60 and scaled to FHD for reliable, high-quality results.
Compact, intuitive, and ready to use out of the box, the 4K60 to FHD 1080P60 Capture Card keeps your workflow streamlined and professional, giving you complete control over both video and audio for any production or live stream.
Key Features
• Capture 4K60 Video (converted to 1080P60) to Your Computer

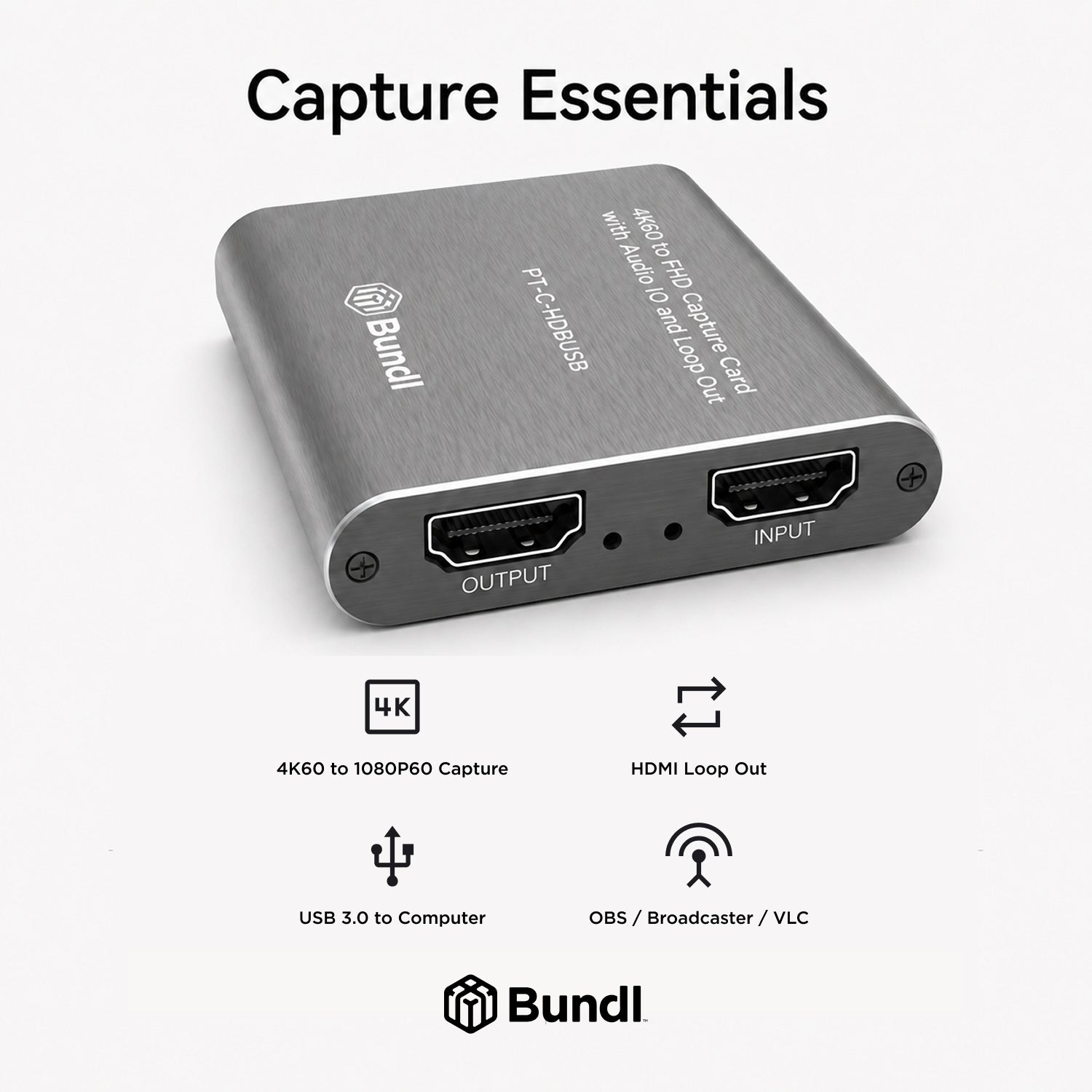

• Monitor Your Input with HDMI Loop Out

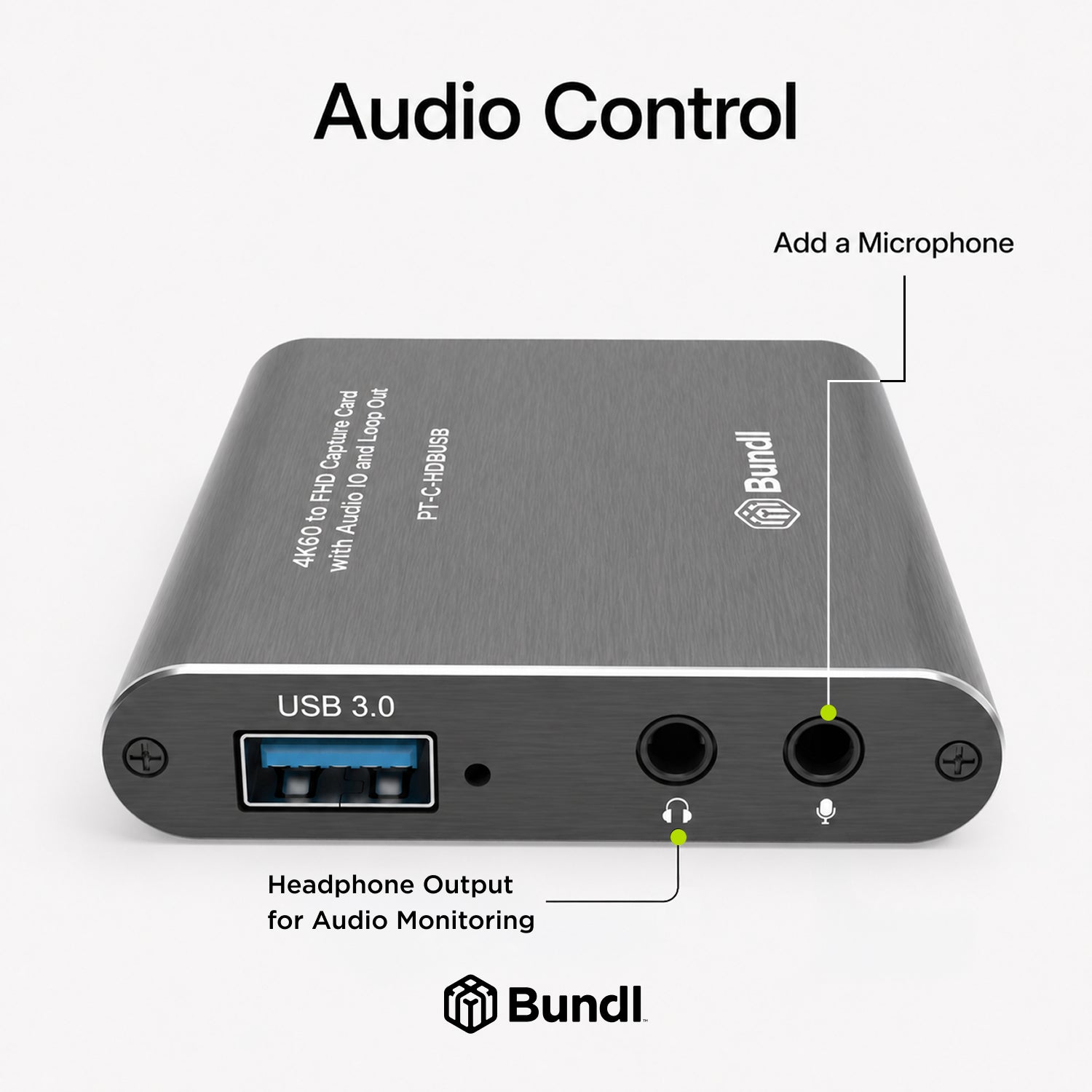

• Add a Microphone for Streaming or Recording
• Listen with Built-In Headphone Output
• Compatible with All Popular Capture Software

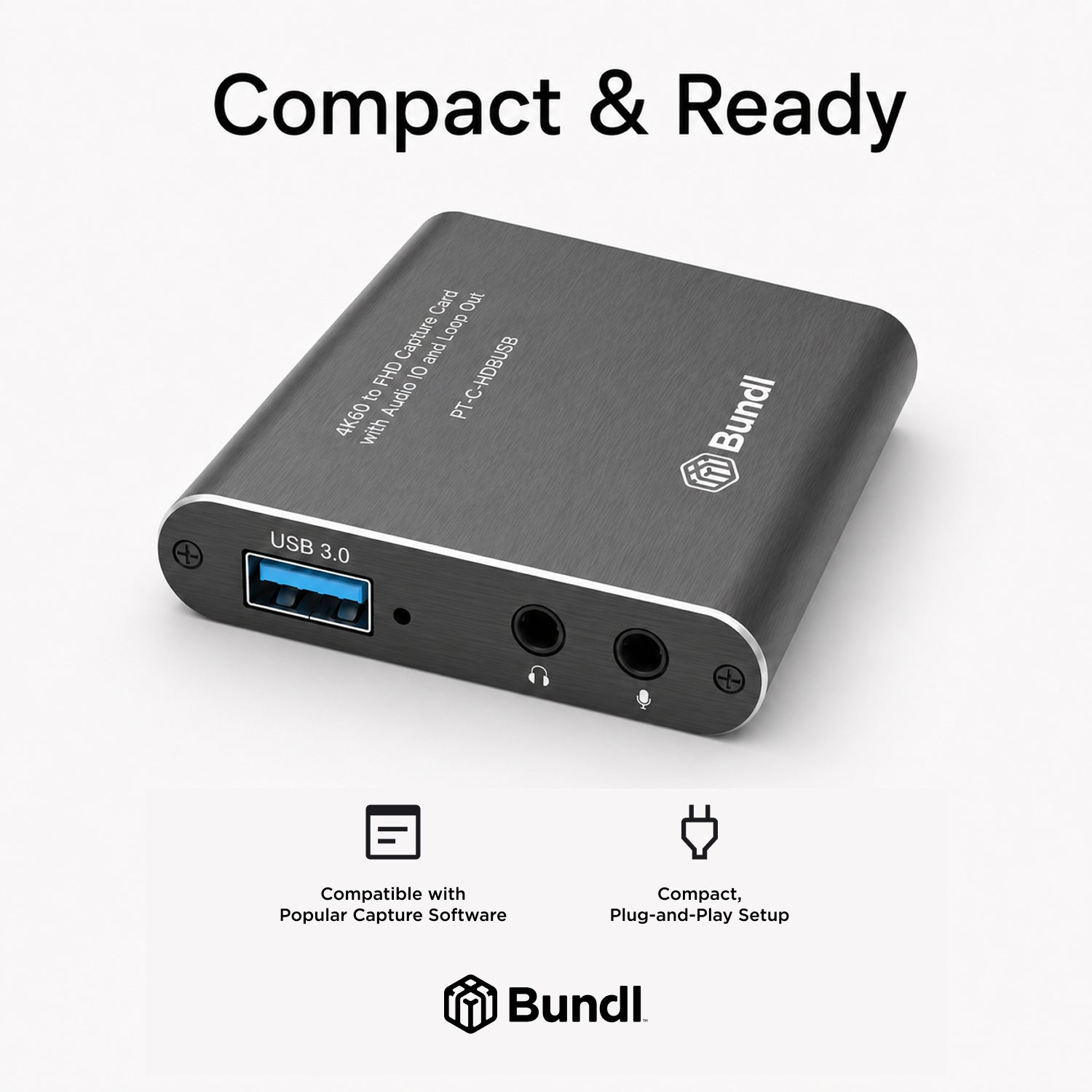

• Compact, Plug-and-Play Setup
Specifications
Standards & Compliance
|
|
| Signal Standards |
USB 3.0, HDMI 1.4, HDMI 1.3
|
| Regulatory Certifications |
CE, FCC, RoHS
|
Connector Types
|
|
| HDMI Inputs |
1 × HDMI IN (Type A, 19-pin female) |
| HDMI Outputs |
1 × HDMI OUT (Type A, 19-pin female) |
| USB Output |
USB-A |
| Audio Inputs |
"Analog (L/R TRS, 3.5mm jack)" |
| Audio Outputs |
"Analog (L/R TRS, 3.5mm jack)" |
Performance
|
|
| Max Video Resolution |
4K60 (4:4:4) |
| Video Bandwidth |
18 Gbps |
| Color Space |
RGB, YUV, YPbPr, YCbCr
|
| Color Depth |
8‑bit, 10‑bit, 12‑bit
|
| Dynamic Metadata Support |
HDR10+, HDR10
|
| MTBF |
50,000 hours |
|
HDMI Audio Format
|
Bitstream, Dolby, DTS, DSD, LPCM
|
| ESD Protection |
Human body model (+8kV) |
Power
|
|
| Power Input |
AC 100 - 240V 50/60Hz |
| Power Supply |
DC 12V/2.5A |
| Power Consumption |
4W (max) |
Environment
|
|
| Operating Temperature |
34 to 122°F / 0 to 50℃ |
| Storage Temperature |
34 to 122°F / 0 to 50℃ |
| Relative Humidity |
5 to 90% RH (no condensation) |
Enclosure
|
|
| Product Dimensions (W × D × H) |
5.3 in × 2.3 in × 0.7 in (136mm × 60mm × 17mm) |
| Weight |
0.15 lbs (70g) |
Warranty
|
|
| Parts |
1 year |
| Labor |
1 year |
