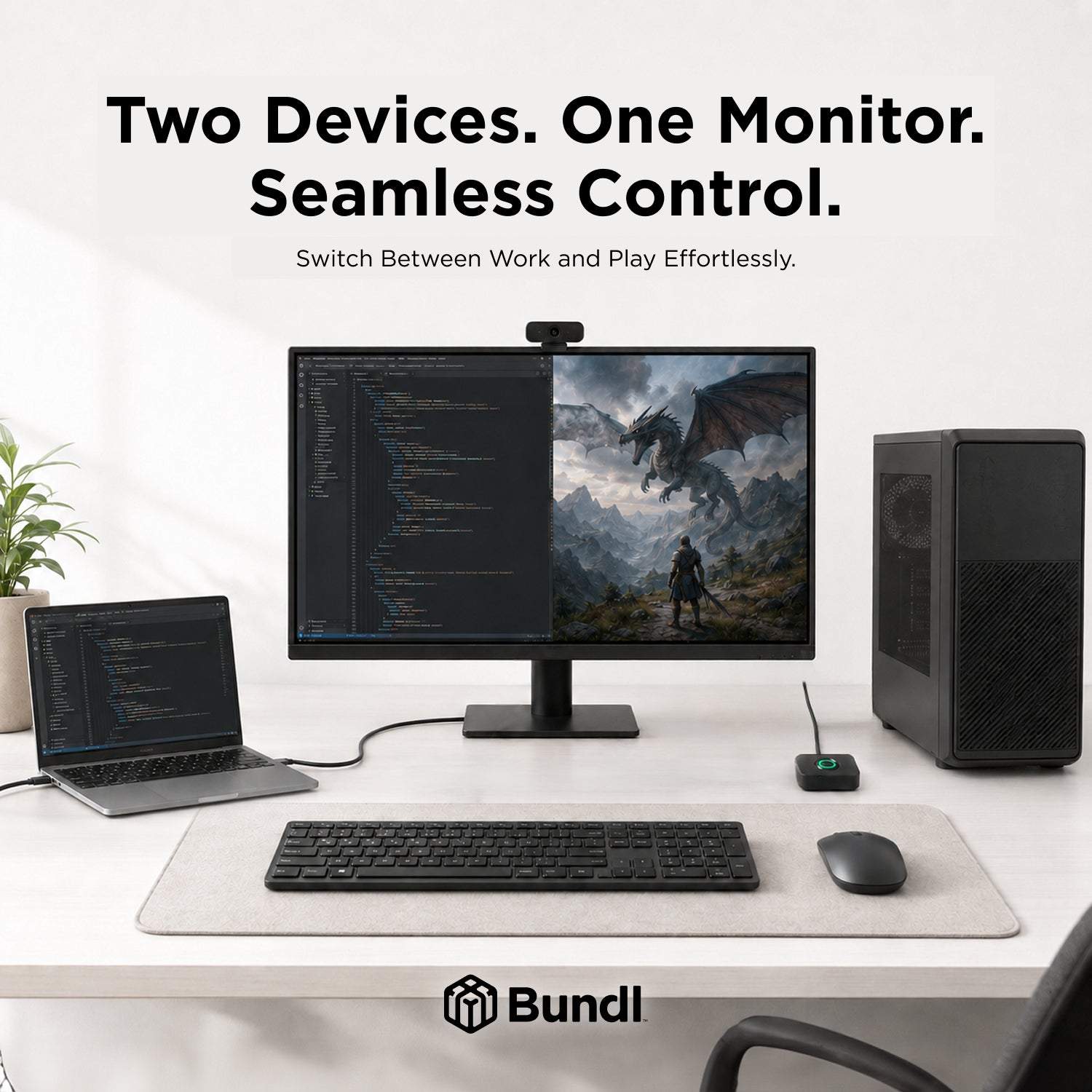

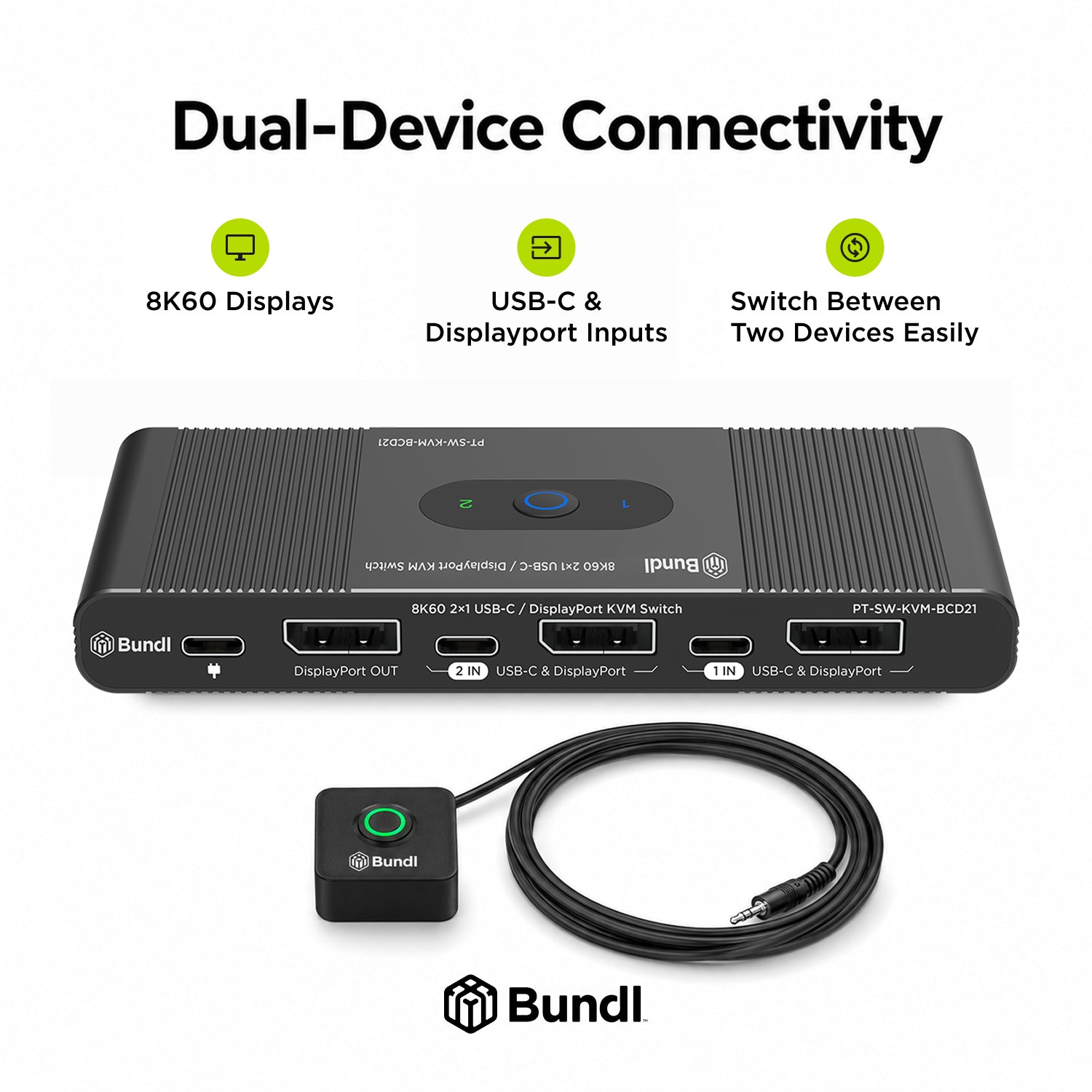

Streamline your workstation or gaming setup with the 8K60 2×1 USB-C / DisplayPort KVM Switch, designed to let a single 8K60 DisplayPort monitor be shared between two devices using USB-C or DisplayPort. It delivers precise 8K60 visuals and smooth motion, keeping both sources ready for work or play without interruption.
Ideal for creative studios, multi-device desktops, and gaming rigs, this 2×1 KVM also enables USB sharing through three USB-A 3.0 ports and one USB-C 3.0 port, allowing keyboards, mouses, and other peripherals to be used across both systems seamlessly.

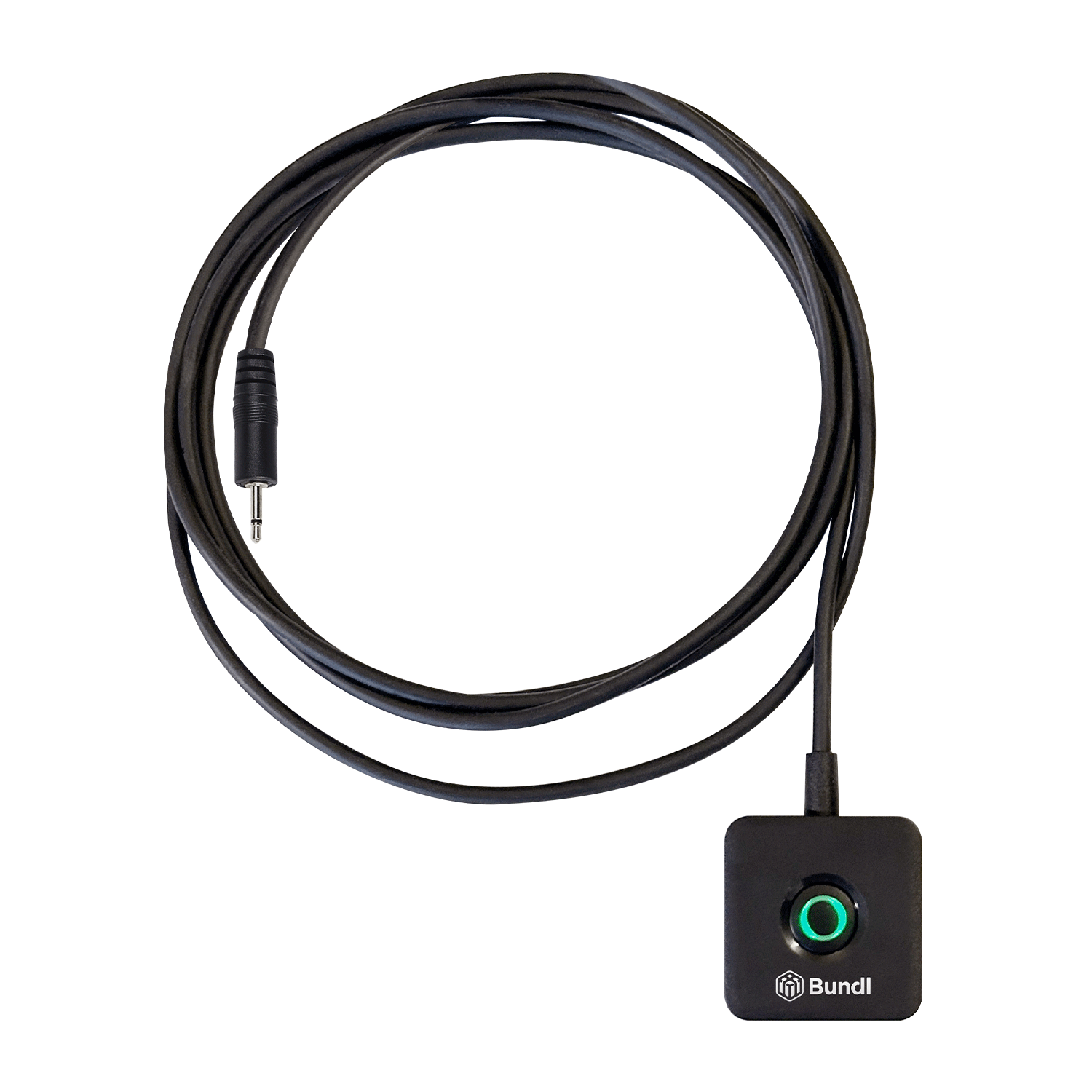

Switching between devices is intuitive – the top-mounted input button and included remote switch provide direct control, while color-coded LED indicators clearly show which source is active. Compact, reliable, and plug-and-play ready, the 8K60 2×1 USB-C / DisplayPort KVM Switch makes high-performance multi-device workflows simple and dependable.

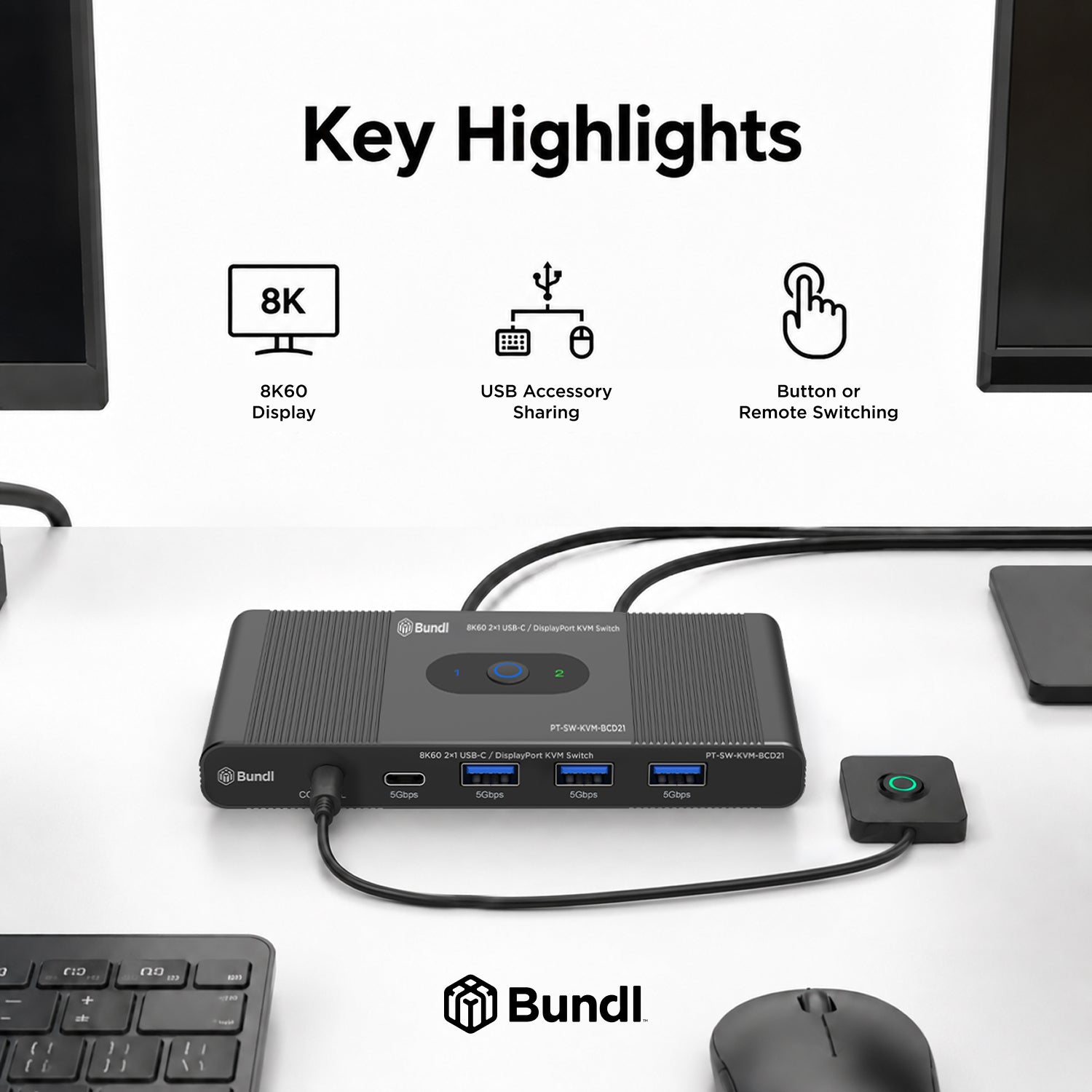

Key Features
• Support for 8K60 Displays
• DisplayPort Output Compatible with HDMI via Adapter Cable
• USB-C & DisplayPort Inputs
• Switch Between Two Devices Easily

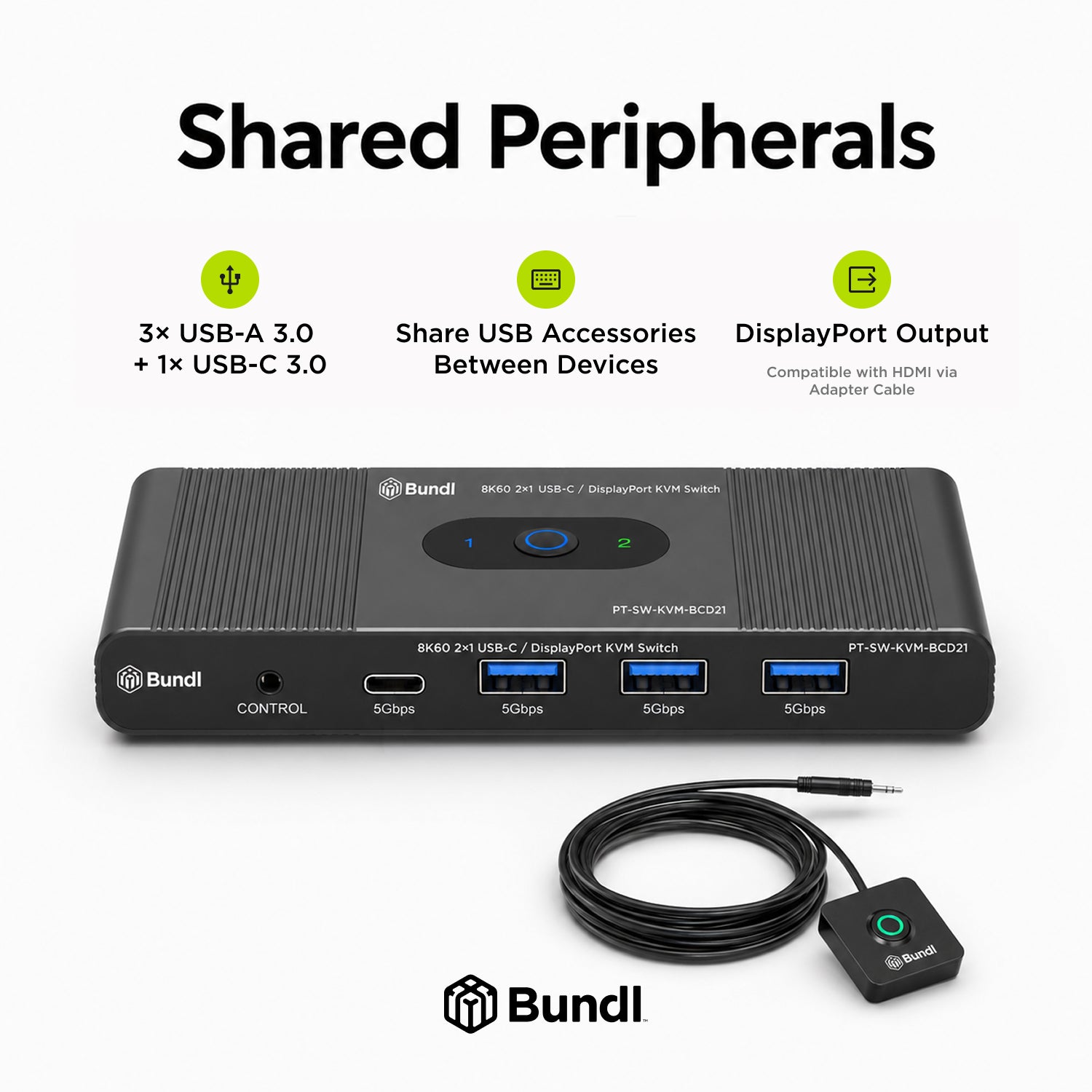

• Share USB Accessories Between Devices

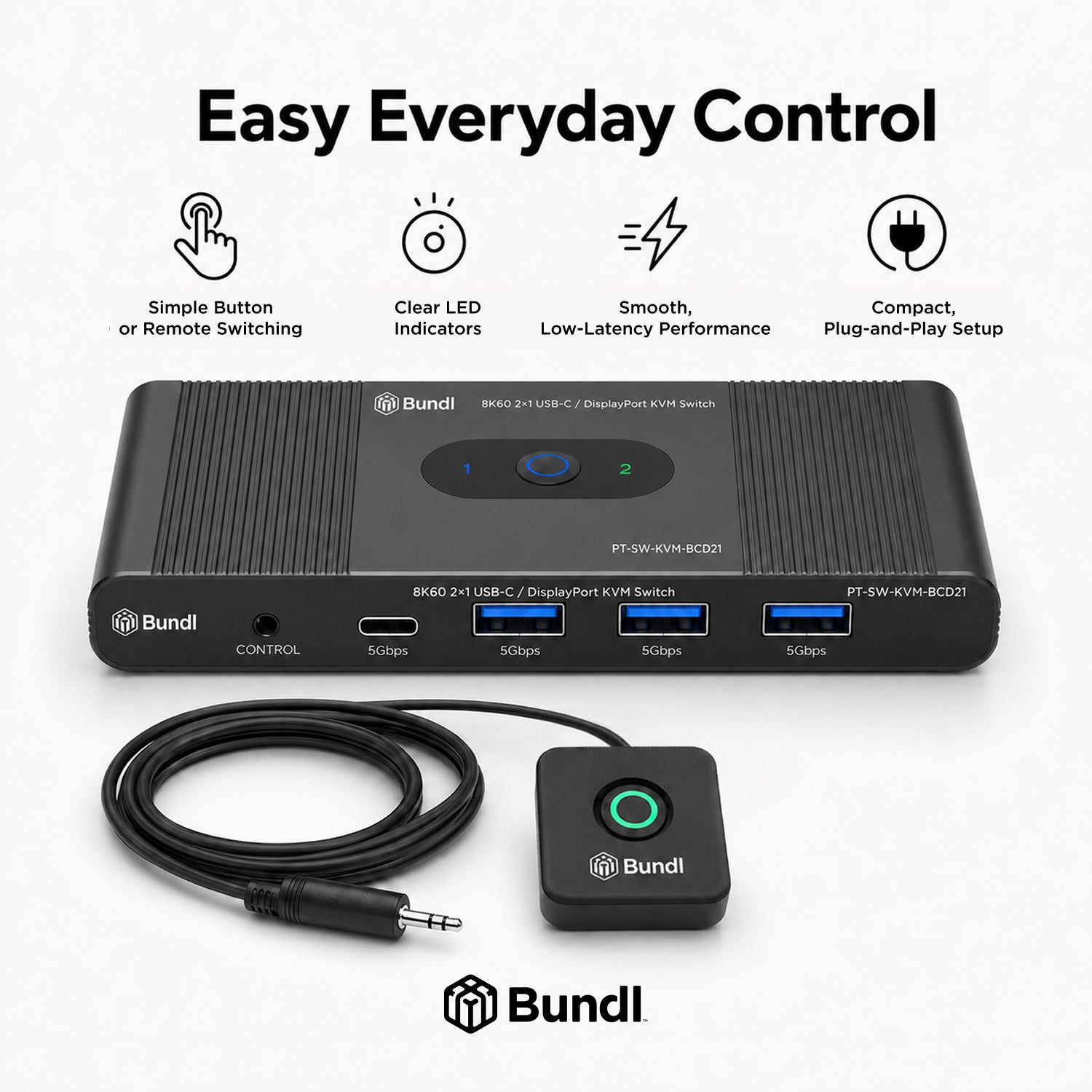

• Simple Button or Remote Switching
• Clear LED Indicators
• Smooth, Lag-Free Performance
• Compact, Plug-and-Play Setup
Specifications
Standards & Compliance
|
|
| Signal Standards |
USB 3.0 |
| Regulatory Certifications |
CE, FCC, RoHS
|

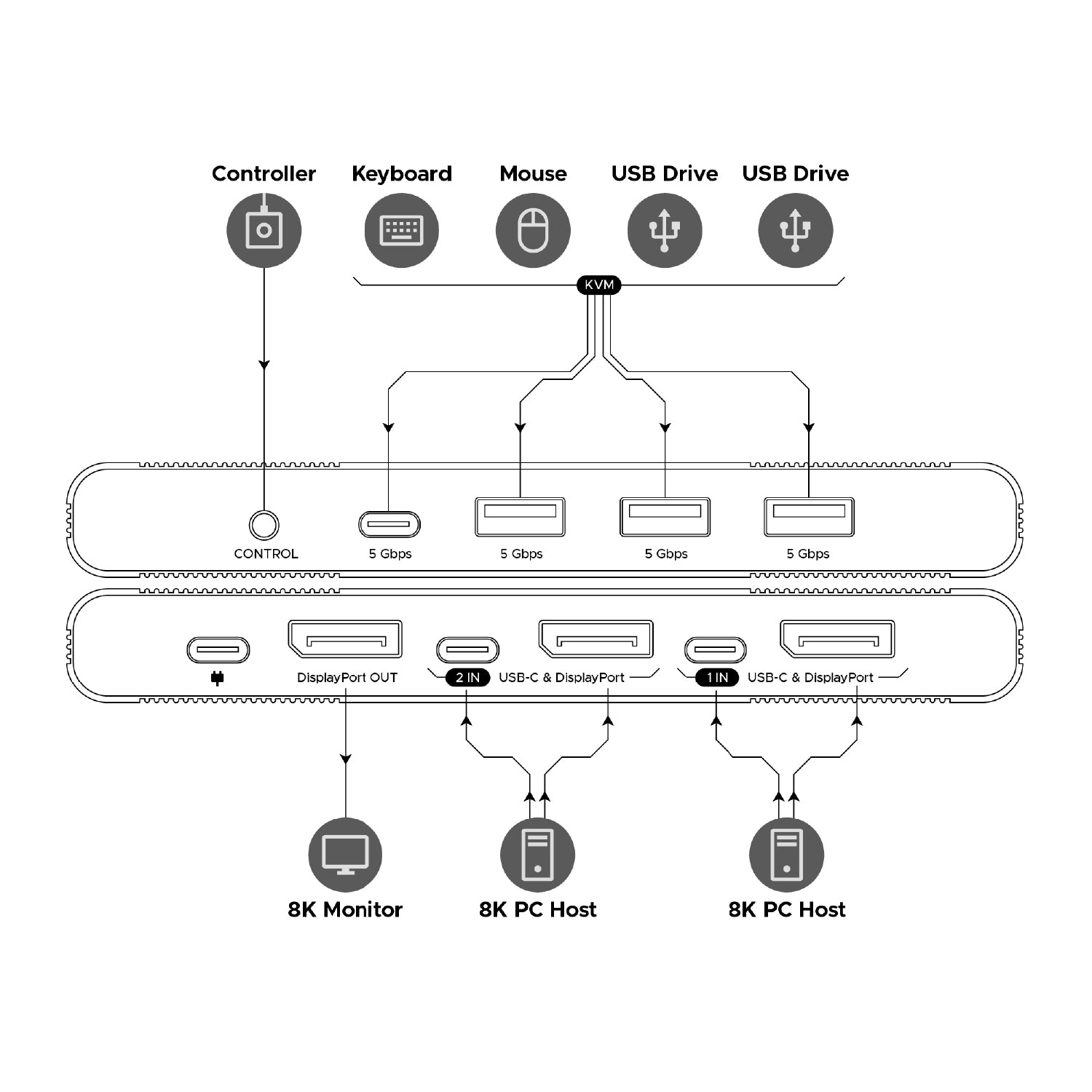

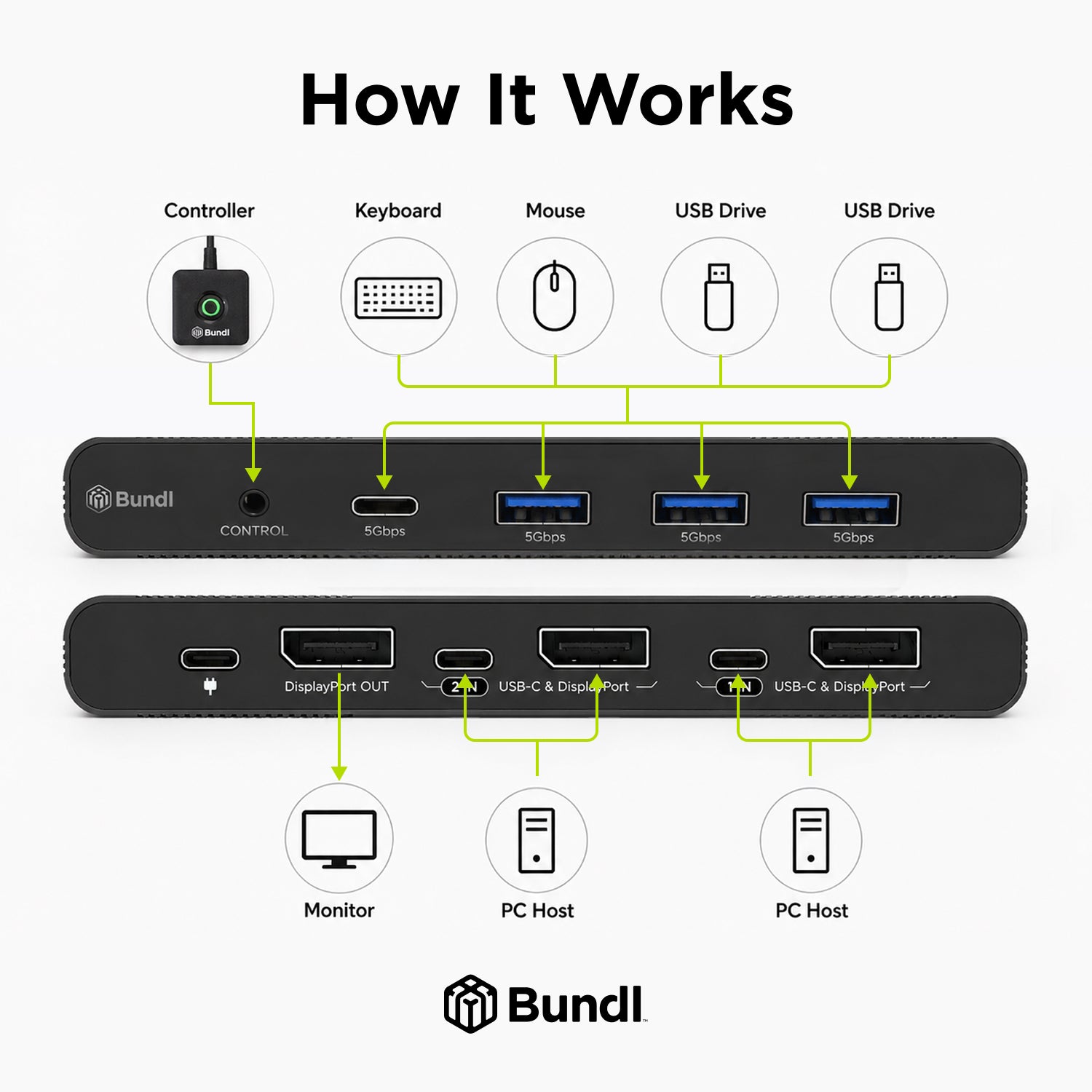

Connector Types
|
|
| USB Input |
2 × USB IN (USB-C) |
| USB Output |
"4 × USB OUT (3 × USB-A, 1 x USB-C)" |
| DisplayPort Input |
2 × DP IN (20-pin female) |
| DisplayPort Output |
1 × DP OUT (20-pin female) |
| Control |
3.5mm jack female connector (proprietary wired remote button) |
Performance
|
|
| Max Video Resolution |
8K60 (4:4:4) |
| Video Bandwidth |
32.4 Gbps |
| Color Space |
RGB |
| Color Depth |
12‑bit, 10‑bit
|
| Dynamic Metadata Support |
HDR10+, HDR10, Dolby Vision, HLG
|
| MTBF |
50,000 hours |
|
USB Audio Format
|
PCM, Bitstream, Dolby, DTS, DSD
|
| ESD Protection |
EN61000-4-2 Standard |
Communications & Control
|
|
| Control Ports |
Proprietary wired remote button |
| Control Connector Type |
3.5mm TRS |
Power
|
|
| Power Input |
USB-C power adapter (not included) |
| Power Supply |
DC 5V/2A |
| Power Consumption |
4W (max) |
Environment
|
|
| Operating Temperature |
32 to 122°F / 0 to 50°C |
| Storage Temperature |
14 to 140°F / 10 to 60°C |
| Relative Humidity |
5 to 80% RH (no condensation) |
Enclosure
|
|
| Product Dimensions (W × D × H) |
8.7 in × 3.9 in × 1.2 in (220mm × 100mm × 30mm) |
| Weight |
0.34 lbs (152g) |
Warranty
|
|
| Parts |
1 year |
| Labor |
1 year |
