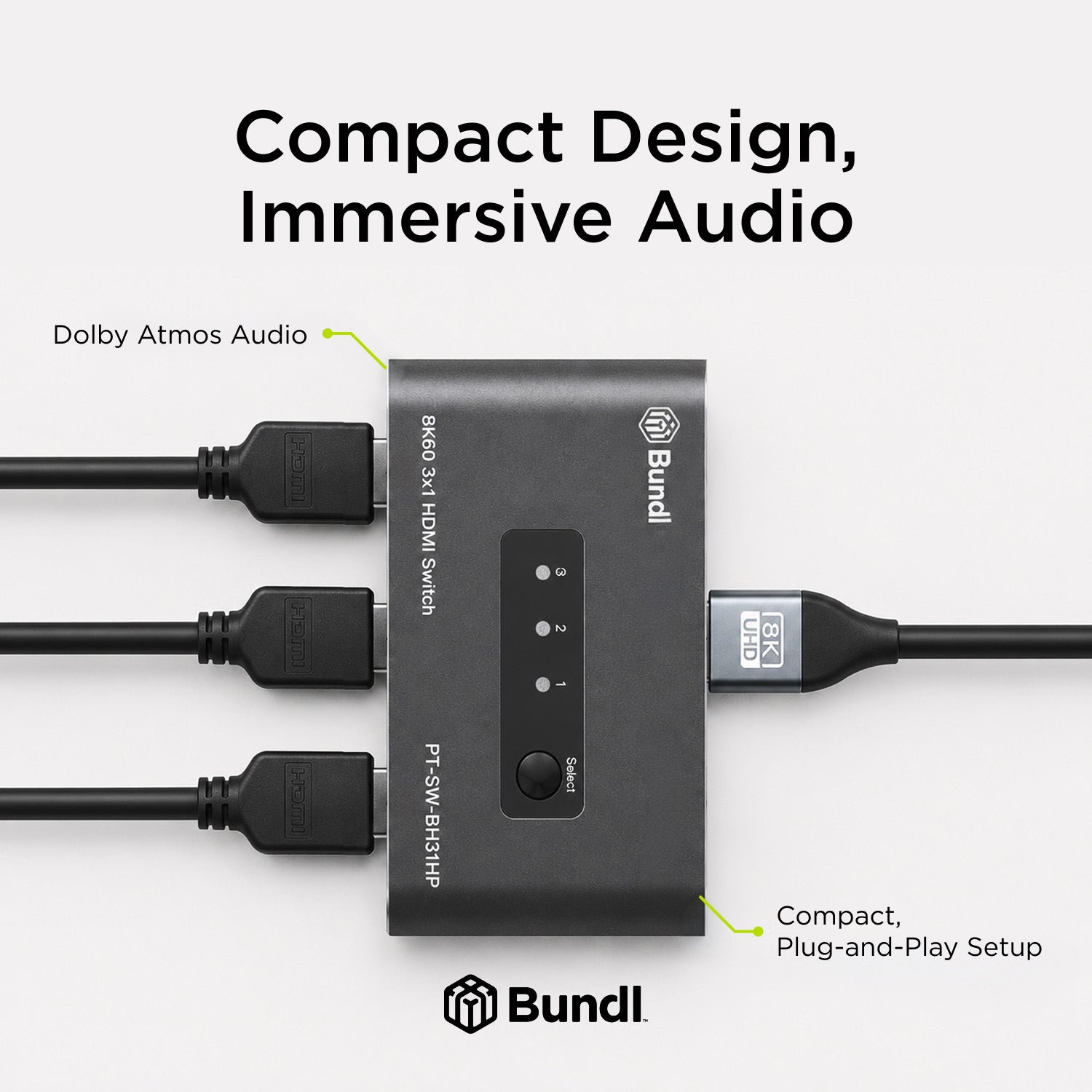

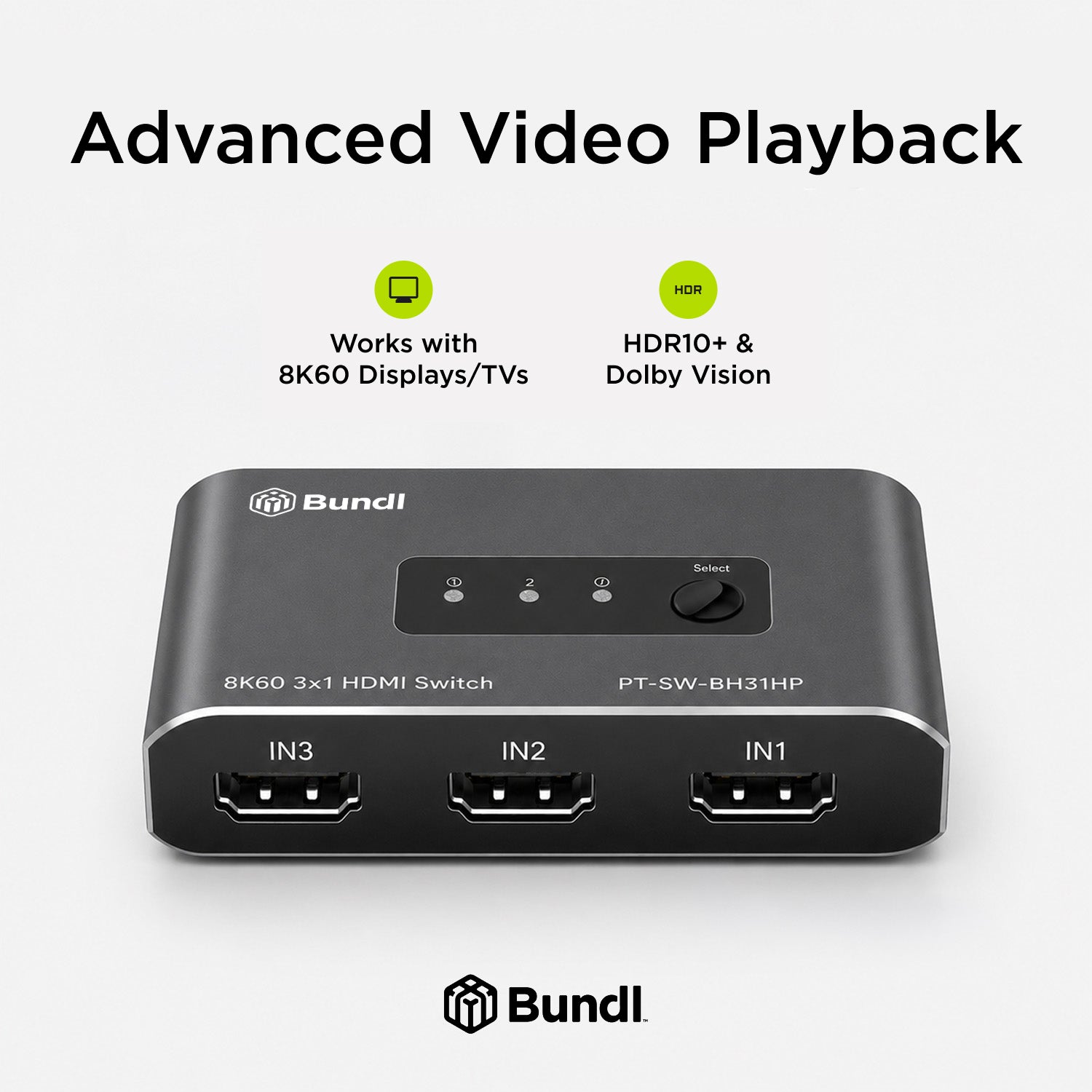

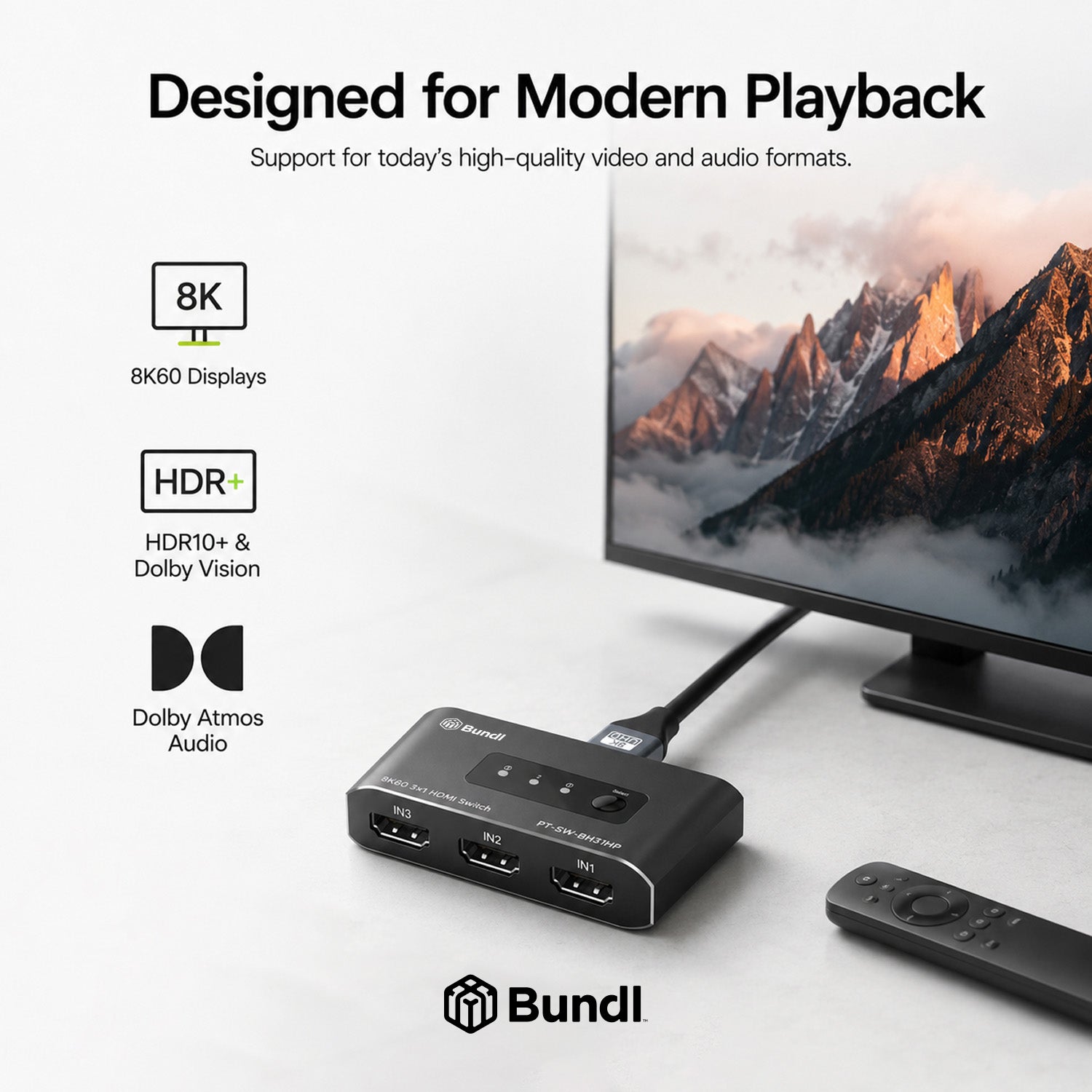

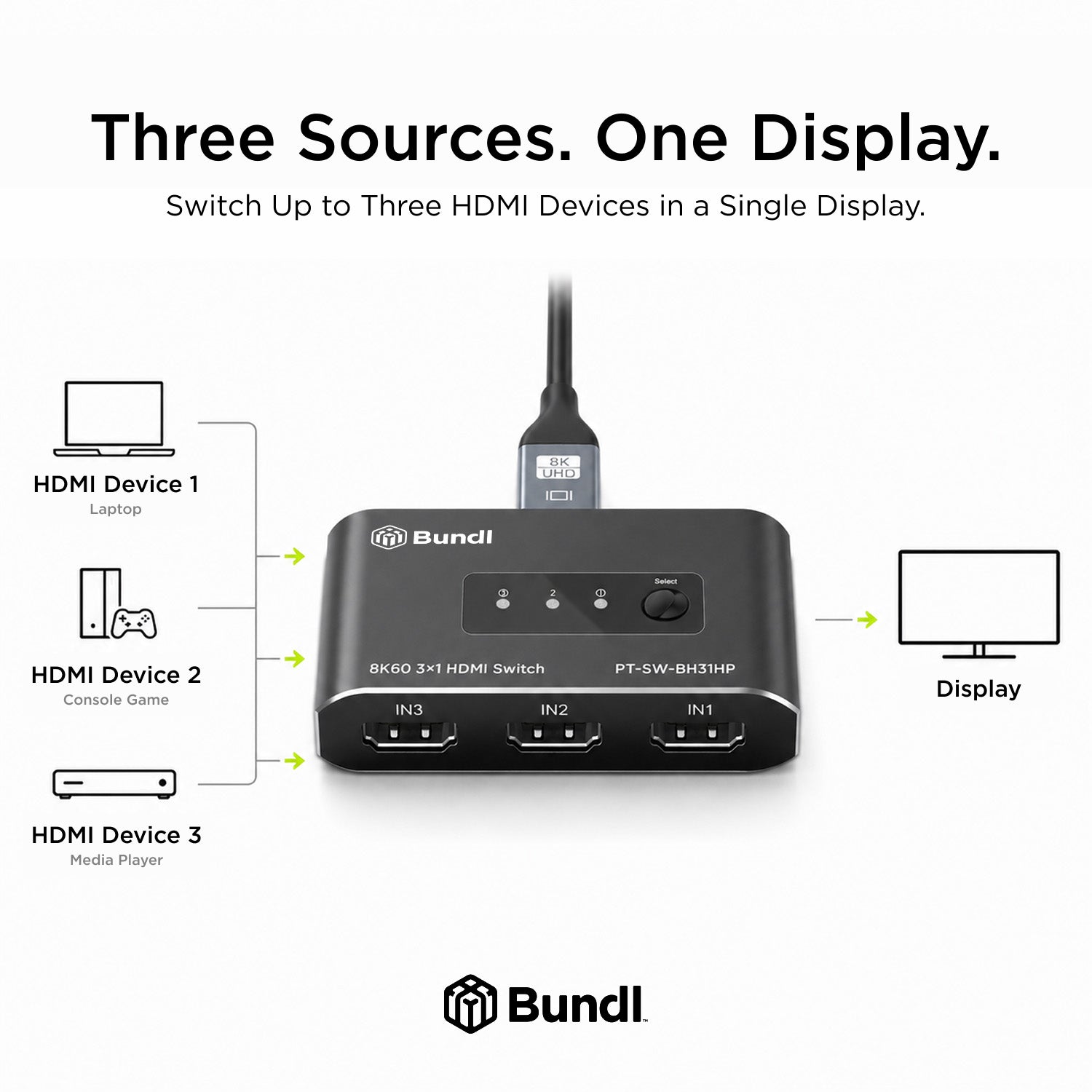

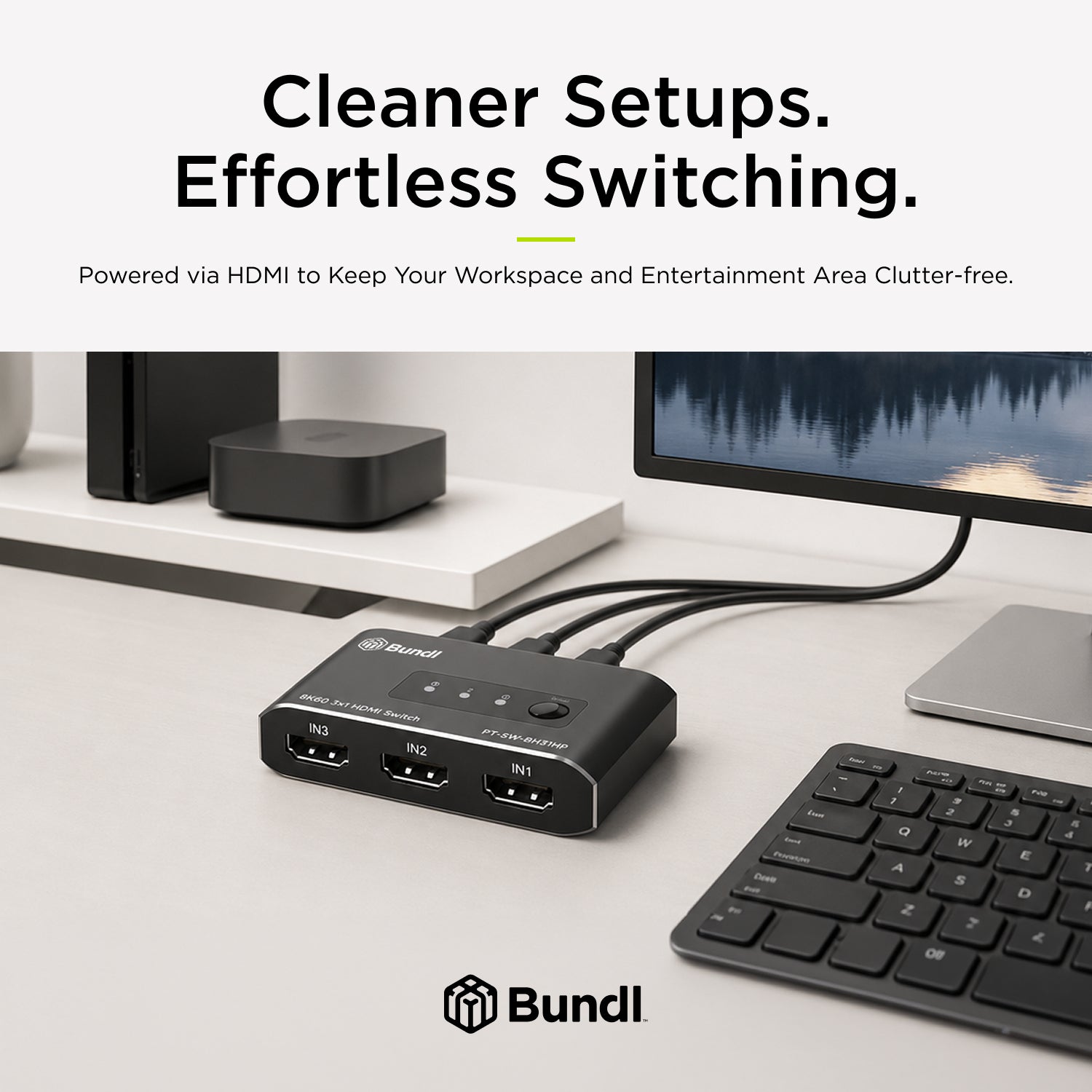

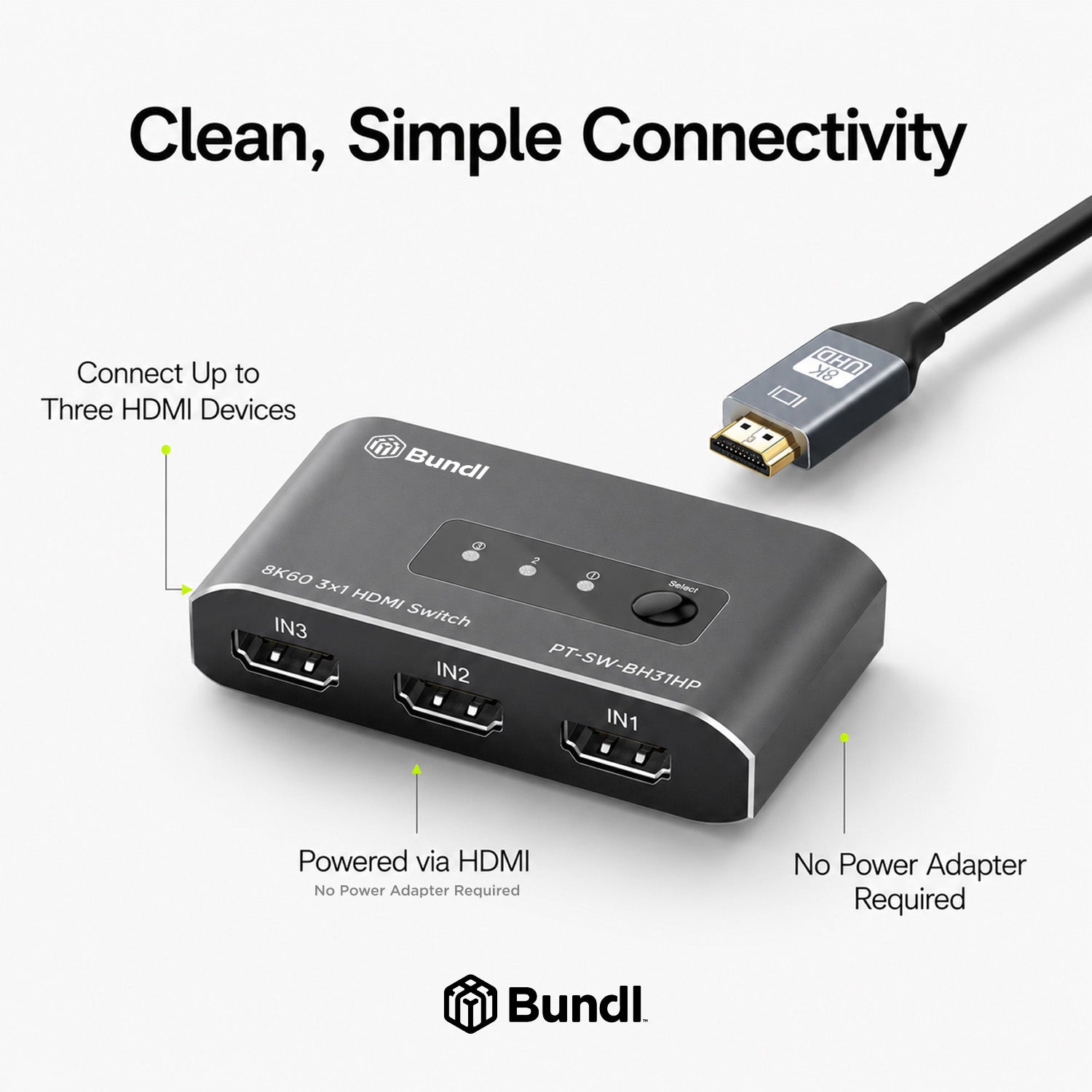

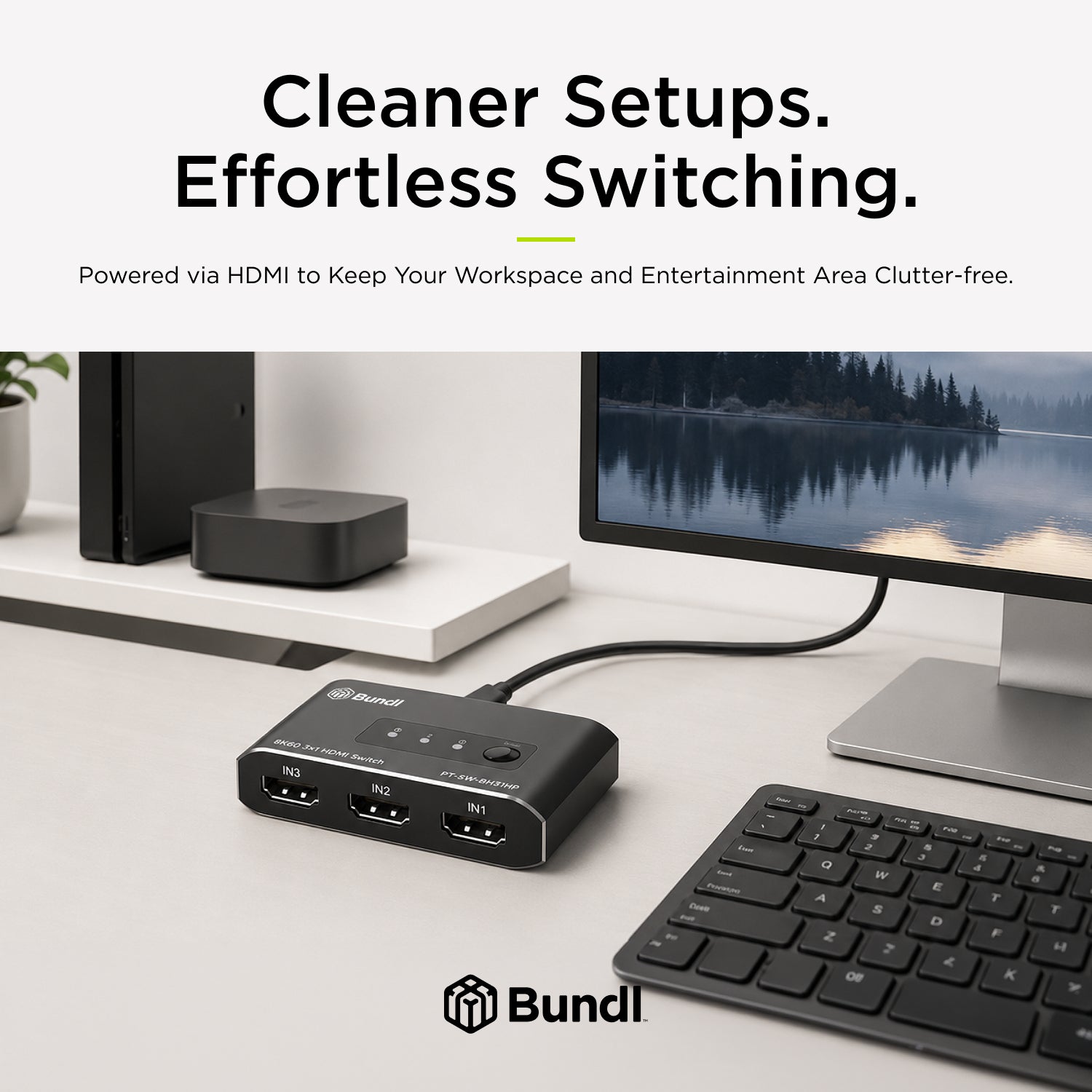

Get cleaner setups and effortless switching with the 8K60 3×1 HDMI Switch, designed to connect up to three HDMI devices to a single display with full support for today’s highest-quality video and audio formats. Power is supplied through any connected HDMI source, eliminating the need for a separate power adapter and keeping your workspace or entertainment area clutter-free.
Enjoy stunning clarity and vibrant color with support for 8K60, HDR, HDR10, HDR10+, and Dolby Vision – plus immersive surround sound formats such as Dolby Atmos. Whether you’re gaming, streaming, or watching movies, every source delivers smooth, detailed, and vivid playback.
Compact, reliable, and ideal for tight spaces or setups without accessible power, the 8K60 3×1 HDMI Switch keeps your devices connected and ready with clean cable management and easy plug-and-play operation.
Key Features
• Support for 8K60 Displays
• Connect Up to Three HDMI Devices
• HDR10+ & Dolby Vision
• Dolby Atmos Audio
• Powered via HDMI (no power adapter required)
• Compact, Plug-and-Play Setup
Specifications
Standards & Compliance
|
|
| Signal Standards |
HDMI 2.1 |
| HDCP |
HDCP 2.3 |
| Regulatory Certifications |
CE, FCC, RoHS
|
Connector Types
|
|
| HDMI Inputs |
3 × HDMI IN (Type A, 19-pin female) |
| HDMI Outputs |
1 × HDMI OUT (Type A, 19-pin female) |
Performance
|
|
| Max Video Resolution |
8K60 (4:4:4) |
| Color Space |
RGB |
| Color Depth |
10‑bit, 12‑bit
|
| Dynamic Metadata Support |
HDR10, HDR10+, Dolby Vision, HLG
|
| MTBF |
60,000 – 120,000 hours |
|
HDMI Audio Format
|
PCM, Bitstream, Dolby, DTS, DSD
|
| ESD Protection |
IEC 61000‑4‑2 (±4 kV) |
Communications & Control
|
|
| Control Ports |
Connected toggle button |
Power
|
|
| Power Input |
19-pin HDMI connector |
| Power Supply |
DC 5V/2A |
| Power Consumption |
2W (max) |
Environment
|
|
| Operating Temperature |
5 to 131°F / -15 to 55°C |
| Storage Temperature |
5 to 131°F / -15 to 55°C |
| Relative Humidity |
5 to 80% RH (no condensation) |
Enclosure
|
|
| Product Dimensions (W × D × H) |
3.4 in × 1.9 in × 0.87 in (87mm × 47mm × 22mm) |
| Weight |
0.42 lbs (190g) |
Warranty
|
|
| Parts |
1 year |
| Labor |
1 year |
