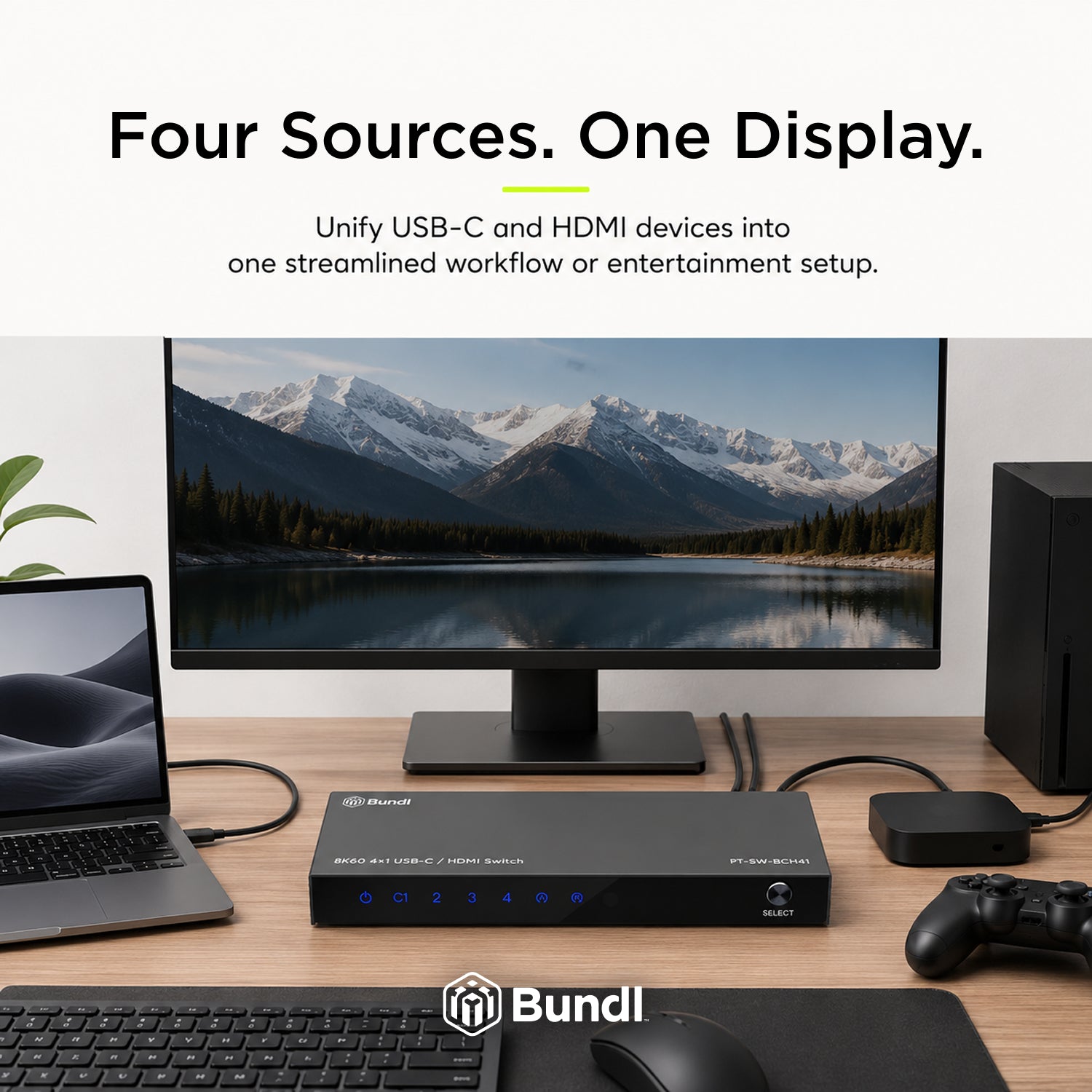

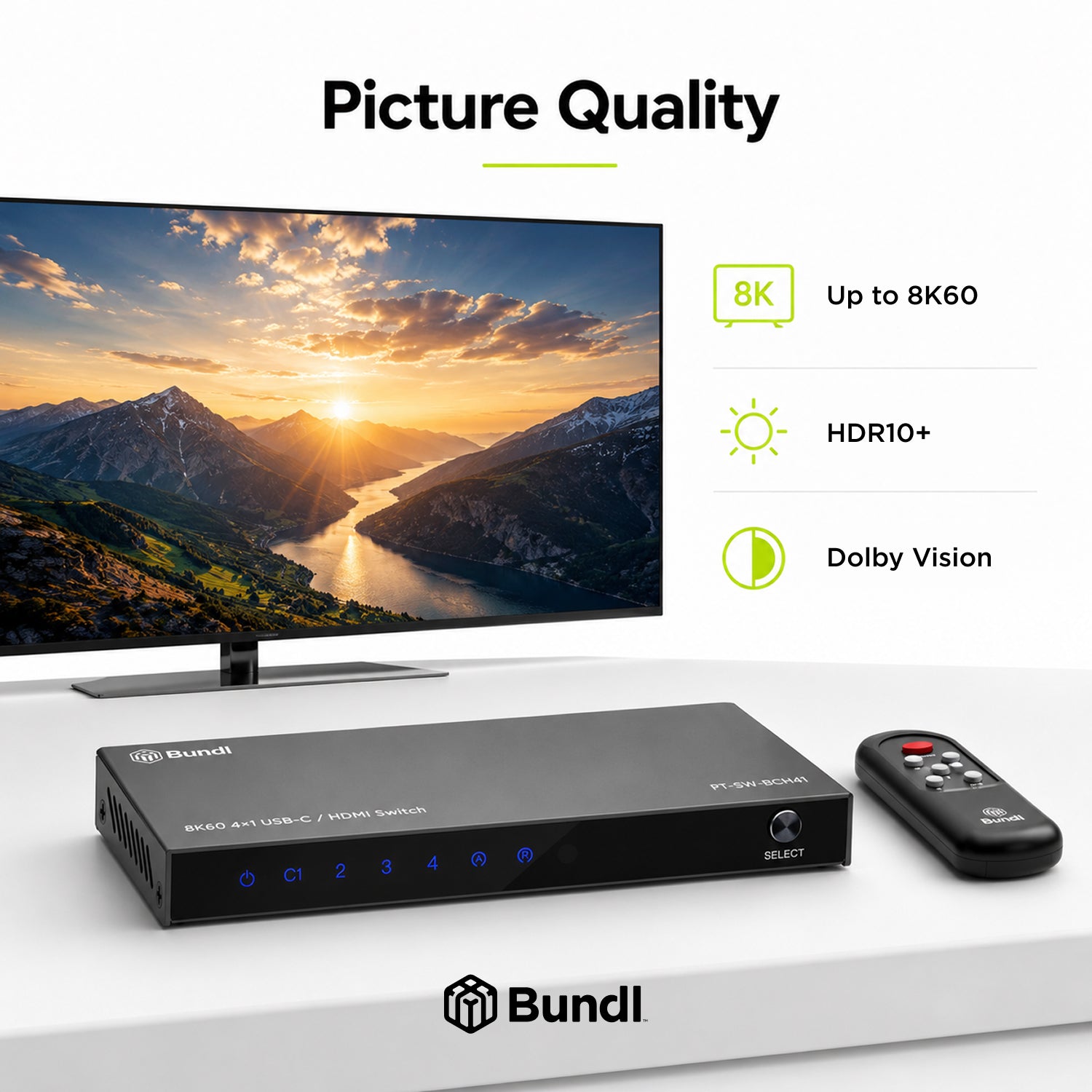

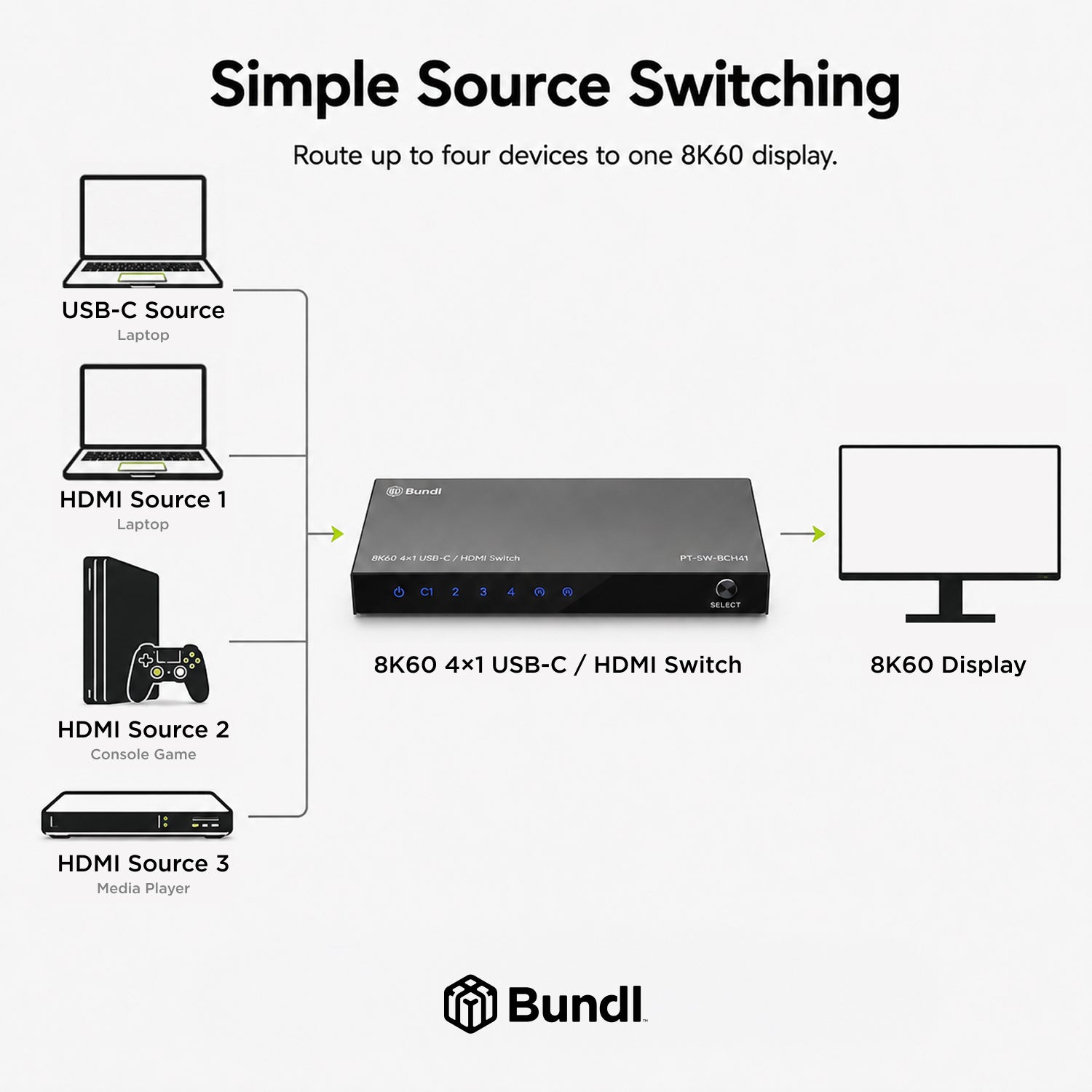

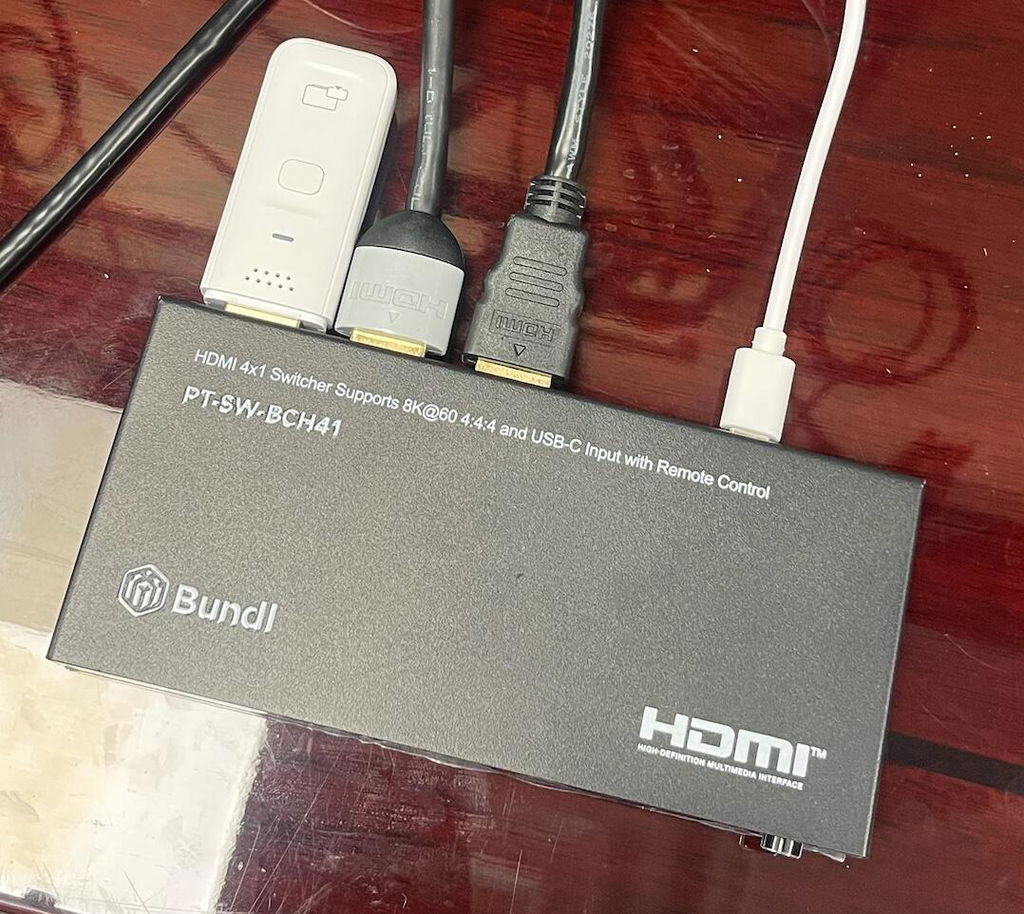

Connect multiple devices to a single 8K60 display with the 8K60 4×1 USB-C / HDMI Switch, offering flexible, high-resolution connectivity for workstations, gaming setups, and multi-device entertainment spaces. One USB-C input and three HDMI inputs support HDR10+ and Dolby Vision, delivering sharp, vibrant visuals and smooth motion across all sources.![]()

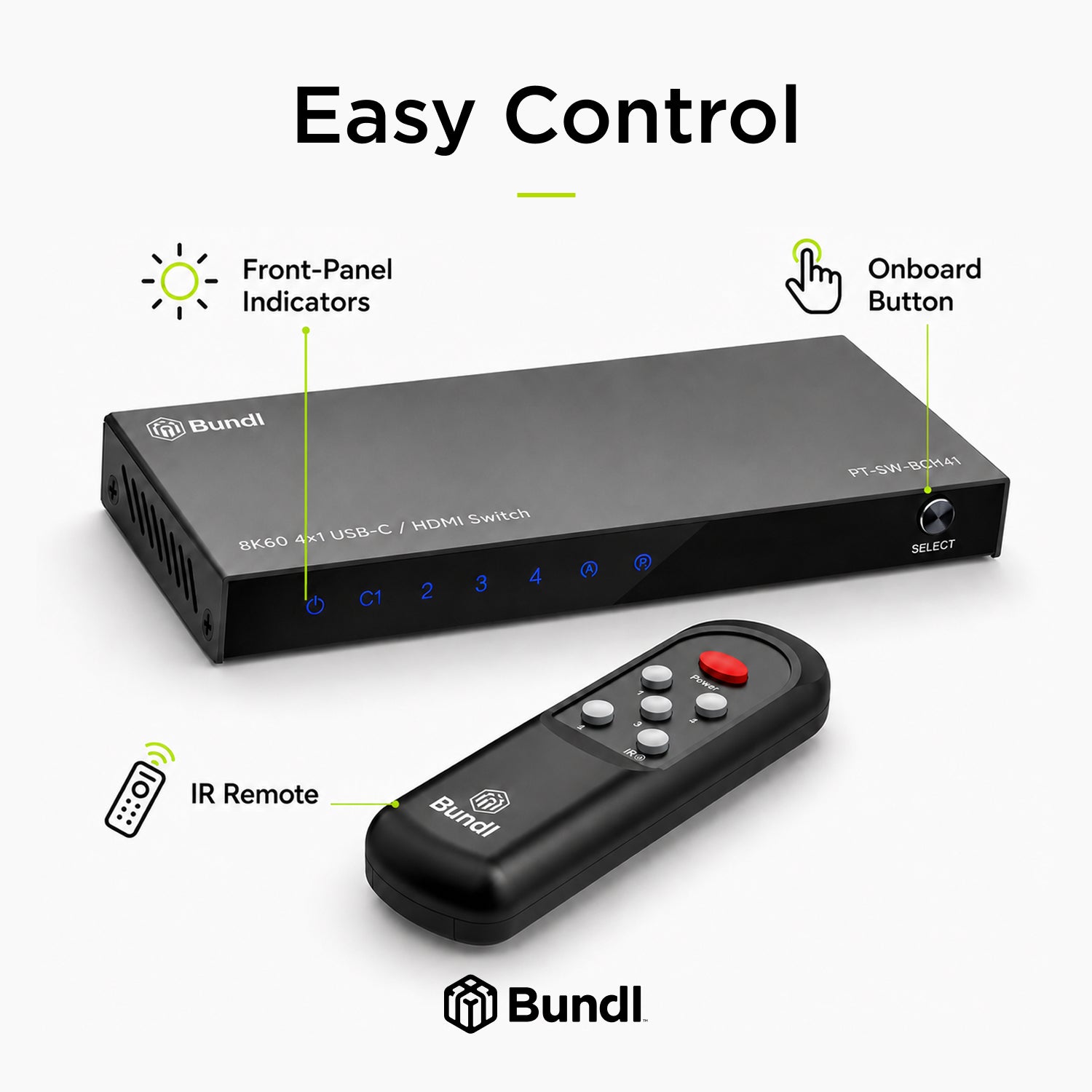

Front-panel indicators provide a clear view of the active input, while the onboard button and included IR remote make switching between devices precise and straightforward. Engineered for stable, reliable performance, this switch keeps every source ready for instant use.

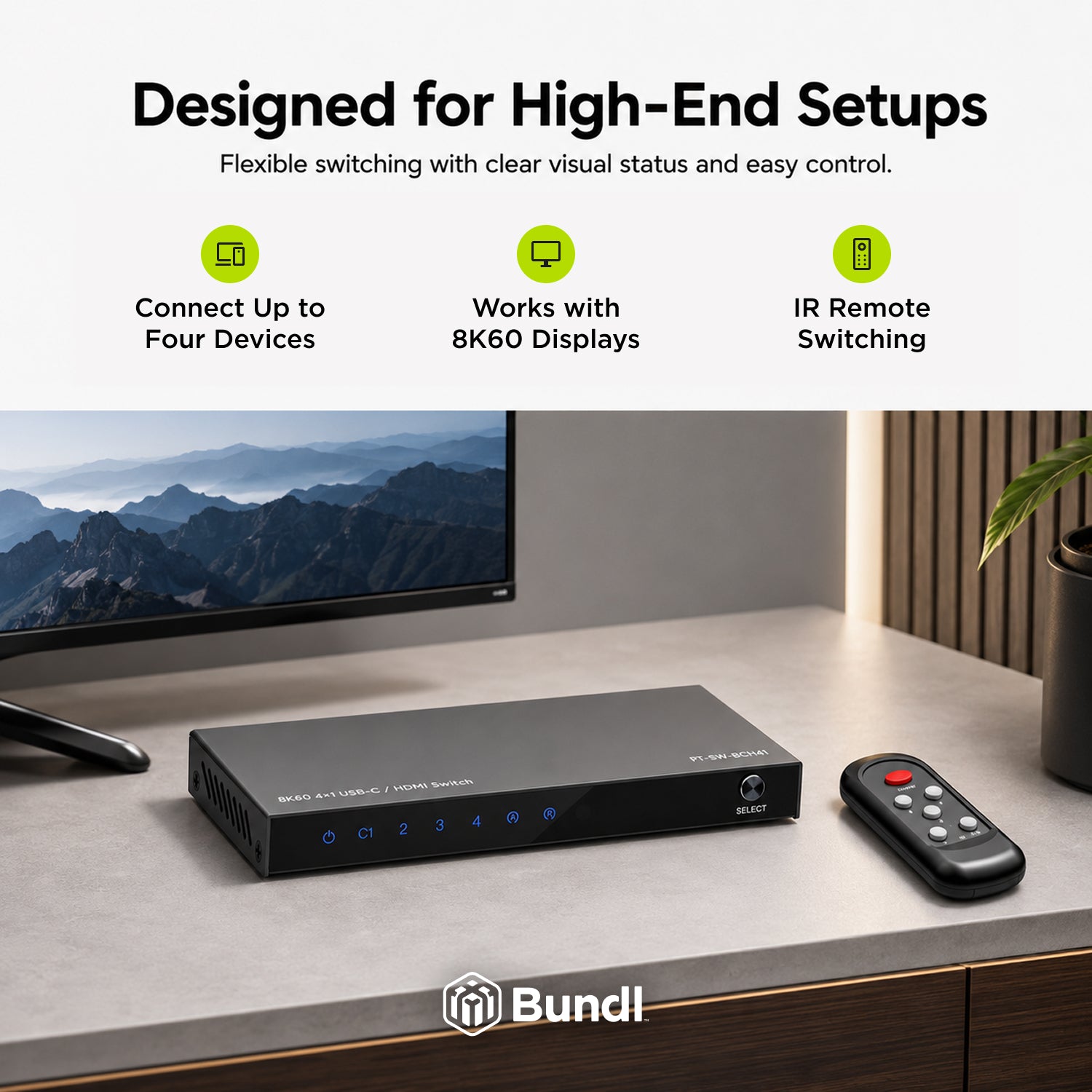

Compact, plug-and-play ready, and built for high-end setups, the 8K60 4×1 USB-C / HDMI Switch unifies multiple devices into a single streamlined workflow or entertainment system with clarity and confidence.
Key Features
• Support for 8K60 Displays
• USB-C & HDMI Input Options
• Connect Up to Four Devices
• HDR10+ & Dolby Vision
• Easy Front-Panel Controls
• IR Remote for Convenient Switching
• Compact, Plug-and-Play Setup
Specifications
Standards & Compliance
|
|
| Signal Standards |
HDMI 2.1, USB 3.0, DP-Alt Mode
|
| Regulatory Certifications |
CE, FCC, RoHS
|

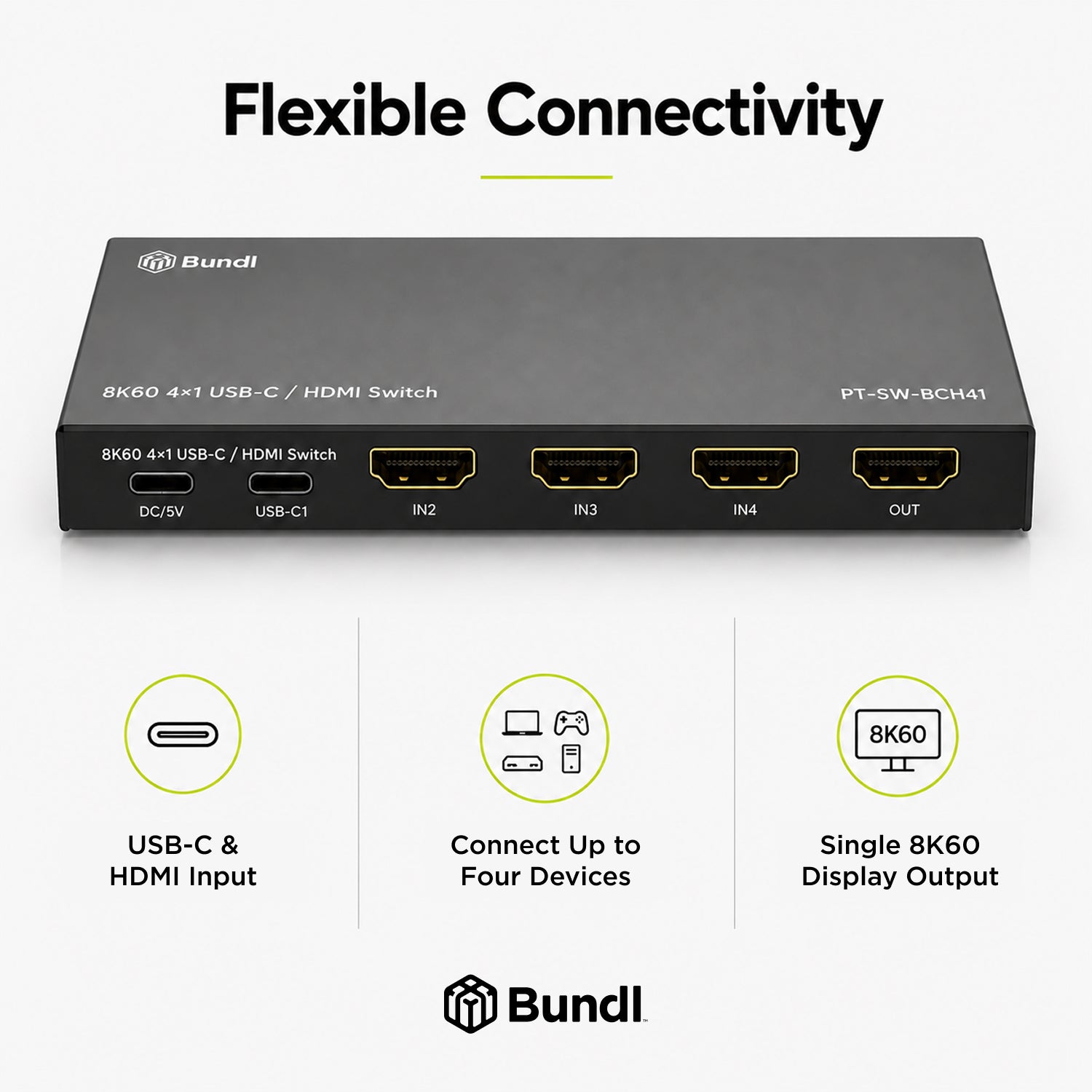

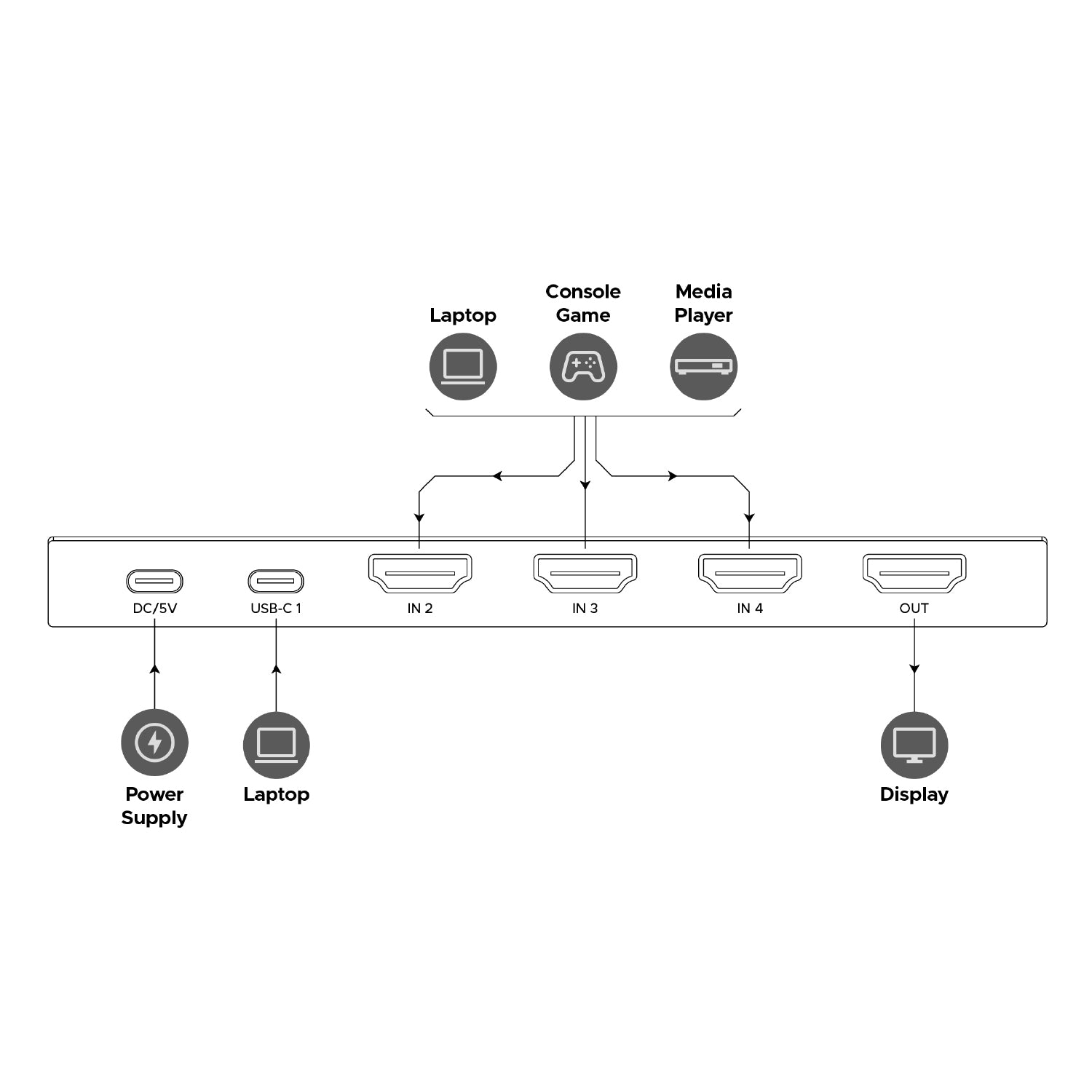

Connector Types
|
|
| HDMI Inputs |
3 × HDMI IN (Type A, 19-pin female) |
| HDMI Outputs |
1 × HDMI OUT (Type A, 19-pin female) |
| USB Input |
1 × USB IN (USB-C) |
Performance
|
|
| Max Video Resolution |
8K60 (4:4:4) |
| Color Space |
RGB |
| Dynamic Metadata Support |
HDR10+, HDR10, Dolby Vision, HLG
|
| MTBF |
50,000 hours |
|
HDMI Audio Format
|
PCM, Bitstream, Dolby, DTS, DSD
|
| ESD Protection |
EN61000-4-2 Standard |
Communications & Control
|
|
| Control Ports |
Front panel toggle button |
| IR Remote |
Handheld IR remote (built-in IR receiver) |
Power
|
|
| Power Input |
USB-C power adapter (not included) |
| Power Supply |
DC 5V/2A |
| Power Consumption |
4W (max) |
Environment
|
|
| Operating Temperature |
32 to 122°F / 0 to 50°C |
| Storage Temperature |
14 to 140°F / 10 to 60°C |
| Relative Humidity |
5 to 80% RH (no condensation) |
Enclosure
|
|
| Product Dimensions (W × D × H) |
5.3 in × 2.3 in × 0.7 in (136mm × 60mm × 17mm) |
| Weight |
0.36 lbs (156g) |
Warranty
|
|
| Parts |
1 year |
| Labor |
1 year |
