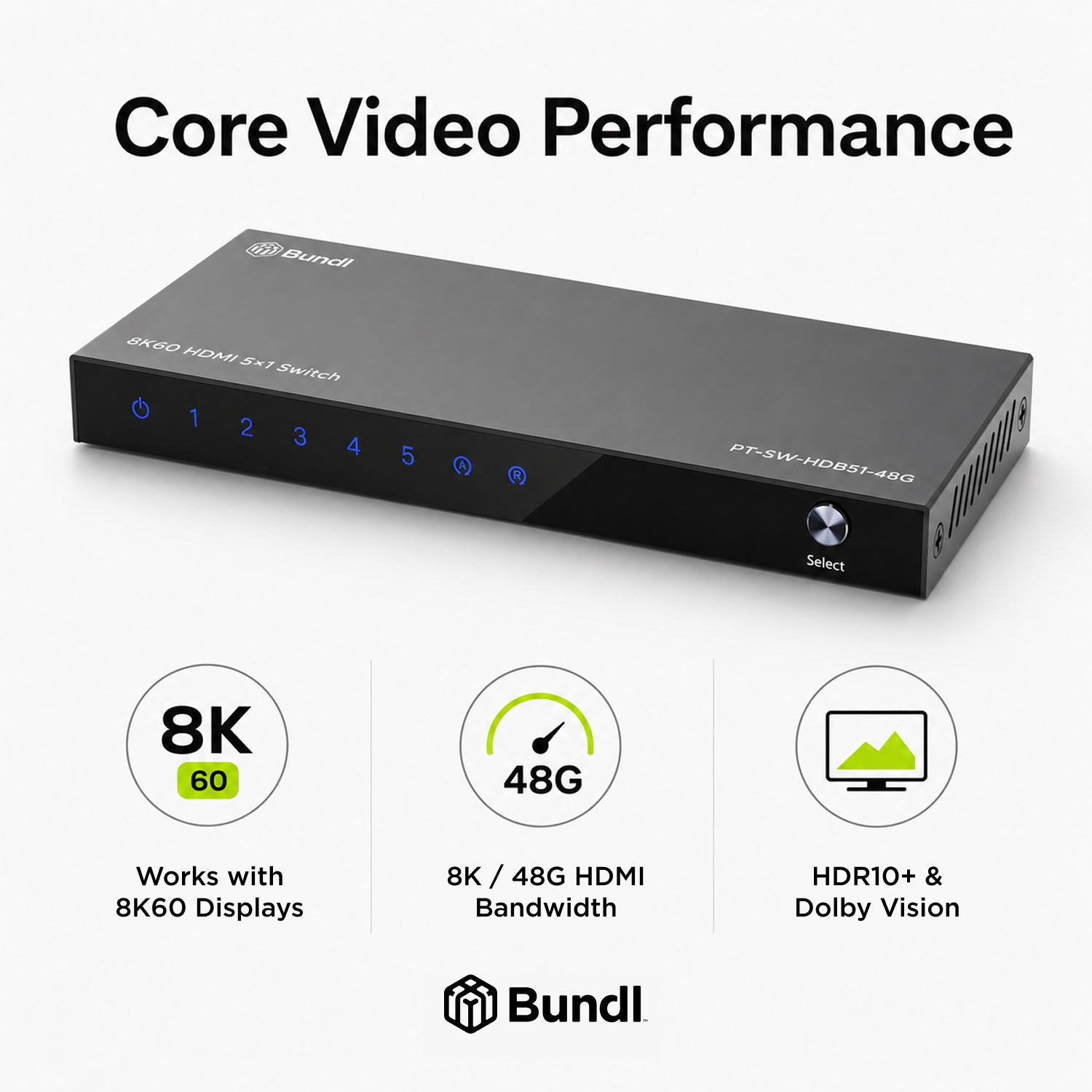

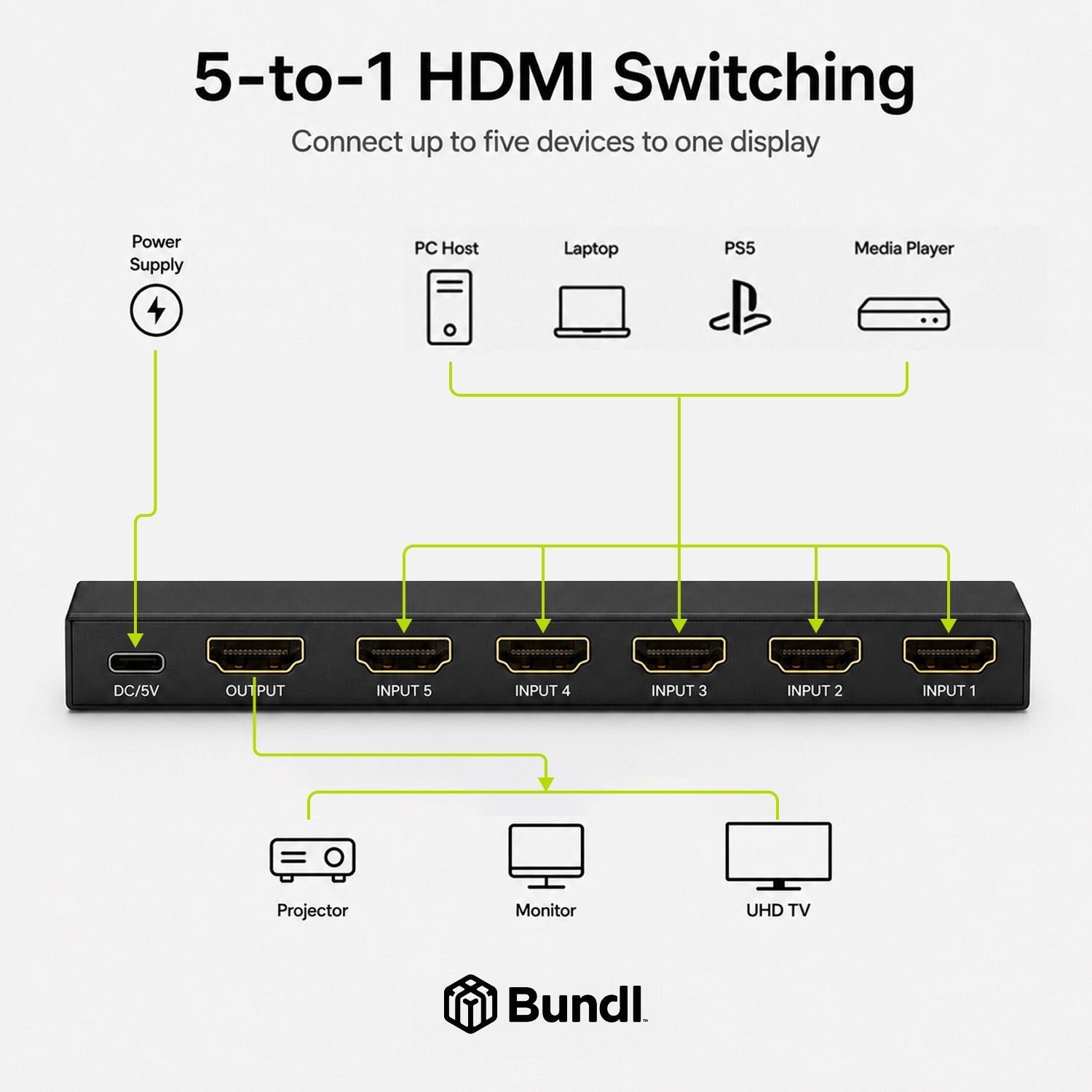

Connect up to five devices to one display with the 8K60 HDMI 5×1 Switch, built with full 48G bandwidth for flawless, next-generation video performance. Enjoy crisp 8K60 resolution with vivid color and contrast thanks to complete support for HDR10+ and Dolby Vision, making every input look its best.

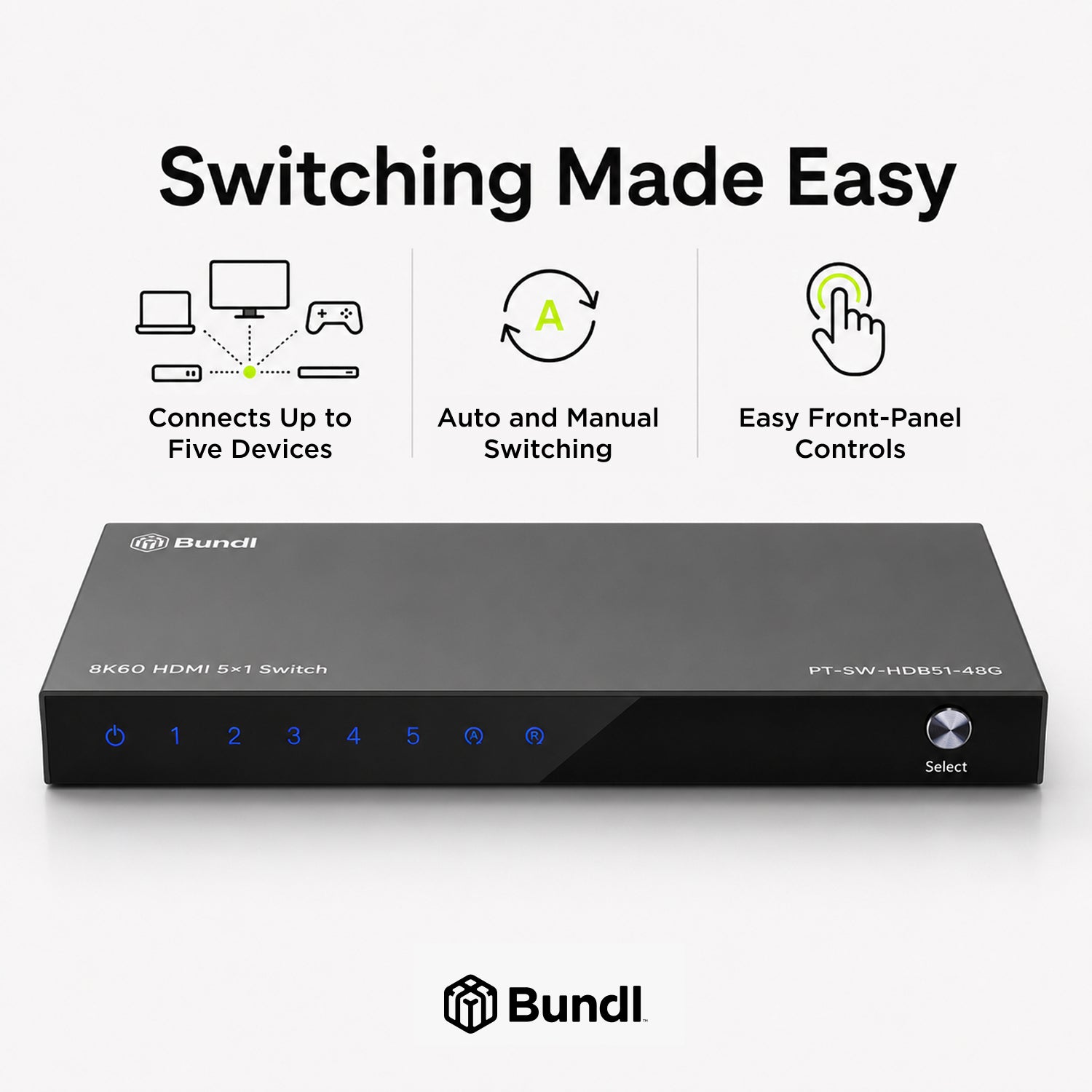

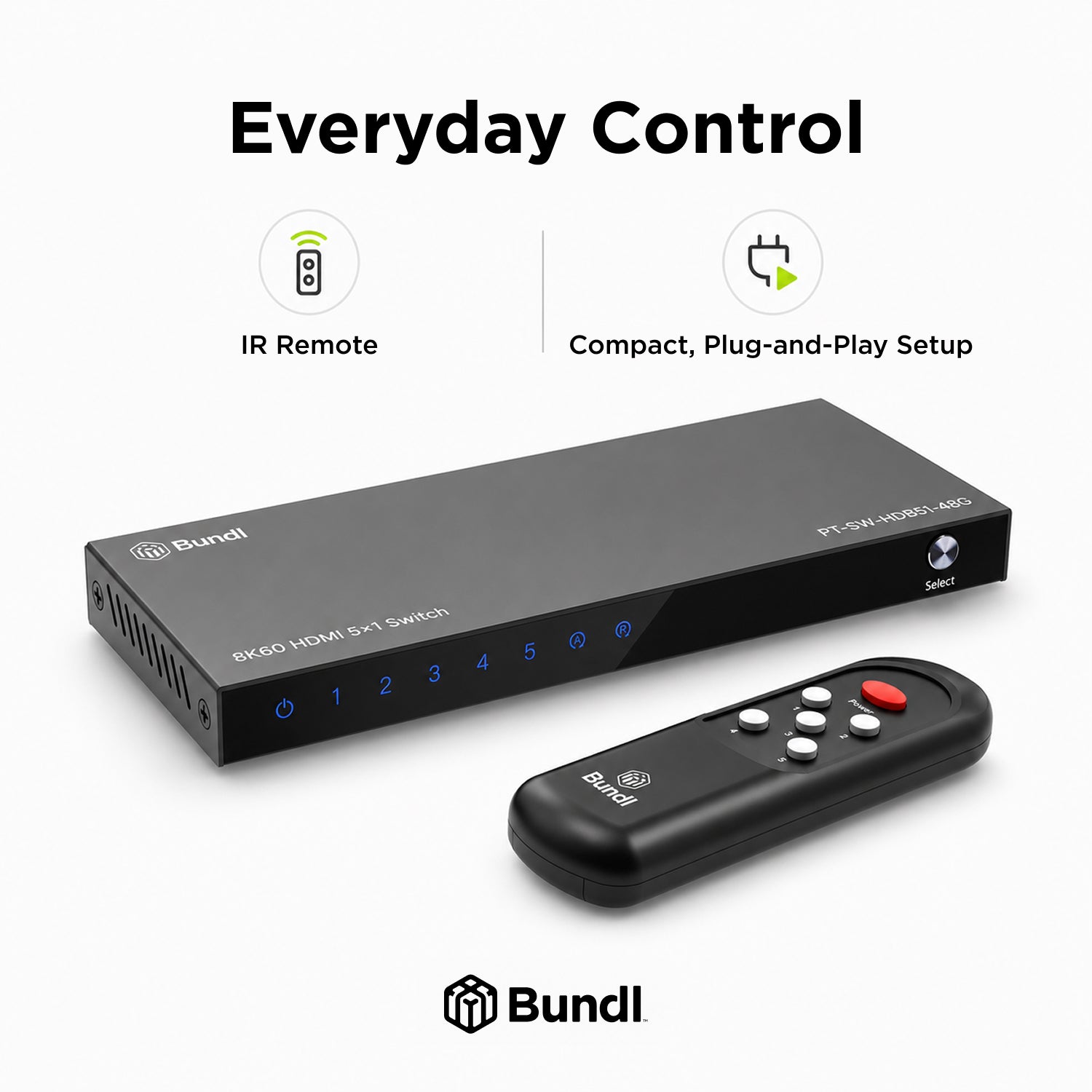

Front-panel indicators clearly show the selected source, and the onboard input button gives you instant control at any time. Prefer hands-free switching? Enable automatic mode for seamless, touch-free transitions between active devices. An included IR remote adds even more flexibility.

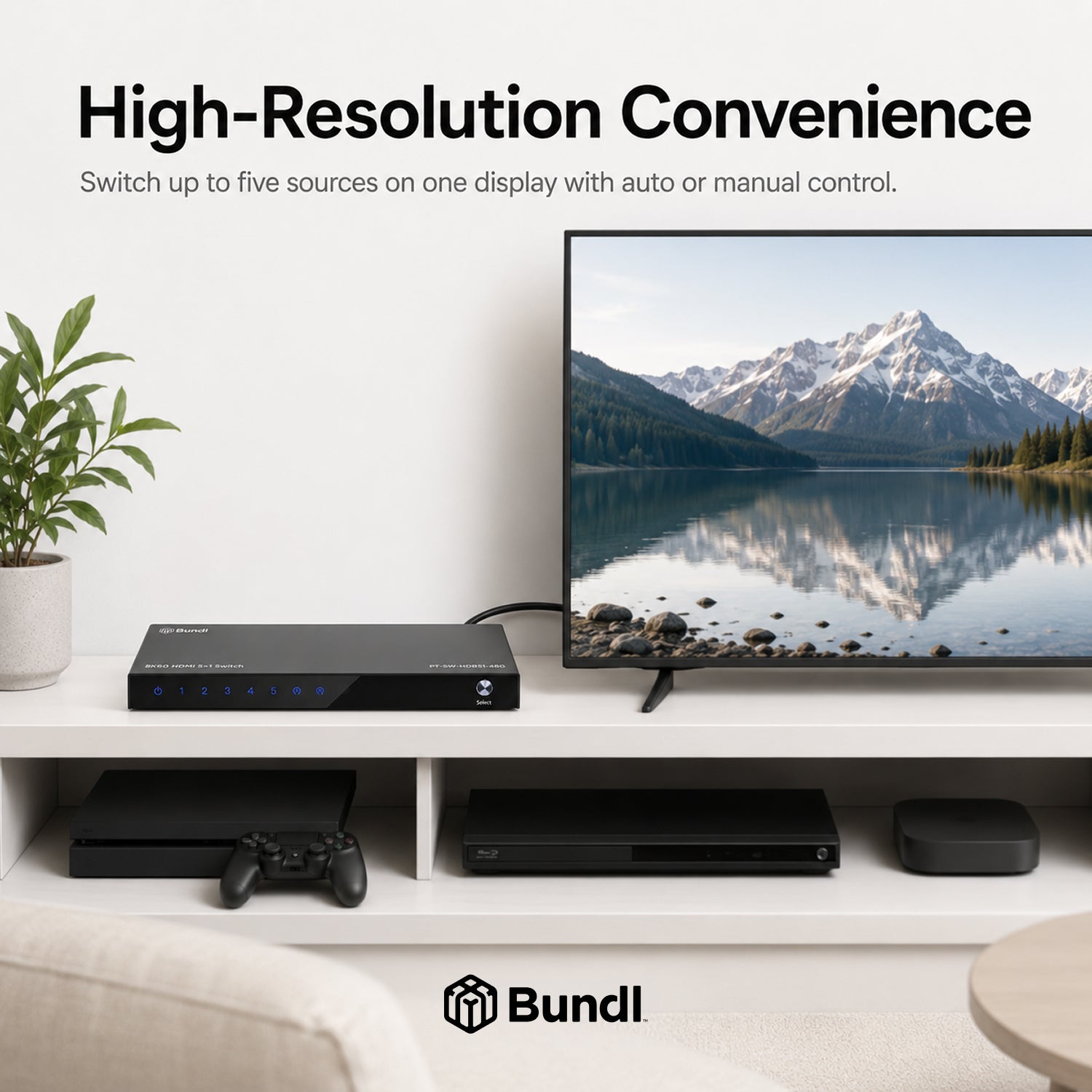

Compact, reliable, and easy to use, the 8K60 HDMI 5×1 Switch brings high-resolution convenience to gaming setups, home entertainment systems, and everyday viewing.
Key Features
• Support for 8K60 Displays
• 48G HDMI Bandwidth
• Connect Up to Five Devices
• HDR10+ & Dolby Vision
• Auto or Manual Switching
• Easy Front-Panel Controls
• Includes IR Remote
• Compact, Plug-and-Play Setup
Specifications
Standards & Compliance
|
|
| Signal Standards |
HDMI 2.0 |
| HDCP |
HDCP 2.3 |
| Regulatory Certifications |
CE |
Connector Types
|
|
| HDMI Inputs |
5 × HDMI IN (Type A) |
| HDMI Outputs |
1 × HDMI OUT (Type A) |
Performance
|
|
| Max Video Resolution |
8K60 (4:4:4) |
| Video Bandwidth |
48 Gbps |
| Color Space |
RGB |
| Color Depth |
12‑bit |
| Dynamic Metadata Support |
HDR10+, HDR10, HDR, Dolby Vision
|
Communications & Control
|
|
| IR Remote |
Handheld IR remote |
| Control Connector Type |
3.5mm TRS |
Power
|
|
| Power Input |
AC 100 - 240V 50/60Hz |
| Power Supply |
USB-C |
| Power Consumption |
5W |
Environment
|
|
| Operating Temperature |
32 to 158°F / 0 to 70°C |
| Relative Humidity |
5 to 90% RH (no condensation) |
Enclosure
|
|
| Product Dimensions (W × D × H) |
6.31 in × 2.42 in × 0.57 in (160.3mm × 61.5mm × 14.5mm) |
| Weight |
0.45 lbs (200g) |
Warranty
|
|
| Parts |
1 year |
| Labor |
1 year |
