Enjoy stunning clarity and effortless connectivity with the 8K60 1×4 HDMI Splitter with Audio De-Embed, designed to distribute one HDMI source to up to four displays with exceptional precision. Supporting up to 8K60 resolution with HDR10+ and Dolby Vision, it delivers vibrant color, sharp contrast, and smooth motion for every frame.

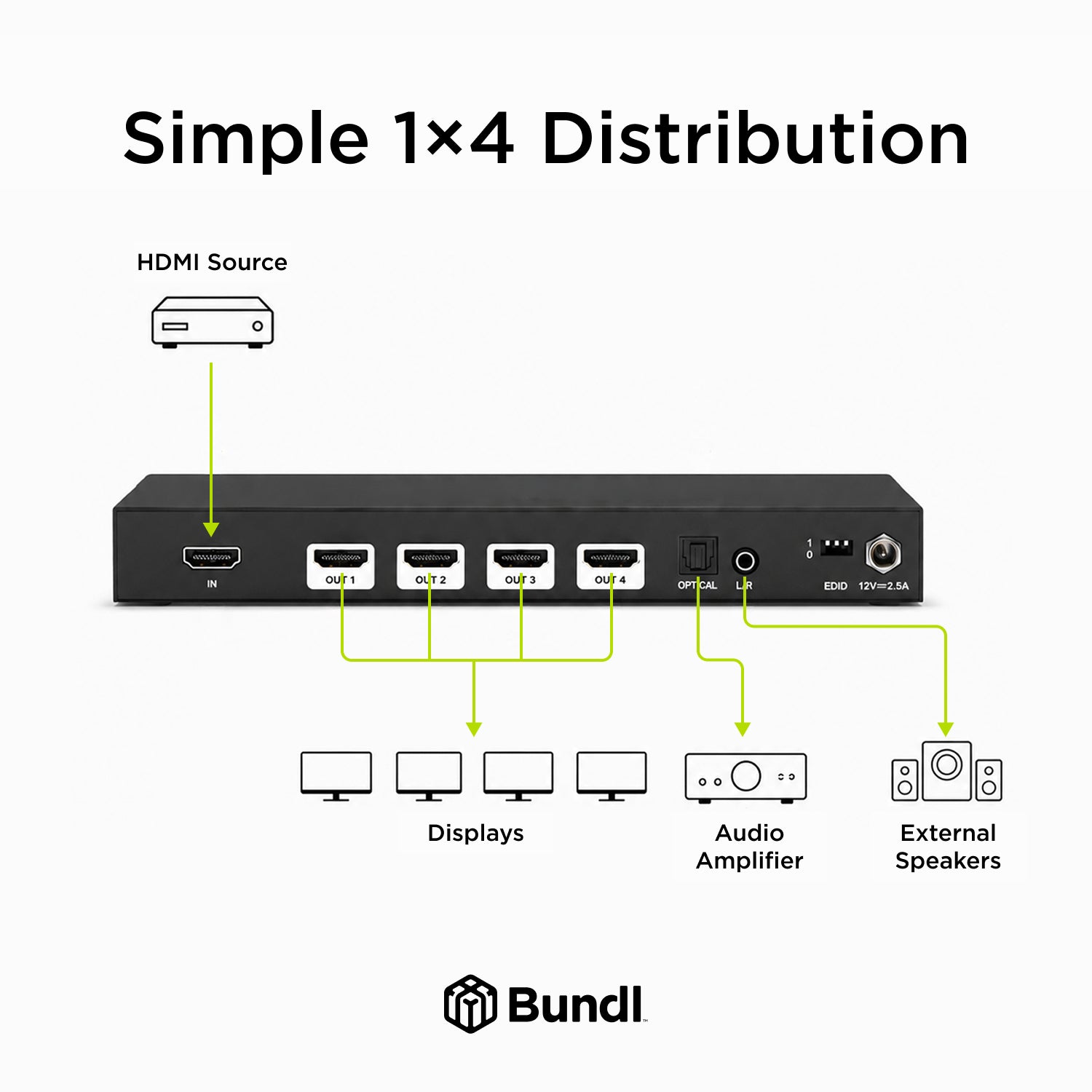

Perfect for home theaters, gaming setups, or digital signage, this 1×4 HDMI distribution amplifier ensures consistent, lag-free performance across all screens. The 8K60 HDMI Splitter also features analog and optical audio de-embedding, letting you easily connect external sound systems for an immersive audio experience.
With advanced EDID management, installation is quick and compatibility is seamless — no guesswork required. Compact, reliable, and plug-and-play ready, it’s the ultimate choice for anyone looking to expand their 8K60 entertainment system with confidence and quality.
Key Features
• 8K60 Output
• Share One Source to Four Screens
• HDR10+ & Dolby Vision
• Connect External Speakers Easily
• EDID Management
• Lag-Free Playback
• Compact, Plug-and-Play Setup
Specifications
Standards & Compliance
|
|
| Signal Standards |
HDMI 2.1 |
| HDCP |
HDCP 2.3, HDCP 1.4
|
| Regulatory Certifications |
CE, FCC, RoHS, UL
|
Connector Types
|
|
| HDMI Inputs |
1 × HDMI IN (Type A, 19-pin female) |
| HDMI Outputs |
4 × HDMI OUT (Type A, 19-pin female) |
| Toslink (Optical Square Plug) |
Yes |
| ARC |
ARC HDMI |
| Audio Outputs |
"Analog (L/R TRS, 3.5mm jack)" |
| Dante |
No |
Performance
|
|
| Max Video Resolution |
8K60 (4:2:0), 8K30 (4:4:4), 4K120 (4:4:4)
|
| Video Bandwidth |
48 Gbps |
| Color Space |
RGB, YUV, YCbCr
|
| Color Depth |
12‑bit |
| Dynamic Metadata Support |
HDR10+, HDR10, HRD, Dolby Vision, HLG
|
|
HDMI Audio Format
|
LPCM, Dolby Digital Plus, Dolby True Sound , Dolby Atmos, DTS, DTS-ES, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
|
| Optical Audio Format |
LPCM, Dolby, DTS 5.1CH
|
| Analog Audio Format |
LPCM 2 Channel |
| Scaling |
Auto |
| ESD Protection |
IEC 61000‑4‑2 (±8 kV) |
Power
|
|
| Power Input |
AC 100 - 240V 50/60Hz |
| Power Supply |
DC 12V/2.5A |
| Power Consumption |
10W (max) |
Environment
|
|
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
| Relative Humidity |
20 to 90% RH (no condensation) |
| Rack Mounting Option |
No |
| Product Dimensions (W × D × H) |
6.9 in × 2.7 in × 0.71 in (176mm × 68mm × 18mm) |
| Weight |
0.65 lbs (295g) |
Warranty
|
|
| Parts |
1 year |
| Labor |
1 year |
