Control displays, switchers, and other connected room equipment from one simple button panel with the PureLink 10-Button Wall Plate Controller. Designed for meeting rooms, classrooms, training spaces, and shared work areas, it gives users a clear, tactile way to manage everyday technology without needing to open an app or navigate a complicated touchscreen.

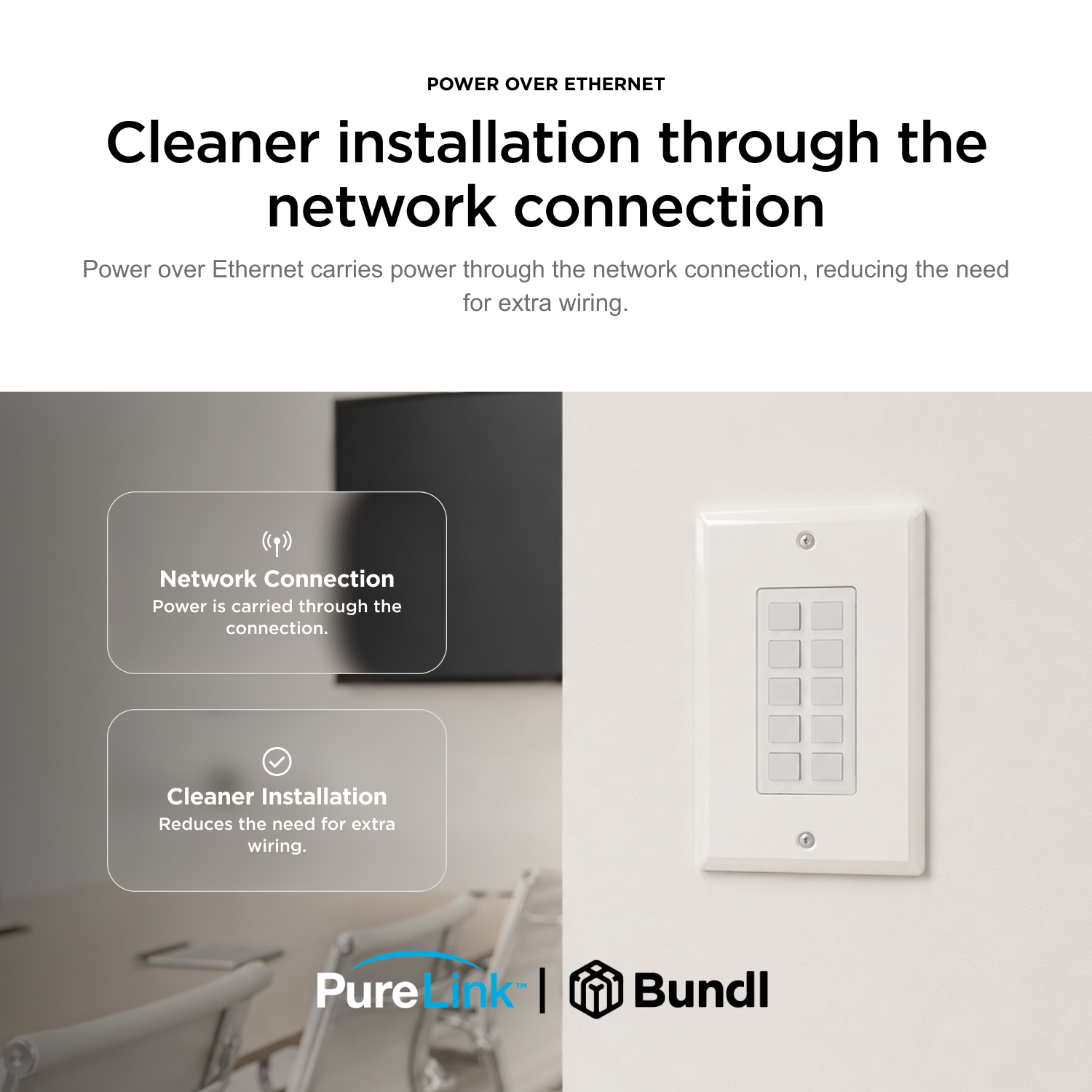

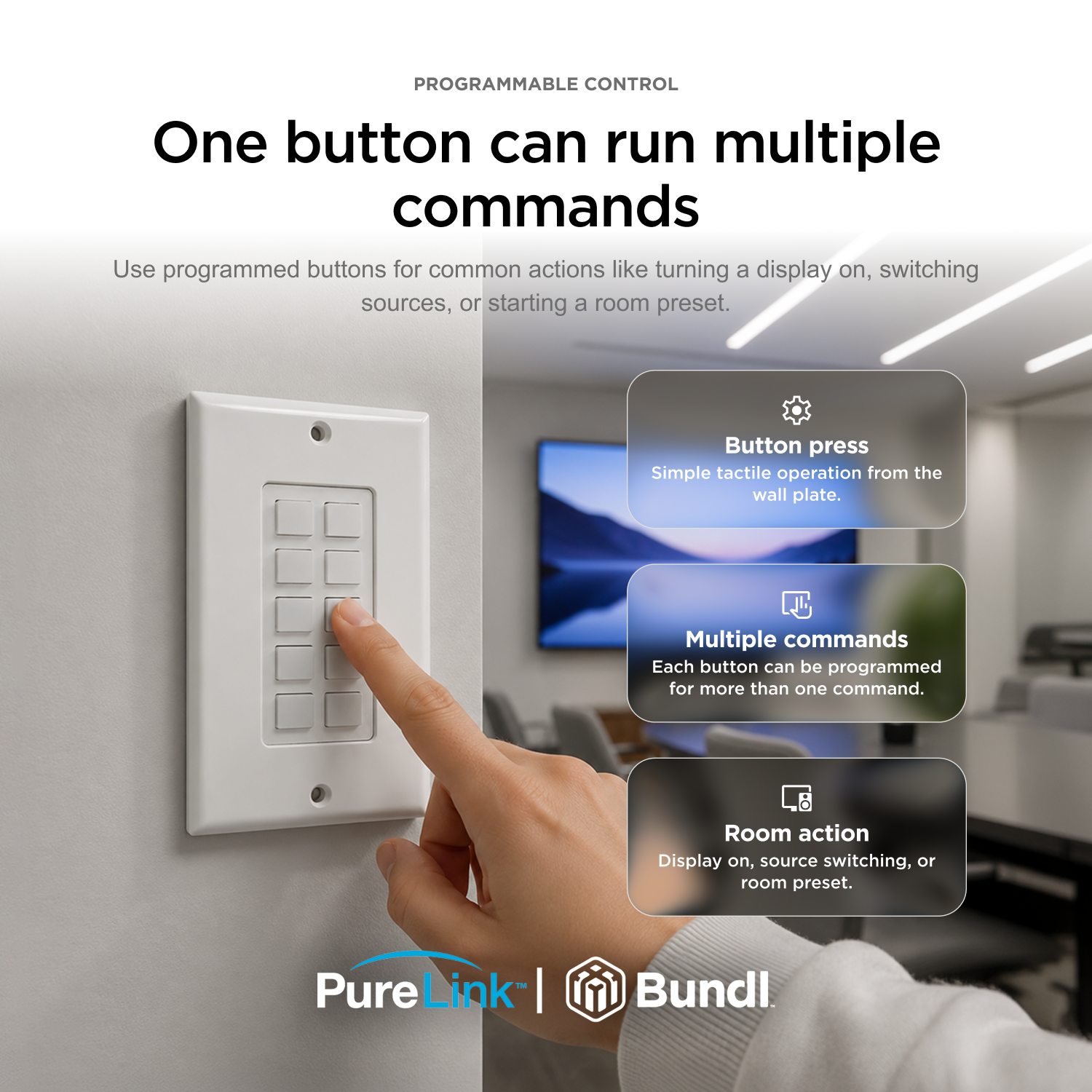

Each button can be programmed to trigger multiple commands, making common actions like turning a display on, switching sources, or starting a room preset easier to manage. Power over Ethernet helps simplify installation by carrying power through the network connection, reducing the need for extra wiring.
Compact, reliable, and easy to label, the PureLink 10-Button Room Controller is a practical control upgrade for spaces that need straightforward, dependable operation from a physical button interface.
Key Features
• 10-Button Control Panel
• Control Displays, Switchers, and Room Devices
• Simple Tactile Button Operation
• Programmable Commands for Each Button

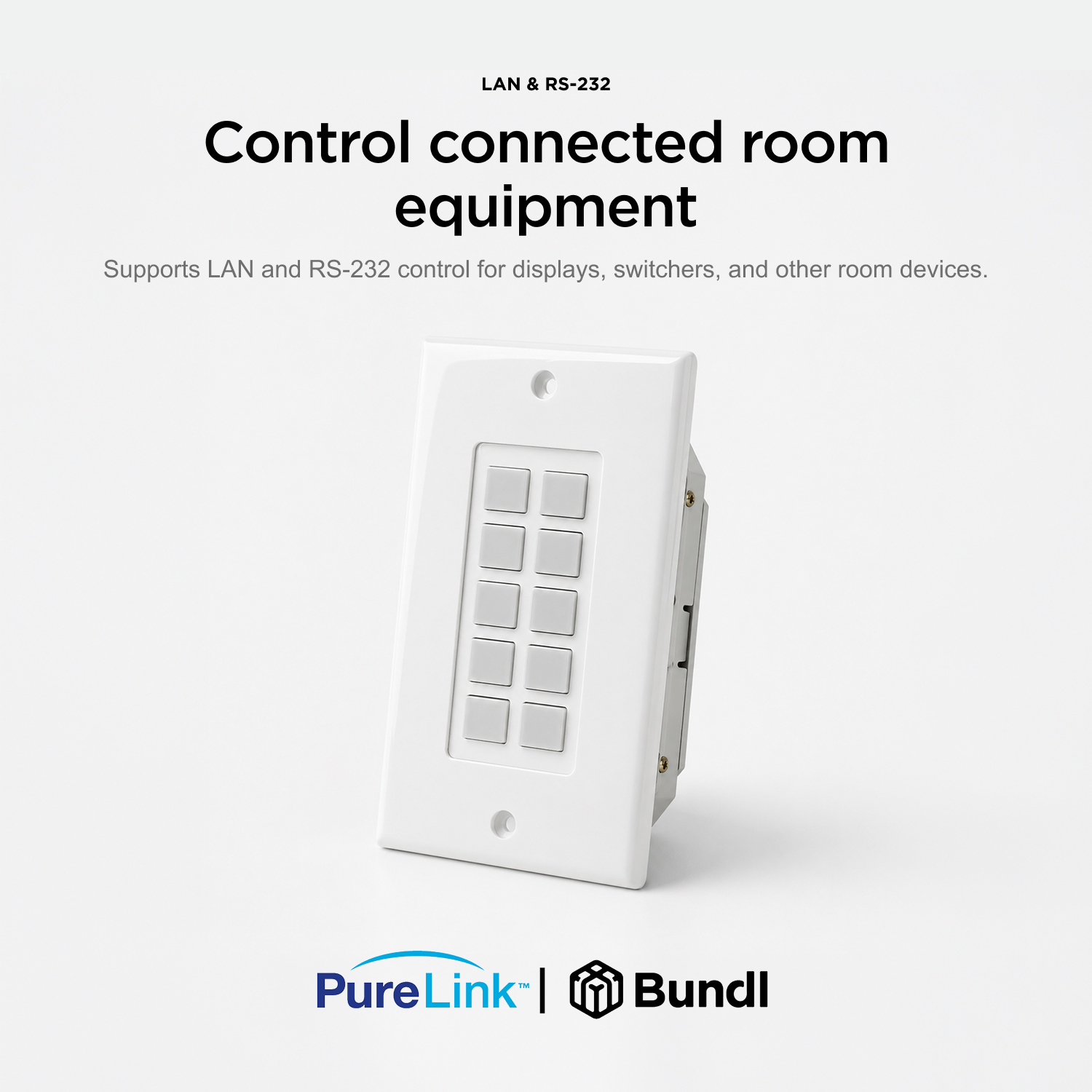

• Supports LAN and RS-232 Control
• Power over Ethernet for Cleaner Installation
• Built-In Web Programming Interface
• Optional Pre-Programming Available
• Custom or Preconfigured Button Labels
• Compact Design for Meeting Rooms and Classrooms
Specifications
|
Communications & Control
|
|
|
Control Protocol
|
RS‑232 (bi‑directional), Telnet, LAN (TCP/IP)
|
|
Control Ports
|
LAN, RS-232
|
|
Control Connector Type
|
RJ45, Mini Phoenix (3.81mm)
|
|
Mechanical Features
|
|
|
Network Port
|
1 × LAN (RJ45)
|
|
RS-232/485 Port
|
1 × 3.81mm Phoenix Connector (3-pin)
|
|
PoE
|
PoE 802.3af
|
|
ESD Protection
|
Human body model — ±8kV [air-gap discharge] & ±4kV [contact discharge]
|
|
Power
|
|
|
Power Input
|
PoE (IEEE 802.3af), DC 12-24V/1A via 2‑pin Phoenix
|
|
Power Supply
|
DC 12V/0.5A
|
|
Power Consumption
|
1.3W (max)
|
|
Environment
|
|
|
Operating Temperature
|
32 to 113°F / 0 to 45°C
|
|
Storage Temperature
|
-4 to 158°F / -20 to 70°C
|
|
Relative Humidity
|
10 to 90% RH (no condensation)
|
|
Enclosure
|
|
|
Mounting Option
|
Wall |
|
Product Dimensions (W × D × H)
|
1.77 in × 1.42 in × 4.16 in (45mm × 36mm × 105.6mm)
|
|
Weight
|
0.40 lbs (181.44g)
|
|
Warranty
|
|
|
Parts
|
5 year |
|
Labor
|
5 year |
