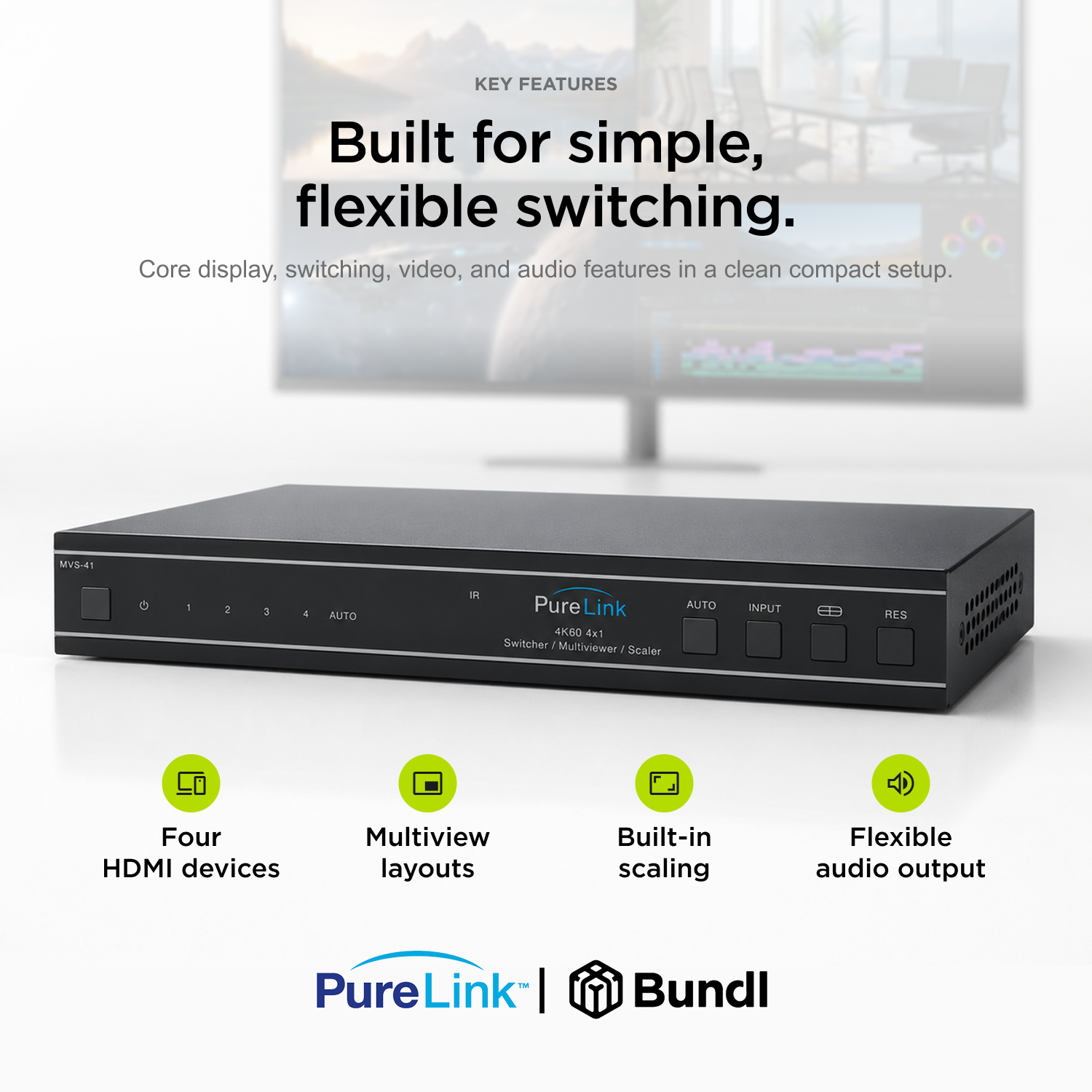

Connect up to four HDMI devices to one display with the PureLink 4K60 HDMI Switch, built for smooth seamless source switching, sharp video performance, and flexible screen layouts. Move between laptops, media players, game consoles, cameras, or other HDMI sources without distracting blank screens or complicated setup.

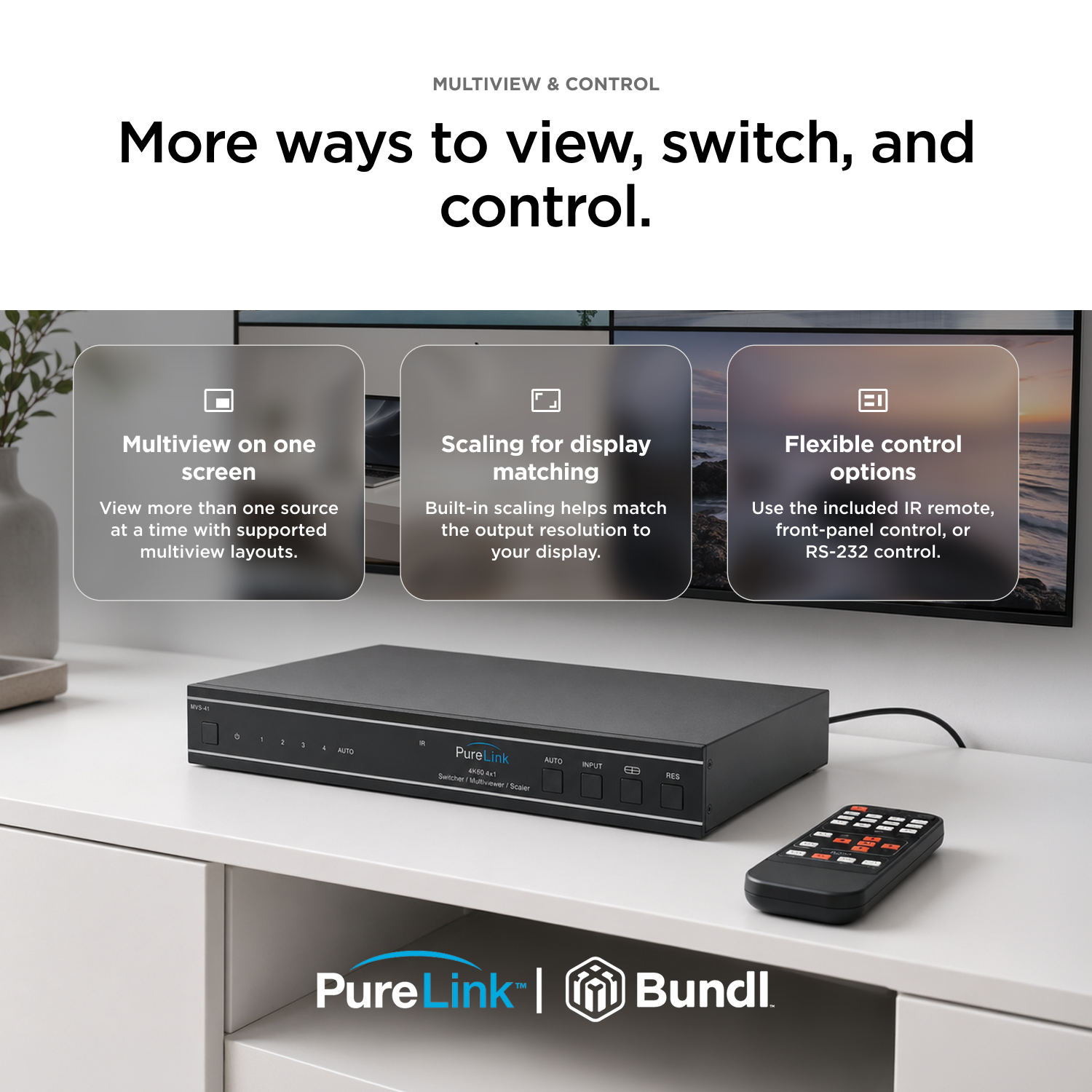

Multiview layouts make it easy to view more than one source at a time, including side-by-side, picture-in-picture, and quad view for displaying all four inputs on one screen. Built-in scaling helps match the output resolution to your display, with support for up to 4K60 4:4:4 performance. Audio de-embedding also gives you more flexibility for connecting external speakers, sound systems, or other audio equipment.
Compact, reliable, and easy to control, the PureLink 4K60 HDMI Switch is a practical solution for meeting rooms, home theaters, retail displays, hospitality spaces, and everyday setups that need simple switching with more advanced display options.
Key Features
• Support for 4K60 Displays
• Connect Up to Four HDMI Devices
• Seamless Source Switching
• Built-In Video Scaling
• Side-by-Side Multiview
• Picture-in-Picture Display Mode
• Quad View for Four Sources
• Flexible Audio Output
• Includes IR Remote
• Front-Panel and RS-232 Control
• Compact, Plug-and-Play Setup
Specifications
|
Standards & Compliance
|
|
|
Signal Standards
|
HDMI 2.0b
|
|
Switcher Connector Types
|
|
|
HDMI Input
|
4 × HDMI IN (Type A, 19-pin female)
|
|
HDMI Output
|
1 × HDMI OUT (Type A, 19-pin female)
|
|
IR In
|
1 × 3.5mm TRS
|
|
TCP/IP
|
1 × LAN (RJ45)
|
|
RS-232
|
1 × 3.81mm 3-pin Phoenix
|
|
Performance
|
|
|
Max Video Resolution
|
4K60 (4:4:4) |
|
Video Bandwidth
|
18 Gbps
|
|
Color Space
|
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
|
|
Color Depth
|
8-bit
|
|
HDR
|
HDR 10 , HDR 10+, HLG
|
|
HDMI Audio Formats
|
Dolby Digital Plus, DTS, DTS High Res, PCM 2.0, PCM 5.1, PCM 7.1 |
|
Optical Audio Formats
|
PCM 2.0, Dolby Digital, DTS 5.1 |
|
Coaxial Audio Format
|
PCM 2.0Ch |
|
ESD Protection
|
Human body model — ±8kV [air-gap discharge] & ±4kV [contact discharge]
|
|
Switcher Power
|
|
|
Power Input
|
DC 12V/2.5A
|
|
Power Supply
|
AC 100 - 240V 50/60Hz
|
|
Power Consumption
|
10W (max)
|
|
Environment
|
|
|
Operating Temperature
|
32 to 104°F / 0 to 40°C
|
|
Storage Temperature
|
-4 to 140°F / -20 to 60°C |
|
Relative Humidity
|
20 to 90%
|
|
Enclosure
|
|
|
Product Dimensions (W × D × H)
|
Matrix: 8.66 in × 3.94 in × 1.18 in (220mm × 100mm × 30mm)
|
|
Weight
|
Matrix: 1.37 lbs (620g)
|
|
Warranty
|
|
|
Parts
|
5 year |
|
Labor
|
5 year |
