Connect two HDMI devices to one display with the PureLink 4K60 HDMI Switch, built for smooth source seamless switching, sharp video performance, and flexible screen layouts. Move between inputs without distracting blank screens, or show both connected devices at once using side-by-side or picture-in-picture multiview modes.
Built-in scaling helps your video look its best by matching the output resolution to your display, with support for up to 4K60 4:4:4 performance. Audio de-embedding gives you more flexibility for connecting external speakers, sound systems, or other audio equipment.
Compact, reliable, and easy to control, the PureLink 4K60 HDMI Switch is a practical solution for meeting rooms, home theaters, retail displays, hospitality spaces, and everyday setups that need simple switching with more advanced display options.

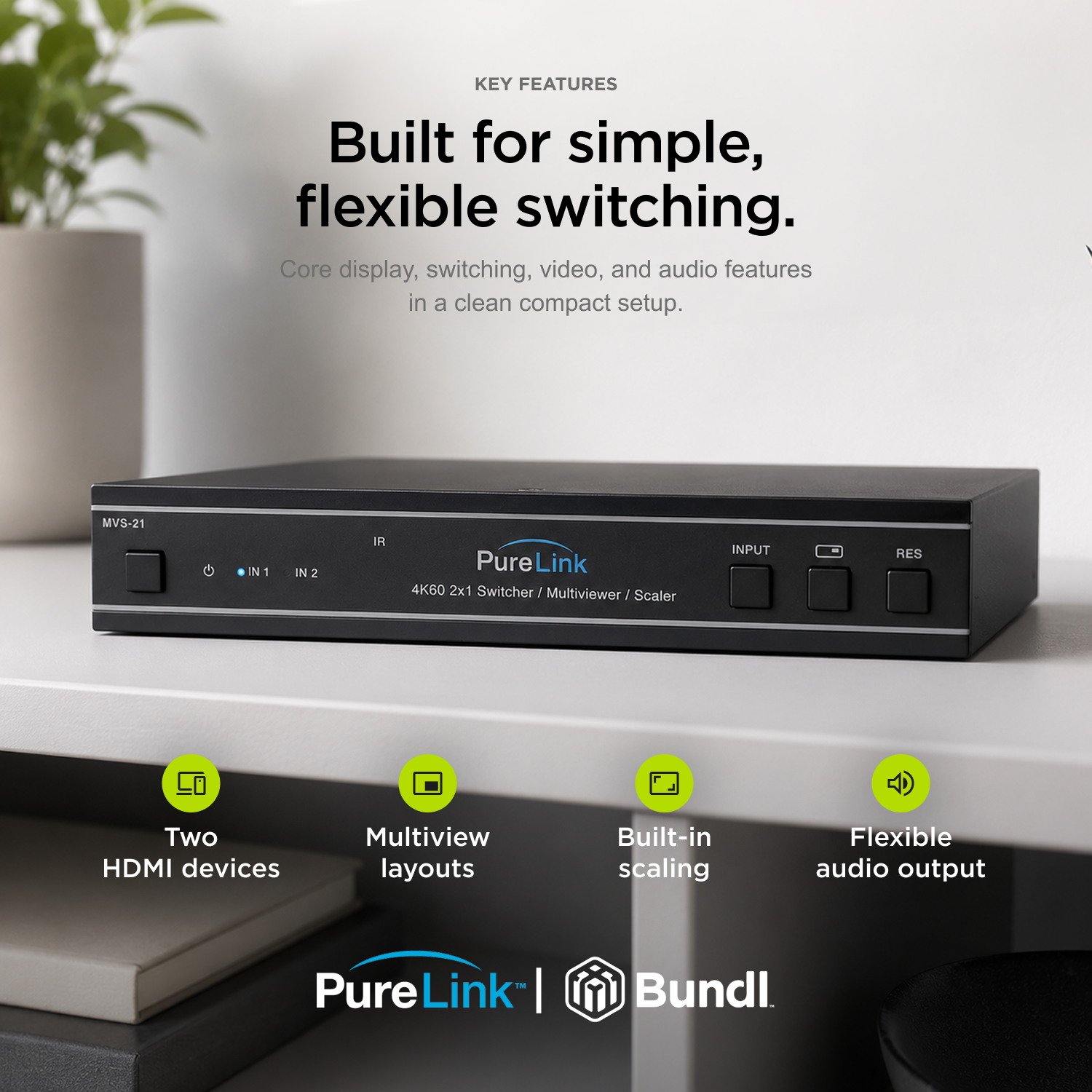

Key Features
• Support for 4K60 Displays
• Connect Two HDMI Devices
• Seamless Source Switching
• Built-In Video Scaling
• Side-by-Side Multiview
• Picture-in-Picture Display Mode
• Flexible Audio Output
• Includes IR Remote
• Front-Panel and RS-232 Control
• Compact, Plug-and-Play Setup
Specifications
|
Standards & Compliance
|
|
|
Signal Standards
|
HDMI 2.0b
|
|
Matrix Connector Types
|
|
|
HDMI Input
|
2 × HDMI IN (Type A, 19-pin female)
|
|
HDMI Output
|
1 × HDMI OUT (Type A, 19-pin female)
|
|
IR In
|
1 × 3.5mm TRS
|
|
RS-232
|
1 × 3.81mm 3-pin Phoenix
|
|
Optical Output
|
1 × S/PDIF |
|
Performance
|
|
|
Max Video Resolution
|
4K60 (4:4:4) |
|
Video Bandwidth
|
18 Gbps
|
|
Color Space
|
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
|
|
Color Depth
|
8-bit
|
|
HDR
|
HDR 10 , HDR 10+, HLG
|
|
HDCP
|
HDCP 2.2 |
|
HDMI Audio Formats
|
Dolby Digital Plus, DTS, DTS High Res, PCM 2.0, PCM 5.1, PCM 7.1 |
|
Optical Audio Formats
|
PCM 2.0, Dolby Digital, DTS 5.1 |
|
Analog Balanced Audio Formats
|
PCM 2.0Ch |
|
RS-232 Support
|
Yes |
|
ESD Protection
|
Human body model — ±8kV [air-gap discharge] & ±4kV [contact discharge] |
|
IR Level
|
5Vp-p |
|
IR Frequency
|
38KHz |
|
Switcher Power
|
|
|
Power Input
|
DC 12V/1A
|
|
Power Supply
|
AC 100 - 240V 50/60Hz
|
|
Power Consumption
|
4.56W (max)
|
|
Environment
|
|
|
Operating Temperature
|
32 to 104°F / 0 to 40°C
|
|
Storage Temperature
|
-4 to 140°F / -20 to 60°C |
|
Relative Humidity
|
20 to 90%
|
|
Enclosure
|
|
|
Product Dimensions (W × D × H)
|
Matrix: 6.89 in × 3.94 in × 1.18 in (175mm × 100mm × 30mm)
|
|
Weight
|
Matrix: 1.10 lbs (497g)
|
|
Warranty
|
|
|
Parts
|
5 year |
|
Labor
|
5 year |
