PureLink 6×1 4K60 Presentation Switcher with Multiview

Connect up to six HDMI and USB-C sources with the PureLink 4K60 Presentation Seamless Switcher, built for smooth presentations, easy instant source switching, and flexible screen layouts. Designed for meeting rooms, training spaces, classrooms, and collaboration areas, it helps users move between laptops, media players, and other devices without complicated setup.
Built-in multiview lets you show up to four sources at once, including full screen, picture-in-picture, picture-by-picture, and quad-view display modes. USB-C support makes it easy to connect modern laptops, while also supporting USB 2.0 and up to 60W charging. Dante audio, balanced analog audio, and audio embedding/de-embedding provide more flexibility for professional sound systems. The 6th input is located on the included HDBaseT receiver, allowing for easy connections of sources located by the display.
With included long-distance display extension, auto or manual switching, web control, front-panel controls, remote control, and third-party automation support, the PureLink 4K60 Presentation Switcher gives everyday users a polished presentation experience without making the technology feel complicated.
Key Features
• Support for 4K60 Displays

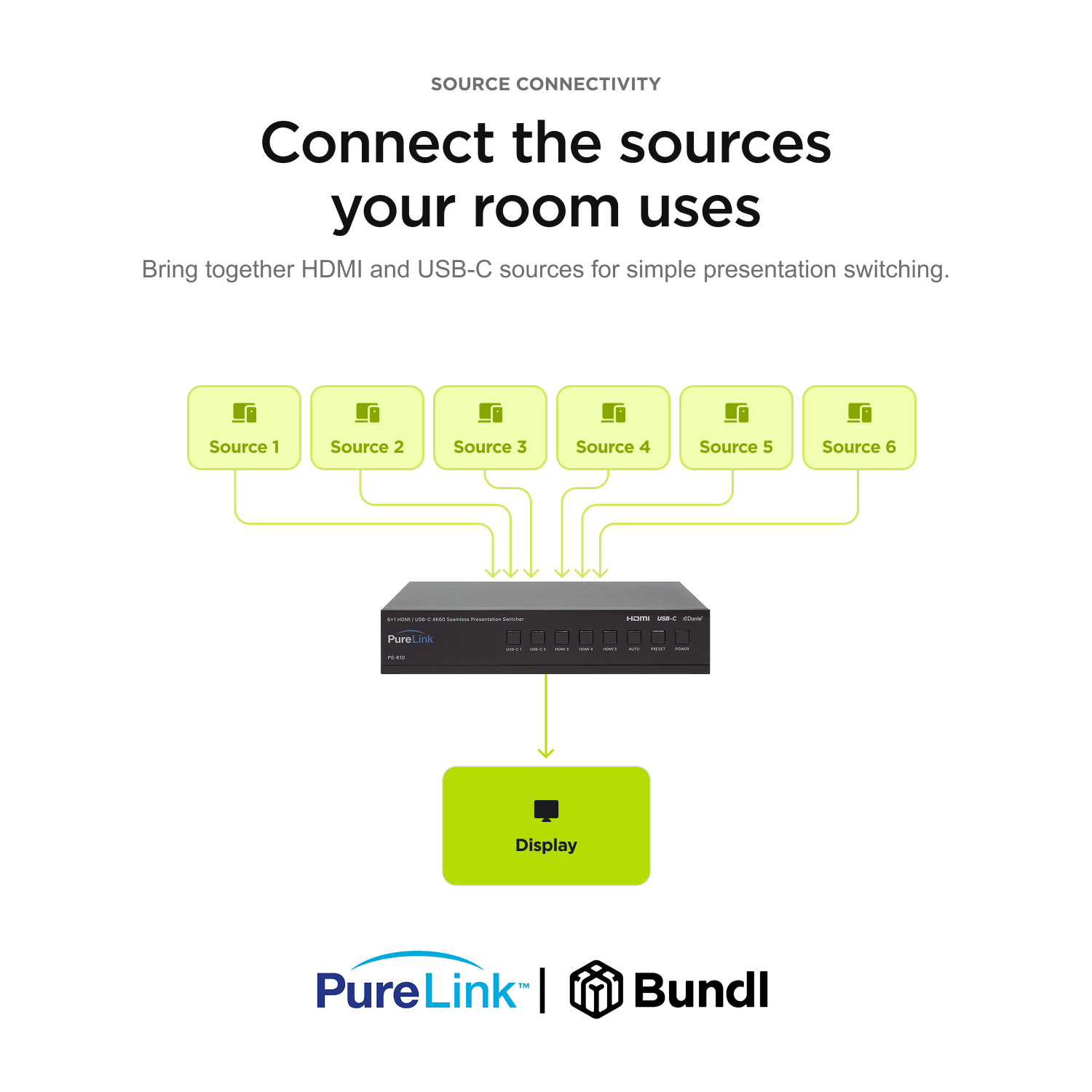

• Connect Up to Six Sources
• HDMI and USB-C Inputs
• Seamless Source Switching
• Multiview for Up to Four Sources
• Picture-in-Picture and Quad View

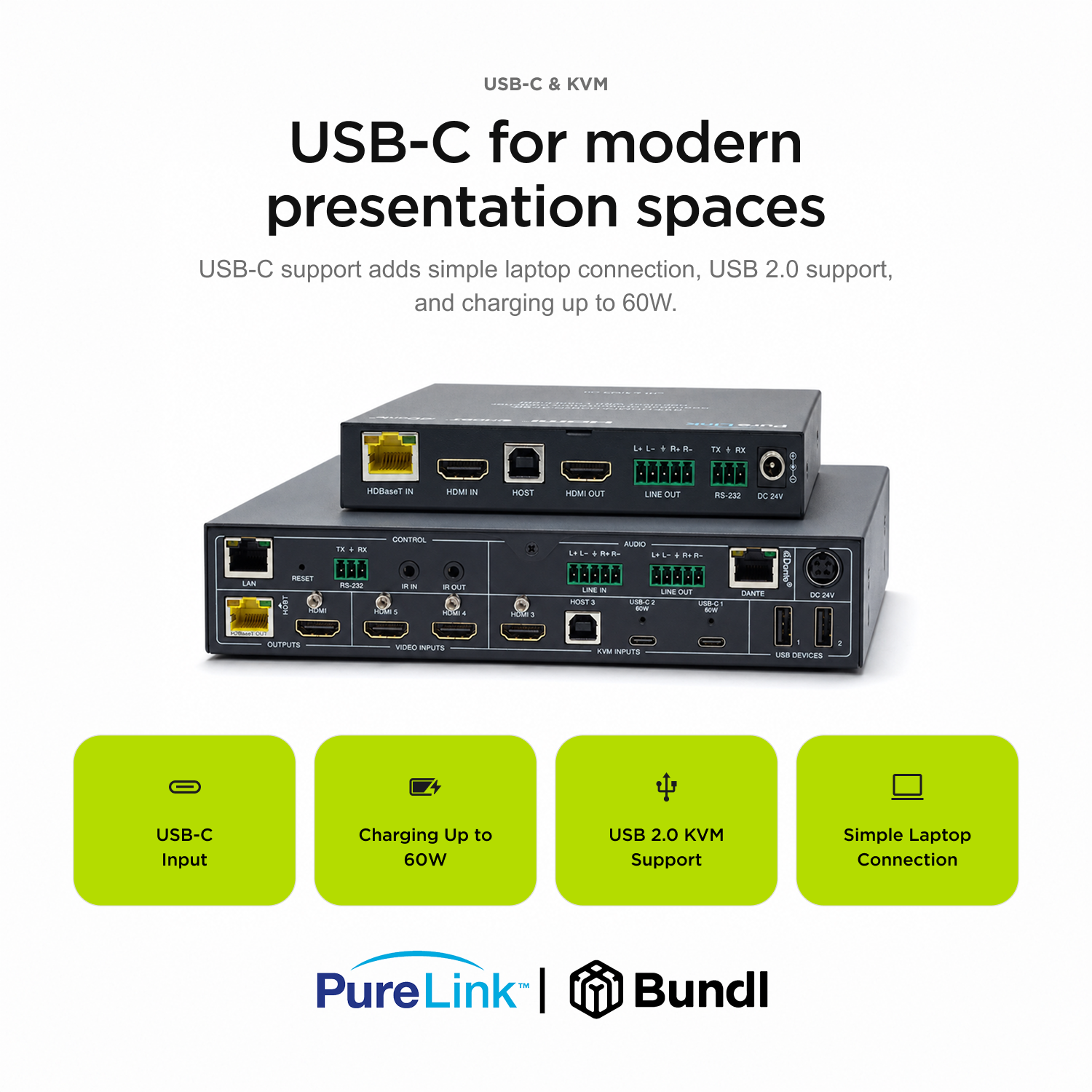

• USB-C Charging Up to 60W
• Dante Audio Input and Output
• Flexible Audio Embedding and De-Embedding
• Long-Distance Display Extension Included
• Auto or Manual Switching
• USB 2.0 KVM Support

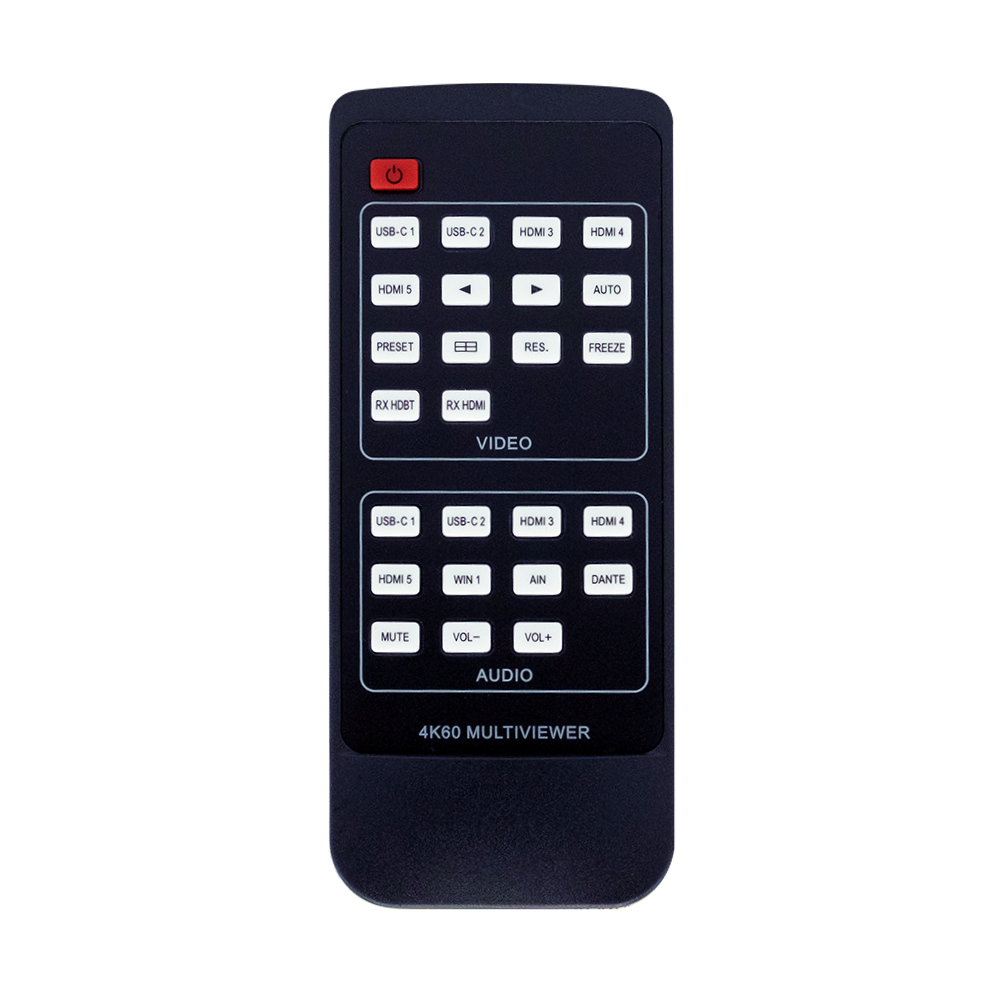

• Front-Panel, Remote, Web, and Third-Party Control
|
|
|
| UPC Code |
00817705025753 |
Specifications
|
Standards & Compliance |
|
|
Signal Standards |
HDMI 2.0b, DP 1.2 |
|
Switcher Connector Types |
|
|
HDMI Input |
3 × HDMI IN (Type A, 19-pin female) |
|
HDMI Output |
1 × HDMI OUT (Type A, 19-pin female) |
|
USB-C Input |
2 × USB-C IN (24-pin female) |
|
IR In |
1 × 3.5mm TRS |
|
IR Out |
1 × 3.5mm TRS |
|
RS-232 |
1 × 3-pin 3.5mm Phoenix |
|
Audio In |
1 × 5-pin Phoenix |
|
Audio Out |
1 × 5-pin Phoenix |
|
HDBT |
1 × LAN (RJ45) |
|
TCP/IP |
1 × LAN (RJ45) |
|
Dante |
1 × LAN (RJ45) |
|
USB Host |
1 × USB-B |
|
USB Devices |
2 × USB-A |
|

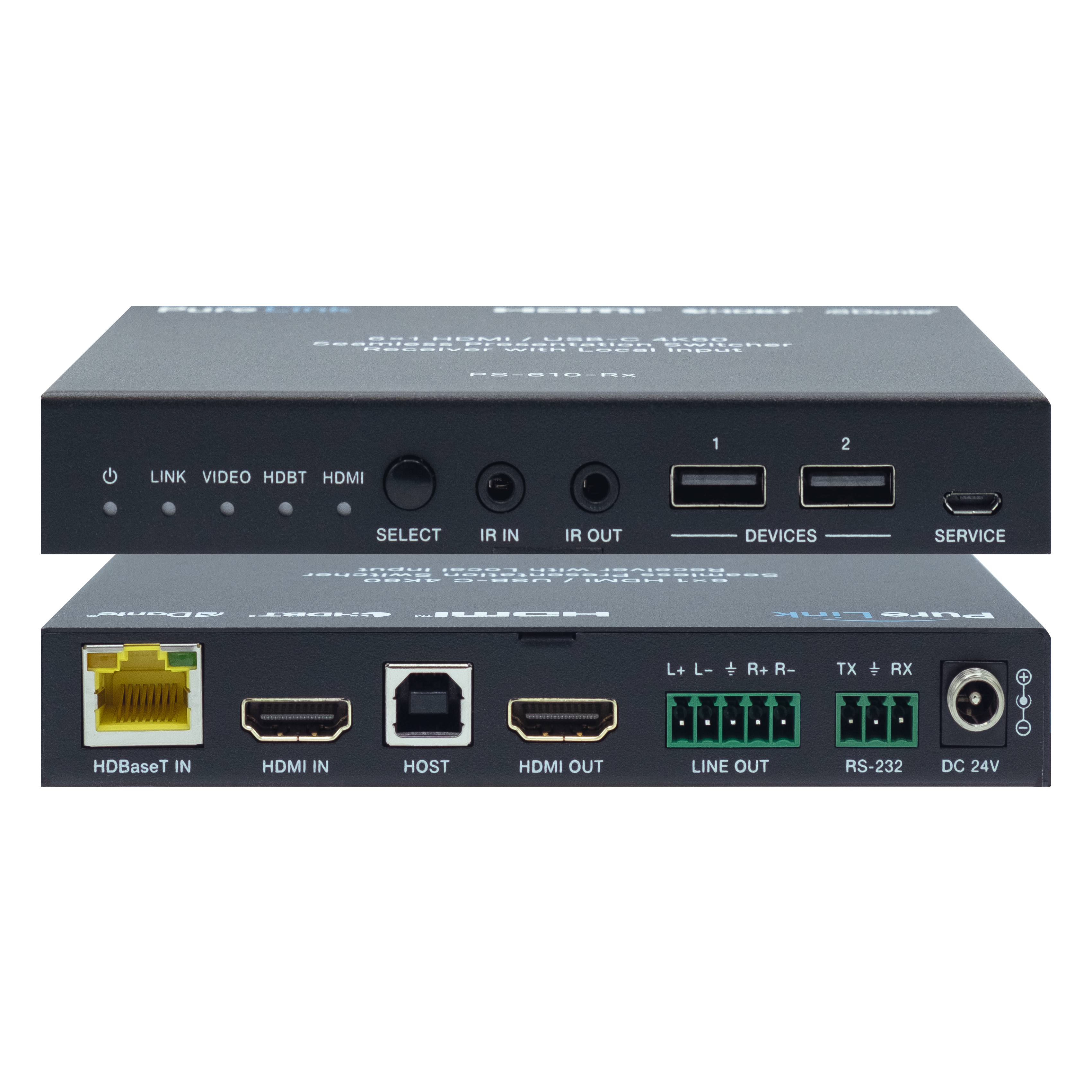

HDBaseT Receiver Connector Types |
|
|
HDMI Input |
1 × HDMI IN (Type A, 19-pin female) |
|
HDMI Output |
1 × HDMI OUT (Type A, 19-pin female) |
|
HDBT |
1 × LAN (RJ45) |
|
USB Host |
1 × USB-B |
|
USB Devices |
2 × USB-A |
|
Audio Out |
1 × 5-pin Phoenix |
|
IR In |
1 × 3.5mm TRS |
|
IR Out |
1 × 3.5mm TRS |
|
Service |
1 × Micro USB |
|
RS-232 |
1 × 3-pin 3.5mm Phoenix |
|
Performance |
|
|
CATx Transmission Distance |
4K2K@60: 40m, 4K2K@30: 70m, 1080P@60: 70m |
|
Transport |
HDBaseT 3.0 |
|
Max Video Resolution |
4K60 (4:4:4) |
|
Video Bandwidth |
18 Gbps |
|
Network Bandwidth |
100 Mbps |
|
USB Bandwidth |
TX USB DEVICES to TX HOST/USB-C: 480 Mbps, RX USB DEVICES to TX HOST/USB-C: 350 Mbps, RX USB DEVICES to RX HOST: 480 Mbps |
|
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 |
|
Color Depth |
Input: 8-bit, 10-bit, and 12-bit, 8-bit (4K60 4:4:4), Output: 8-bit |
|
HDR |
Input supports HDR, Output does not support HDR |
|
HDCP |
HDCP 2.2 |
|
USB-C Charging Port |
60W (max) |
|
Analog Balanced Audio Formats |
PCM 2.0Ch |
|
RS-232 Support |
Yes |
|
ESD Protection |
Human body model — ±8kV [air-gap discharge] & ±4kV [contact discharge] |
|
IR |
Bi-directional |
|
IR Level |
12Vp-p |
|
IR Frequency |
20K-60KHz |
|
Audio Sample Rate |
48KHz |
|
HDMI Audio Formats |
LPCM 2.0 |
|
Input Impedance |
10K Ohms |
|
Output Impedance |
330 Ohms |
|
Line Input Level (Maximum) |
8.2dBu (2Vrms) balanced or unbalanced audio |
|
Line Output Level (Maximum) |
8.2dBu (2Vrms) balanced audio , 2.2dBu (1Vrms) unbalanced audio |
|
Frequency Response |
(+0.5 dB, -1 dB) 20 Hz to 20 kHz |
|
Audio Output Sync Delay |
0 to 50ms |
|
Audio S/N Ratio |
93dB at 2Vrms, 1kHz A-weighted |
|
Audio THD+N Ratio |
<0.1% at 0dBV, 1kHz |
|
Output Impedance |
330 Ohms |
|
Line Output Level (Maximum) |
8.2dBu (2Vrms) balanced audio , 2.2dBu (1Vrms) unbalanced audio |
|
Frequency Response |
(+0.5 dB, -1 dB) 20 Hz to 20 kHz |
|
Audio Output Sync Delay |
0 to 50ms |
|
Audio S/N Ratio |
93dB at 2Vrms, 1kHz A-weighted |
|
Audio THD+N Ratio |
<0.1% at 0dBV, 1kHz |
|
Audio Formats |
LPCM 2.0 |
|
Sample Rate |
44.1, 48, 88.2 and 96KHz at 24 bits |
|
Audio Delay |
2ms, 3ms, 4ms, 5ms, 10ms |
|
Network Bandwidth |
100 Mbps |
|
Power Transmitter |
|
|
Power Input |
DC 24V/8A |
|
Power Supply |
AC 100 - 240V 50/60Hz |
|
Power Consumption |
150W (max) |
|
Power Receiver |
|
|
Power Supply |
AC 100 - 240V 50/60Hz |
|
Environment |
|
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Storage Temperature |
-4 to 140°F / -20 to 60°C |
|
Relative Humidity |
20 to 90% |
|
Enclosure |
|
|
Product Dimensions (W × D × H) |
Matrix: 8.66 in × 5.91 in × 1.73 in (220mm × 150mm × 44mm)
RX: 5.51 in × 4.13 in × 0.85 in (140mm × 105mm × 21.5mm) |
|
Weight |
Matrix: 2.67 lbs (1.21kg)
RX: 0.93 lbs (424g) |
|
Warranty |
|
|
Parts |
5 year |
|
Labor |
5 year |
