PureLink’s PushGo Kirkwood gives restaurants, worship spaces, fitness centers, and hospitality venues a simple way to manage content across multiple screens. It arrives fully pre-programmed and ready for same-day setup, with the essential hardware, cabling, switching, and touchscreen control included in one complete system.
Kirkwood is built for spaces that need reliable multi-screen content routing from one central system. Show live TV in a restaurant, announcements in a lobby, presentation content in a worship space, or media across a fitness center, all while keeping control simple for your team.
With support for up to eight source connections and eight display connections, Kirkwood lets you send the right content to the right screen without complicated day-to-day operation. Its professional 4K video distribution helps keep content clear and polished, while long-distance signal extension gives you more flexibility when displays are placed throughout your venue.
At the center is a premium 10” touchscreen that makes it easy to switch sources, route content, and manage your display system from one intuitive interface. PushGo Kirkwood delivers the performance of a professional multi-display setup, without the complexity of building one from scratch.
Customization Available: Each PushGo package can be tailored to your space, including hardware options and deployment size. Contact us to build the right system for your venue.
Key Features
• Fully pre-programmed and ready to use
• Plug-and-play for same-day setup
• Premium 10” touchscreen with easy control of your display system
• Designed for restaurants, worship spaces, fitness centers, and hospitality venues
• Route content across multiple screens from one central system
• Supports up to eight source connections and eight display connections
• Professional 4K video distribution for clear, polished visuals
• Matrix-based routing for dependable multi-screen layouts
• Long-distance signal extension up to 490 feet over CATx cabling
• Audio integration support for compatible sound systems
• Includes essential hardware, switching, control, and full cabling kit
• Customizable hardware options and deployment sizes available
|
|
| What's Included |
• 1 × PureLink iCON-T10 Tabletop Touchscreen Controller • 1 × PureLink iCON-E1 Control Expander • 1 × TL-SG108PE 8-Port Network Switch • 1 × PureLink HTX III-8800 Video Encoder • 8 × PureLink HTX III-8800 Video Decoders • Full Cabling Kit
|
| UPC Code |
00817705026781 |
|
|
Specifications
PureLink iCON-T10 Tabletop Touchscreen Controller
|
Standards & Compliance
|
|
|
Compliance
|
TAA
|
|
Regulatory Certifications
|
CE, FCC, RoHS, UL
|
|
Communications & Control
|
|
|
Programming
|
iCON EZControl IDE
|
|
Control Protocol
|
LAN (TCP/IP), RS‑485 (bi‑directional)
|
|
Control Ports
|
LAN, RS-485 |
|
Control Connector Type
|
RJ45, 3.81mm Phoenix Connector (3-pin) |
|
Mechanical Features
|
|
|
Touch Panel Size
|
10 in |
|
Touch Panel Resolution
|
1280×800 |
|
Network Port
|
1 × LAN (RJ45)
|
|
RS-232/485 Port
|
1 × 3.81mm Phoenix Connector (3-pin)
|
|
Debug
|
1 × Micro USB
|
|
Power
|
|
|
Power Input
|
PoE (IEEE 802.3af), DC 24V/1A via 2‑pin Phoenix
|
|
Power Supply
|
Alternative Power 100-240VAC |
|
Power Consumption
|
6W (max) |
|
Environment
|
|
|
Operating Temperature
|
32 to 104°F / 0 to 40°C |
|
Relative Humidity
|
10 to 90% RH (no condensation) |
|
Enclosure
|
|
|
Mounting Option
|
Table |
|
Product Dimensions (W × D × H)
|
9.66 in × 6.46 in × 1.06 in (245.4mm × 164mm × 27mm)
|
|
Weight
|
1.96 lbs (887g)
|
|
Warranty
|
|
|
Parts
|
5 year |
|
Labor
|
5 year |
PureLink iCON-E1 Control Expander
| Standards & Compliance |
|
|
Compliance
|
TAA
|
|
Regulatory Certifications
|
FCC, CE, RoHS, UKCA
|
|
Communications & Control
|
|
|
Programming
|
iCON EZControl IDE
|
|
Control Protocol
|
LAN (TCP/IP), RS‑232 (bi‑directional), RS‑485 (bi‑directional), IR, I/O, Relay
|
|
Control Ports
|
LAN, RS-232, RS-485, IR, I/O
|
|
Control Connector Type
|
RJ45, Mini Phoenix (3.81mm), Mini Phoenix 5 Pin (3.81mm), Mini Phoenix 2 Pin (3.81mm)
|
|
Power
|
|
|
Power Input
|
PoE (IEEE 802.3af), 12-24V DC / 1A via 2‑pin phoenix
|
|
Power Supply
|
AC 100 - 240V 50/60Hz
|
|
Power Consumption
|
0.48W (max)
|
|
Environment
|
|
|
Operating Temperature
|
32 to 104°F / 0 to 40°C
|
|
Storage Temperature
|
4 to 140°F / 0 to 60°C
|
|
Relative Humidity
|
20 to 90% RH (no condensation)
|
|
Enclosure
|
|
|
Rack Mounting Option
|
No
|
|
Product Dimensions (W × D × H)
|
5.79 in × 5.12 in × 1.65 in (147mm × 130mm × 42mm)
|
|
Weight
|
1.48 lbs (673g)
|
|
Warranty
|
|
|
Parts
|
5 year
|
|
Labor
|
5 year
|

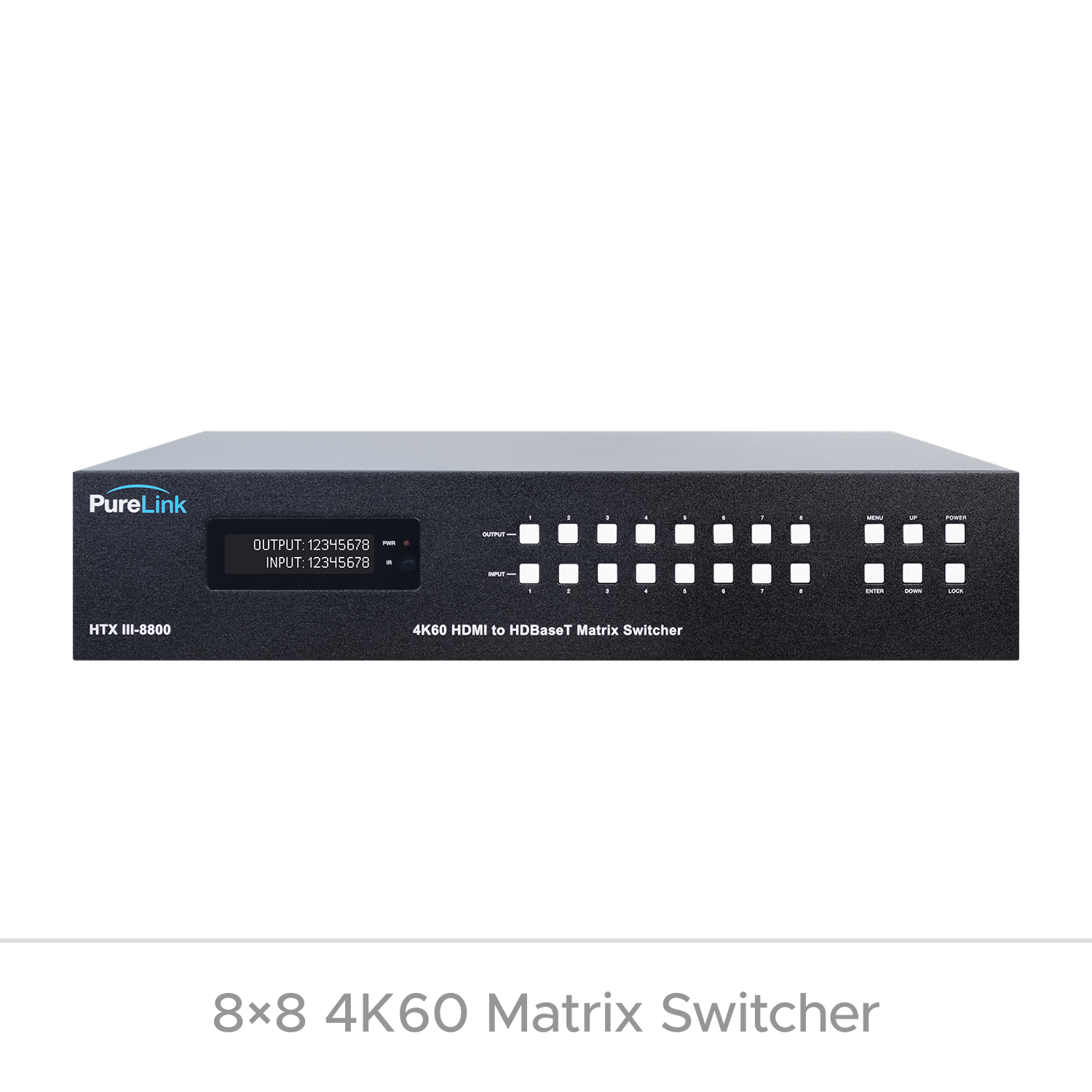

PureLink HTX III-8800 8×8 4K60 Matrix Switcher & HDBaseT Receiver
|
Standards & Compliance
|
|
|
Signal Standards
|
HDMI 2.0b
|
|
Matrix Connector Types
|
|
|
HDMI Input
|
8 × HDMI IN (Type A, 19-pin female)
|
|
HDMI Output
|
8 × HDMI OUT (Type A, 19-pin female)
|
|
IR In
|
9 × 3.5mm TRS
|
|
IR Out
|
IR Out
|
|
RS-232
|
1 × DB9 female
|
|
Coaxial Audio
|
8 × 3.5mm TRS
|
|
Balanced Analog Audio
|
4 × 5-pin Phoenix
|
|
HDBT
|
8 × LAN (RJ45)
|
|
TCP/IP
|
1 × LAN (RJ45)
|
|

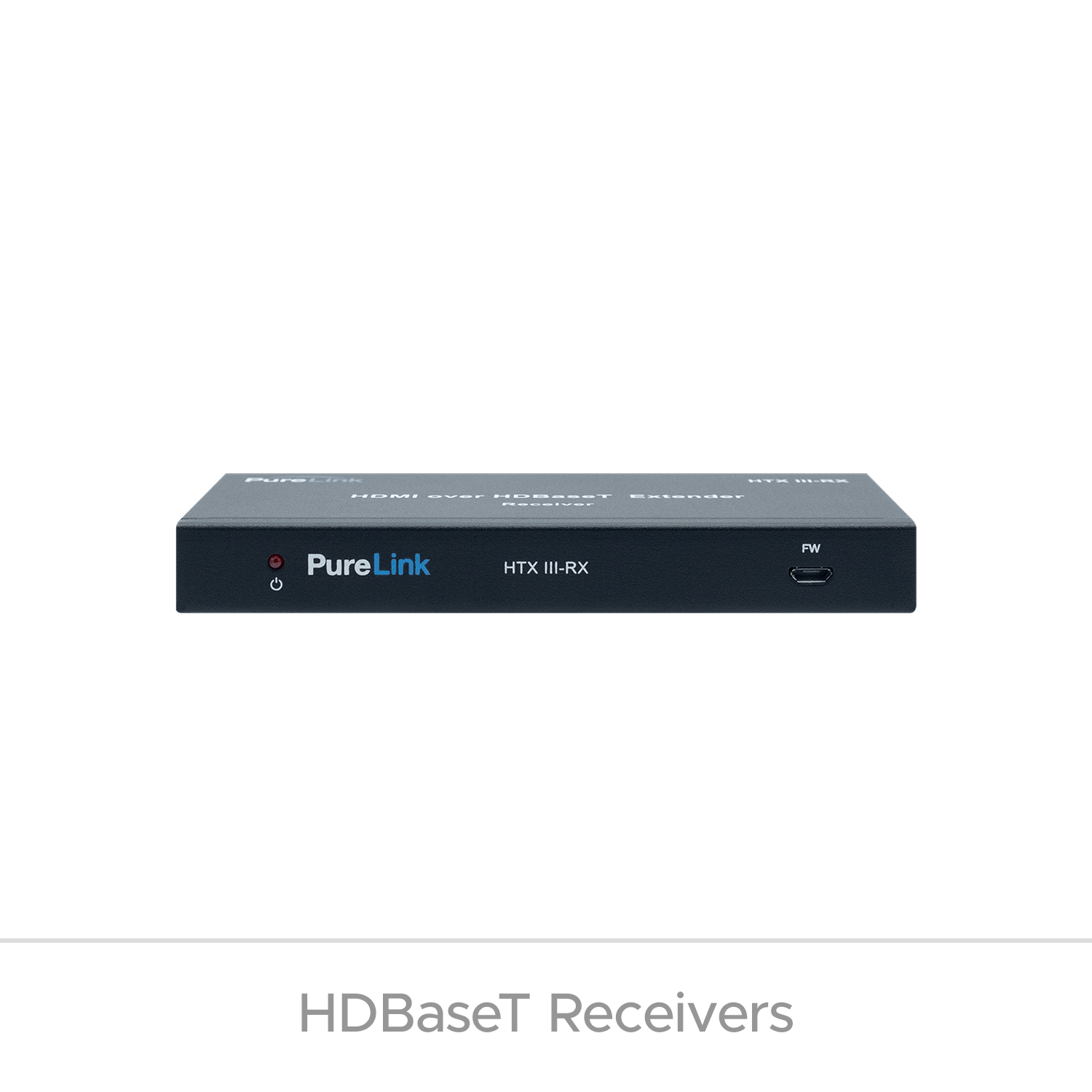

HDBaseT Receiver Connector Types
|
|
|
HDMI Output
|
1 × HDMI OUT (Type A, 19-pin female)
|
|
HDBT
|
1 × LAN (RJ45)
|
|
IR In
|
1 × 3.5mm TRS
|
|
IR Out
|
1 × 3.5mm TRS
|
|
Service
|
1 × Micro USB
|
|
RS-232
|
1 × 3-pin Phoenix
|
|
Performance
|
|
|
CATx Transmission Distance
|
4K2K@60: 150m
|
|
Max Video Resolution
|
4K60 (4:4:4)
|
|
HDR
|
HDR 10 , HDR 10+, HLG
|
|
HDCP
|
HDCP 2.2
|
|
Dolby Vision
|
Dolby Vision
|
|
HDMI Audio Formats
|
LPCM, Up to 7.1 channels 192 KHz, Dolby Digital Plus, Dolby TrueHD, DTS-ES, DTS-HD Master Audio, DTS-X, DTS HD-HRA, Dolby Digital
|
|
Coax Audio Formats
|
PCM 2.0, DTS 2.0 / 5.1, Dolby Digital Plus, Dolby Digital
|
|
Analog Balanced Audio Formats
|
PCM 2.0Ch
|
|
IR
|
Bi-directional
|
|
Power Transmitter
|
|
|
Power Input
|
DC 24V/1A
|
|
Power Supply
|
AC 100 - 240V 50/60Hz
|
|
Power Consumption
|
60W (max)
|
|
Power Receiver
|
|
|
Power Input
|
DC 24V/1A
|
|
Power Supply
|
AC 100 - 240V 50/60Hz
|
|
Power Consumption
|
60W (max)
|
|
Environment
|
|
|
Operating Temperature
|
32 to 104°F / 0 to 40°C
|
|
Storage Temperature
|
-4 to 140°F / -20 to 60°C
|
|
Relative Humidity
|
20 to 90%
|
|
Enclosure
|
|
|
Product Dimensions (W × D × H)
|
Matrix: 17.32 in × 14.25 in × 3.75 in (440mm × 361.95mm × 95.25mm)
RX: 5.51 in × 2.56 in × 0.71 in (140mm × 65mm × 18mm)
|
|
Weight
|
Matrix: 6.83 lbs (3.1kg)
RX: 0.34 lbs (155g)
|
|
Warranty
|
|
|
Parts
|
5 year
|
|
Labor
|
5 year
|

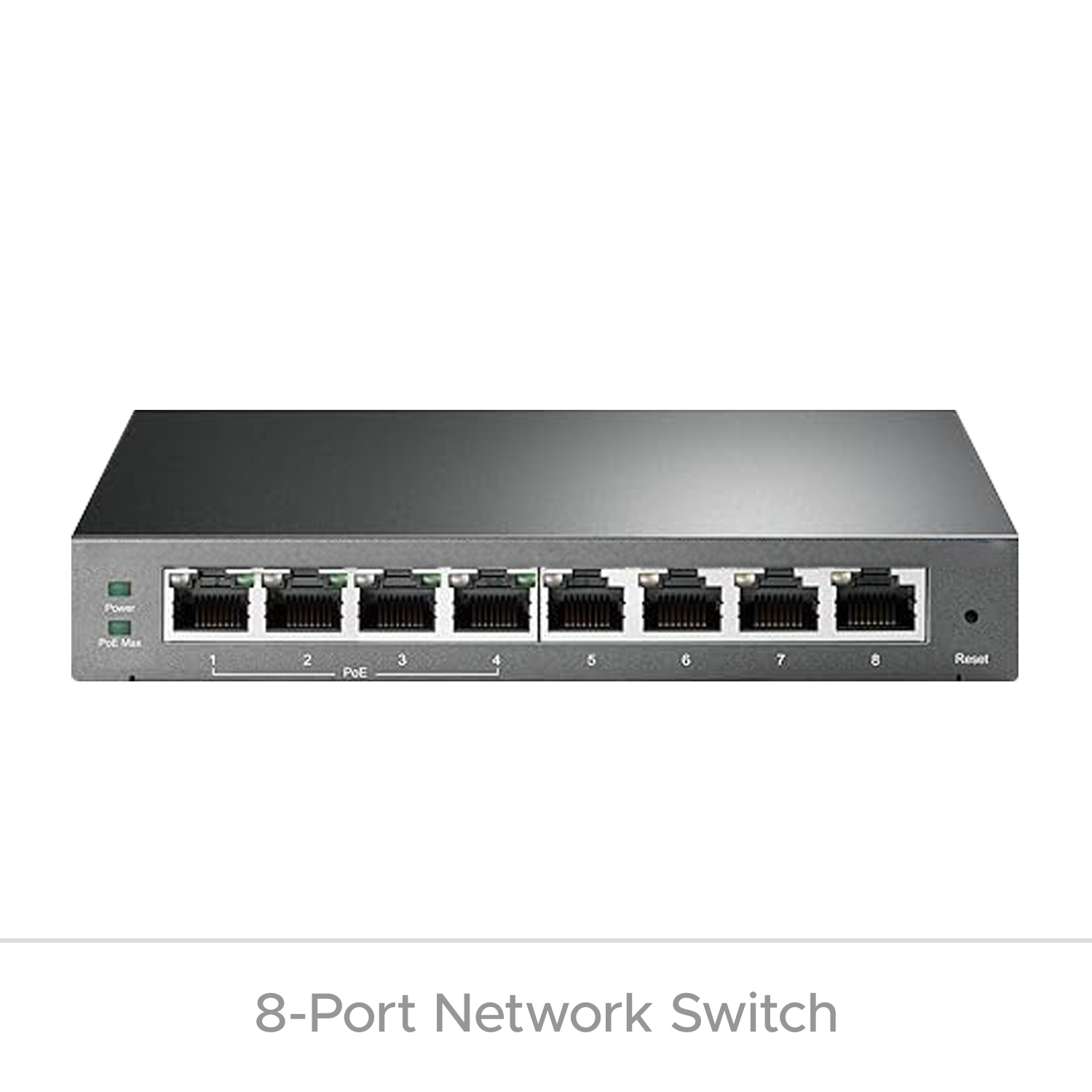

TL-SG108PE 8-Port Network Switch
|
Connector Types & Features
|
|
|
Ports
|
4 × PoE+ ports, 8 × Gigabit RJ45 ports
|
|
Switching Capacity
|
16 Gbps
|
|
Packet Forwarding Rate
|
11.9 Mpps
|
|
Packet Buffer Memory
|
1.5 Mb
|
|
Jumbo Frame
|
15 KB
|
|
Power
|
|
|
Power Consumption
|
74.27W (max)
|
|
Enclosure
|
|
|
Product Dimensions (W × D × H)
|
6.2 in × 4.0 in × 1.0 in (158mm × 101mm × 25mm)
|
|
Warranty
|
|
|
Parts
|
3 year
|
|
Labor
|
3 year
|
