PureLink’s PushGo Telluride gives restaurants, worship spaces, fitness centers, and hospitality venues a flexible way to manage content across multiple displays using AV-over-IP technology. It arrives fully pre-programmed and ready for same-day setup, with the essential hardware, cabling, switching, and touchscreen control included in one complete system.
Telluride is built for larger spaces, growing venues, and layouts that need more flexibility over time. Show live TV in a restaurant, camera feeds in a worship space, announcements in a lobby, or media across a fitness center, all while keeping control simple for your team.
With a base configuration that supports eight source connections and eight display connections, Telluride gives your venue a scalable foundation for multi-display content distribution. Its network-based AV-over-IP design makes it ideal for spaces with wider coverage areas, multi-zone layouts, or future expansion needs.
At the center is a premium 10” touchscreen that makes it easy to switch sources, route content, and manage your display system from one intuitive interface. PushGo Telluride delivers the flexibility of a professional network-based display system, without the complexity of building one from scratch.
Customization Available: Each PushGo package can be tailored to your space, including hardware options and deployment size. Contact us to build the right system for your venue.
Key Features
• Fully pre-programmed and ready to use
• Plug-and-play for same-day setup
• Premium 10” touchscreen with easy control of your display system
• Designed for restaurants, worship spaces, fitness centers, and hospitality venues
• Network-based AV-over-IP routing for flexible multi-display layouts
• Base configuration supports eight source connections and eight display connections
• Scalable design for larger venues, growing spaces, and multi-zone layouts
• Route live TV, camera feeds, presentations, announcements, or media throughout your space
• Full HD streaming across network infrastructure
• Audio embedding and de-embedding for compatible sound system integration
• Includes essential hardware, switching, control, and full cabling kit
• Customizable hardware options and deployment sizes available
|
|
| What's Included |
• 1 × PureLink iCON-T10 Tabletop Touchscreen Controller • 1 × PureLink iCON-E1 Control Expander • 1 × NICGIGA 24-Port PoE Network Switch • 8 × PureLink VIP-150-E AV-over-IP Encoders • 8 × PureLink VIP-150-D AV-over-IP Decoders • Full Cabling Kit
|
| UPC Code |
00817705026798 |
|
|
Specifications
PureLink iCON-T10 Tabletop Touchscreen Controller
|
Standards & Compliance
|
|
|
Compliance
|
TAA
|
|
Regulatory Certifications
|
CE, FCC, RoHS, UL
|
|
Communications & Control
|
|
|
Programming
|
iCON EZControl IDE
|
|
Control Protocol
|
LAN (TCP/IP), RS‑485 (bi‑directional)
|
|
Control Ports
|
LAN, RS-485 |
|
Control Connector Type
|
RJ45, 3.81mm Phoenix Connector (3-pin) |
|
Mechanical Features
|
|
|
Touch Panel Size
|
10 in |
|
Touch Panel Resolution
|
1280×800 |
|
Network Port
|
1 × LAN (RJ45)
|
|
RS-232/485 Port
|
1 × 3.81mm Phoenix Connector (3-pin)
|
|
Debug
|
1 × Micro USB
|
|
Power
|
|
|
Power Input
|
PoE (IEEE 802.3af), DC 24V/1A via 2‑pin Phoenix
|
|
Power Supply
|
Alternative Power 100-240VAC |
|
Power Consumption
|
6W (max) |
|
Environment
|
|
|
Operating Temperature
|
32 to 104°F / 0 to 40°C |
|
Relative Humidity
|
10 to 90% RH (no condensation) |
|
Enclosure
|
|
|
Mounting Option
|
Table |
|
Product Dimensions (W × D × H)
|
9.66 in × 6.46 in × 1.06 in (245.4mm × 164mm × 27mm)
|
|
Weight
|
1.96 lbs (887g)
|
|
Warranty
|
|
|
Parts
|
5 year |
|
Labor
|
5 year |
PureLink iCON-E1 Control Expander
| Standards & Compliance |
|
|
Compliance
|
TAA
|
|
Regulatory Certifications
|
FCC, CE, RoHS, UKCA
|
|
Communications & Control
|
|
|
Programming
|
iCON EZControl IDE
|
|
Control Protocol
|
LAN (TCP/IP), RS‑232 (bi‑directional), RS‑485 (bi‑directional), IR, I/O, Relay
|
|
Control Ports
|
LAN, RS-232, RS-485, IR, I/O
|
|
Control Connector Type
|
RJ45, Mini Phoenix (3.81mm), Mini Phoenix 5 Pin (3.81mm), Mini Phoenix 2 Pin (3.81mm)
|
|
Power
|
|
|
Power Input
|
PoE (IEEE 802.3af), 12-24V DC / 1A via 2‑pin phoenix
|
|
Power Supply
|
AC 100 - 240V 50/60Hz
|
|
Power Consumption
|
0.48W (max)
|
|
Environment
|
|
|
Operating Temperature
|
32 to 104°F / 0 to 40°C
|
|
Storage Temperature
|
4 to 140°F / 0 to 60°C
|
|
Relative Humidity
|
20 to 90% RH (no condensation)
|
|
Enclosure
|
|
|
Rack Mounting Option
|
No
|
|
Product Dimensions (W × D × H)
|
5.79 in × 5.12 in × 1.65 in (147mm × 130mm × 42mm)
|
|
Weight
|
1.48 lbs (673g)
|
|
Warranty
|
|
|
Parts
|
5 year
|
|
Labor
|
5 year
|

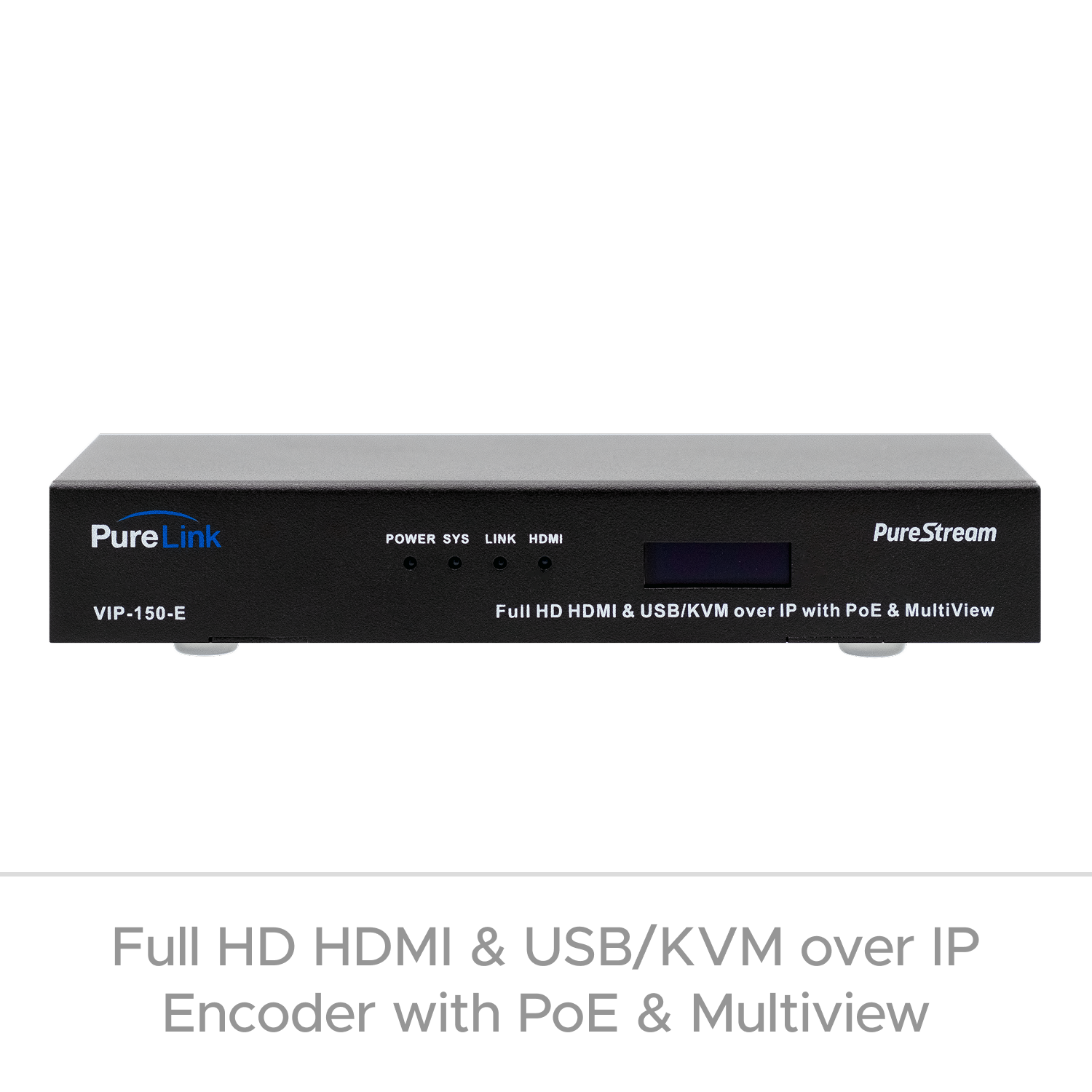

PureLink VIP-150-E AV-over-IP Encoder
|
Standards & Compliance
|
|
|
Signal Standards
|
CAT6A, CAT5e, HDMI 1.4
|
|
Connections
|
|
|
HDMI Input
|
1 × HDMI IN (Type A, 19-pin female)
|
|
USB Devices
|
1 × USB-B
|
|
IR In
|
3.5mm TRS
|
|
Audio In
|
3.5mm 3-pin Phoenix
|
|
CatX
|
1 × LAN (RJ45)
|
|
RS-232
|
3.5mm 3-pin Phoenix
|
|
IR Out
|
3.5mm TRS
|
|
Performance
|
|
|
Audio Formats
|
LPCM, PCM
|
|
Codec
|
H.264/265
|
|
Max Video Resolution
|
1920×1080p60
|
|
Max Distance
|
100M via CAT6a
|
|
HDCP
|
HDCP 1.4
|
|
IR Extension
|
3.5mm 3-pin Phoenix
|
|
Web GUI
|
PureLink PCManagerTool
|
|
Latency
|
80-120 ms
|
|
PoE (Power Over Ethernet)
|
Yes
|
|
Power Supply (Optional)
|
12V DC Input
|
|
RS-232
|
Bi-directional RS-232, RS-232 Extension
|
|
IR Bandwidth
|
7 Mbps
|
|
Control & Communication
|
|
|
Control Ports
|
RS-232, IR, UDP
|
|
API
|
JSON
|
|
Control Software
|
iCON, iCON-Lite
|
|
RS-232
|
Yes
|
|
Power
|
|
|
Power Input
|
PoE (IEEE 802.3af)
|
|
Power Supply
|
DC 12V/1.5A
|
|
Enclosure
|
|
|
Rack Mounting Option
|
Rack Ears
|
|
Product Dimensions (W × D × H)
|
6.1 in × 3.7 in × 1 in (155mm × 95mm × 25mm)
|
|
Weight
|
1.5 lbs (680.38g)
|
|
Warranty
|
|
|
Parts
|
5 year
|
|
Labor
|
5 year
|

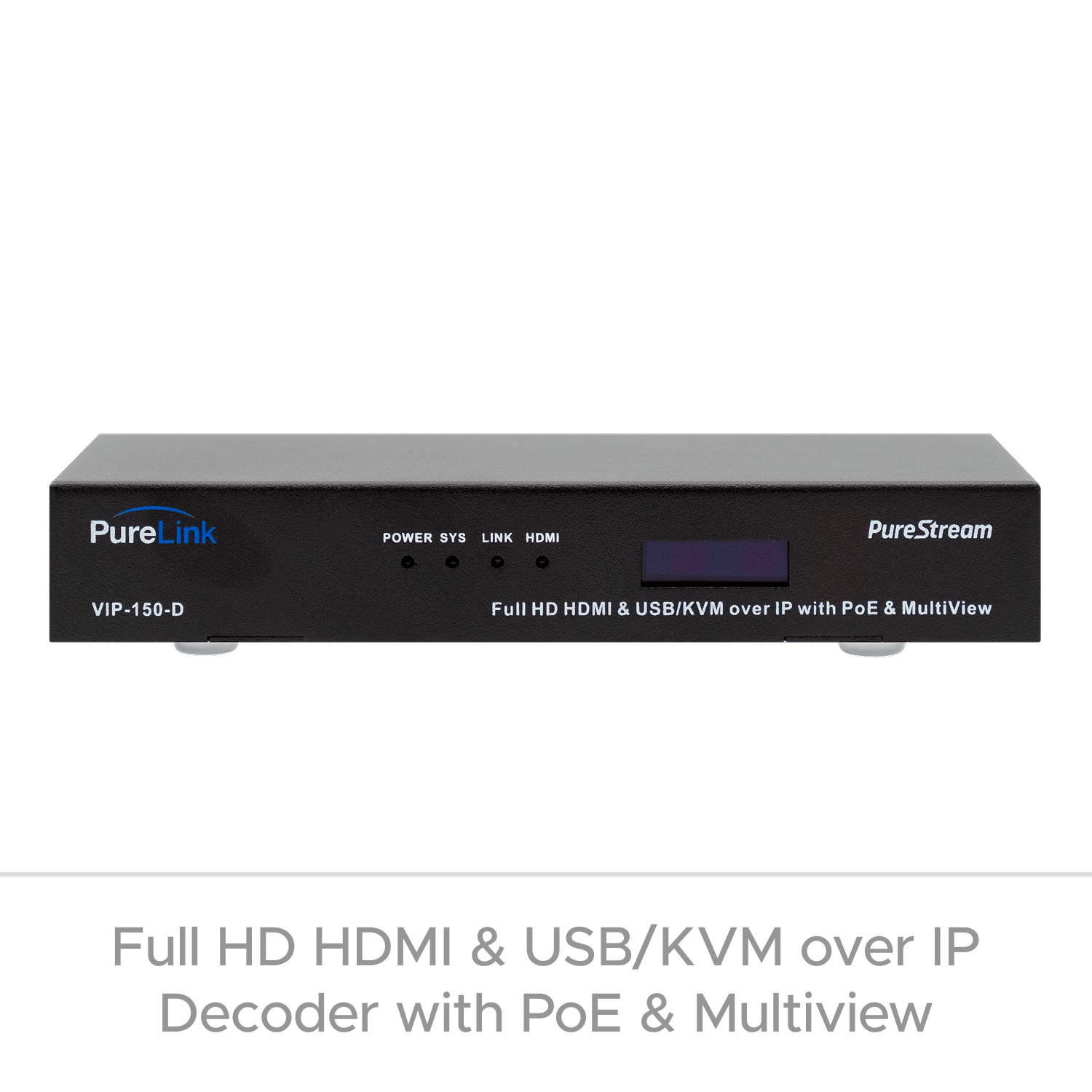

PureLink VIP-150-D AV-over-IP Decoder
|
Standards & Compliance
|
|
|
Signal Standards
|
CAT6A, CAT5e, HDMI 1.4
|
|
Connections
|
|
|
USB Device
|
2 × USB-A
|
|
IR In
|
3.5mm TRS
|
|
Audio In
|
3.5mm TRS
|
|
HDMI Output
|
1 × HDMI OUT (Type A, 19-pin female)
|
|
CatX
|
1 × LAN (RJ45)
|
|
RS-232
|
3.5mm Phoenix (3-pin)
|
|
IR Out
|
3.5mm TRS
|
|
LAN (PoE)
|
IEEE 802.3af
|
|
Performance
|
|
|
Audio Formats
|
LPCM, PCM
|
|
Codec
|
H.264/265
|
|
Max Video Resolution
|
1920×1080p60
|
|
Max Distance
|
100M via CAT6a
|
|
HDCP
|
HDCP 1.4
|
|
IR Extension
|
3.5mm 3-pin Phoenix
|
|
Web GUI
|
PureLink PCManagerTool
|
|
Latency
|
80-120 ms
|
|
PoE (Power Over Ethernet)
|
Yes
|
|
Power Supply (Optional)
|
12V DC Input
|
|
RS-232
|
Bi-directional RS-232, RS-232 Extension
|
|
IR Bandwidth
|
7 Mbps
|
|
Control & Communication
|
|
|
Control Ports
|
RS-232, IR, UDP
|
|
API
|
JSON
|
|
Control Software
|
iCON, iCON-Lite
|
|
RS-232
|
Yes
|
|
Power
|
|
|
Power Input
|
PoE (IEEE 802.3af)
|
|
Power Supply
|
DC 12V/1.5A
|
|
Environment
|
|
|
Operating Temperature
|
−4°F to 140°F / −20°C to 60°C
|
|
Relative Humidity
|
10 to 90% RH (no condensation)
|
|
Enclosure
|
|
|
Rack Mounting Option
|
Rack Ears
|
|
Product Dimensions (W × D × H)
|
6.1 in × 3.7 in × 1 in (155mm × 95mm × 25mm)
|
|
Warranty
|
|
|
Parts
|
5 year
|
|
Labor
|
5 year
|
NICGIGA 24-Port PoE Network Switch
|
Connector Types & Features
|
|
|
Ports
|
24 × PoE+ ports, 2 × Gigabit RJ45 ports
|
|
PoE+ Ports
|
8 × 10/100/1000Mbps RJ45 Port Support PoE Supply
|
|
Switching Capacity
|
12 Gbps
|
|
Power
|
|
|
Power Input
|
110V~240V,50HZ
|
|
Power Consumption
|
120W (max) , PoE: 30W (max)
|
|
Environment
|
|
|
Operating Temperature
|
50° to 131°F (10° to 55°C)
|
|
Enclosure
|
|
|
Product Dimensions (W × D × H)
|
6.2 in × 4.0 in × 1.0 in (158mm × 101mm × 25mm)
|
|
Weight
|
2.6 lbs (1.2kg)
|
|
Warranty
|
|
|
Parts
|
1 year
|
|
Labor
|
1 year
|
