Wirelessly extend a PC, Mac, or HDMI source to one display with the PureLink Wireless HDMI Collaboration Hub. Built for simple meeting room connectivity, the ECOH Plus allows users to share content without running long cables across the room or installing extra apps or software.

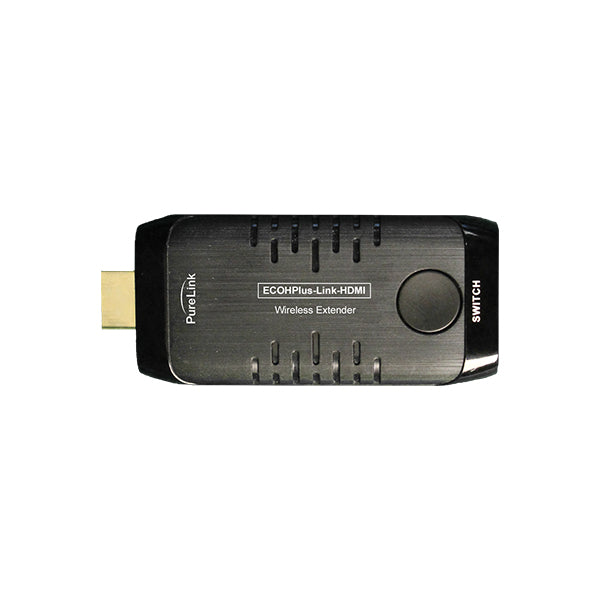

The included ECOH Plus Link Connector plugs into an HDMI source, making it easy to present from a laptop, media player, streaming device, or other compatible equipment. The system supports up to eight total connected users, with one user shown on screen at a time. Full HD 1080p streaming keeps presentations, documents, videos, and shared content clear for everyday collaboration.
Plug-and-play operation and button-based switching make the PureLink Wireless HDMI Collaboration Hub a practical, no-hassle solution for meeting rooms, classrooms, training spaces, and shared work areas that need simple wireless connectivity to a single display.
Key Features
• Wireless HDMI Extension
• Support for 1080p Video
• Extend PC, Mac, or HDMI Sources
• Supports Up to Eight Total Users
• One User on Screen at a Time
• No App or Software Required
• Simple Button-Based Switching
• Transmission Up to 65 Feet
• HDMI-Powered Link Connector
• Includes Base Station and Link Connector

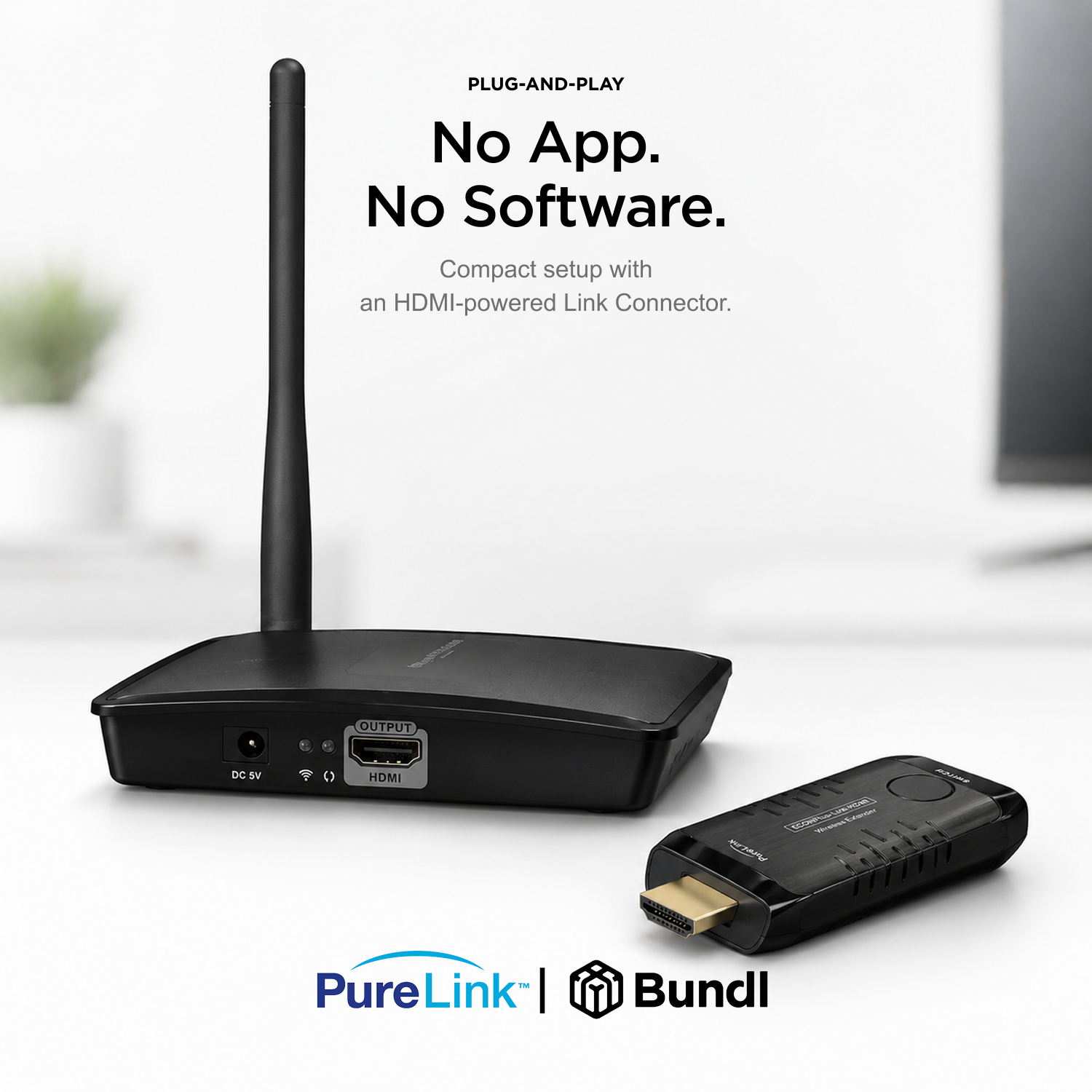

• Compact, Plug-and-Play Setup
Specifications
|
Standards & Compliance
|
|
|
Signal Standards
|
HDMI 1.3
|
|
HDCP
|
HDCP 1.2
|
|
TX Connector Types
|
|
|
HDMI Input
|
1 × HDMI IN (Type A, 19-pin male)
|
|
USB Input
|
1 × Micro USB
|
|
RX Connector Types
|
1 × 3.5mm TRS
|
|
HDMI Output
|
1 × HDMI OUT (Type A, 19-pin female)
|
|
Performance
|
|
|
Max Video Resolution
|
1920×1080p60
|
|
Video Bandwidth
|
4.95 Gbps
|
|
Transport
|
5G Wireless Transmission |
|
Transmission Distance
|
15m
|
|
Protection Level
|
IEC 61000-4-2, 1a Contact Discharge level 3, 1b Air discharge level 3
|
|
Input TMDS Signal
|
0.7 ~ 1.2Vp-p (TMDS)
|
|
Input DDC Signal
|
5Vp-p (TTL)
|
|
Latency
|
<200 ms
|
|
Power Transmitter
|
|
|
Power Input
|
DC 5V/1A
|
|
Power Consumption
|
2.5W (Max)
|
|
Power Receiver
|
|
|
Power Input
|
DC 5V/2A |
|
Power Supply
|
AC 100 - 240V 50/60Hz |
|
Power Consumption
|
5W (max) |
|
Environment
|
|
|
Operating Temperature
|
32 to 122°F / 0 to 50°C
|
|
Storage Temperature
|
-4 to 158°F / -10 to 70°C |
|
Relative Humidity
|
0 to 90%
|
|
Enclosure
|
|
|
Product Dimensions (W × D × H)
|
TX: 1.53 in × 3.49 in × 0.6 in (38.92mm × 88.75mm × 15.26mm)
RX: 3.37 in × 5.44 in × 0.76 in (85.58mm × 138.11mm × 19.18mm)
|
|
Weight
|
TX: 0.04 lbs (20g)
RX: 0.26 lbs (120g)
|
|
Warranty
|
|
|
Parts
|
3 year |
|
Labor
|
3 year |
