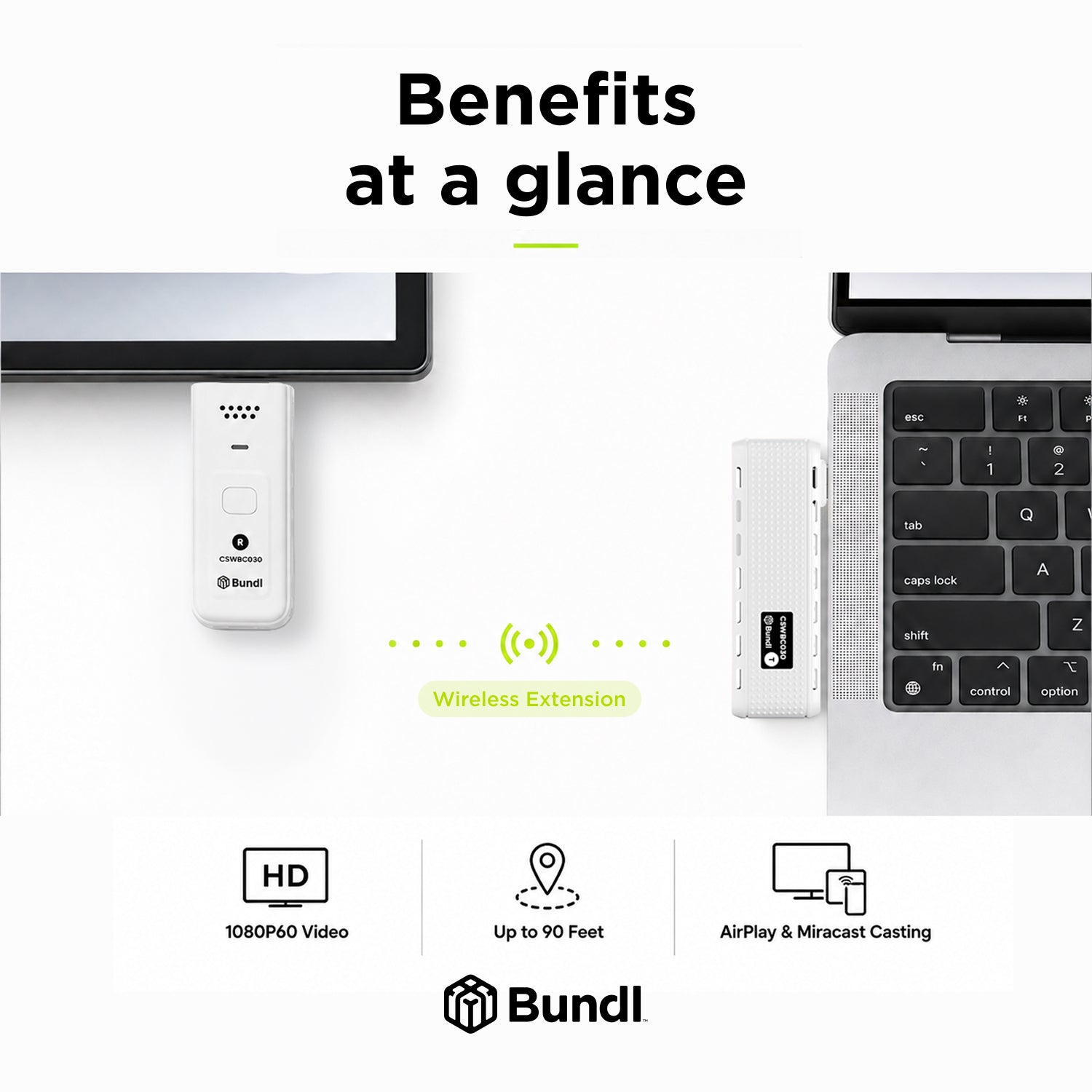

• Support for 1080P60 Video

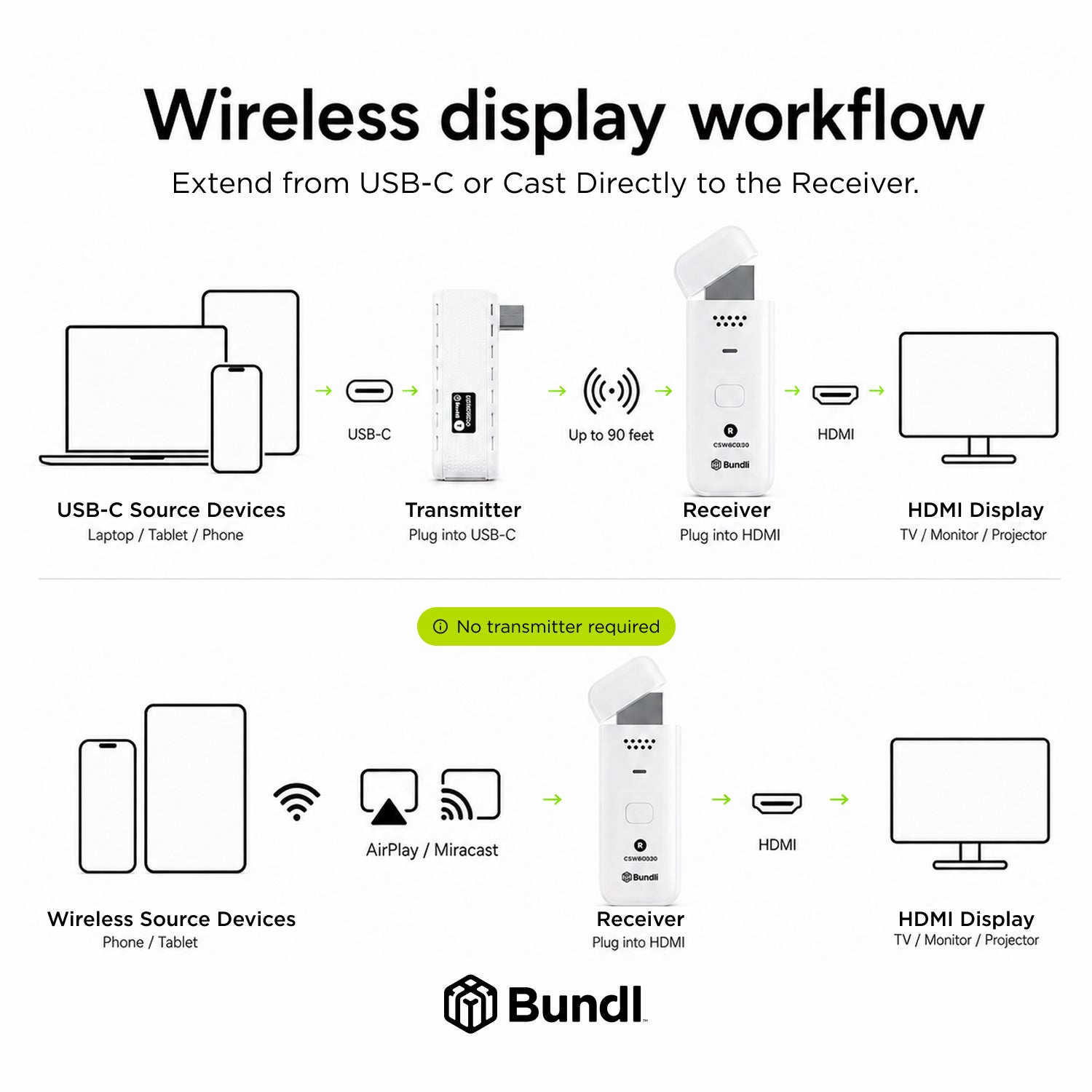

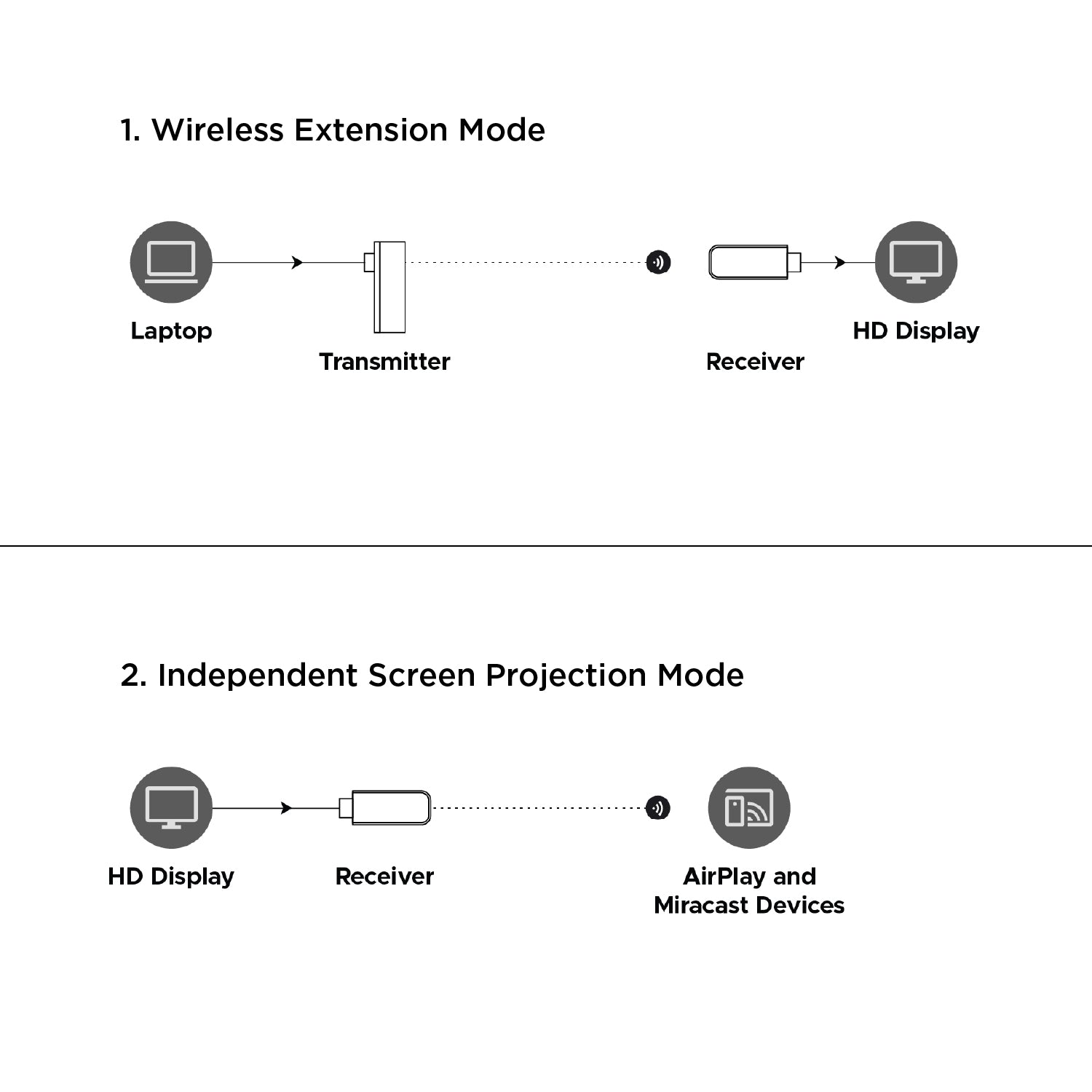

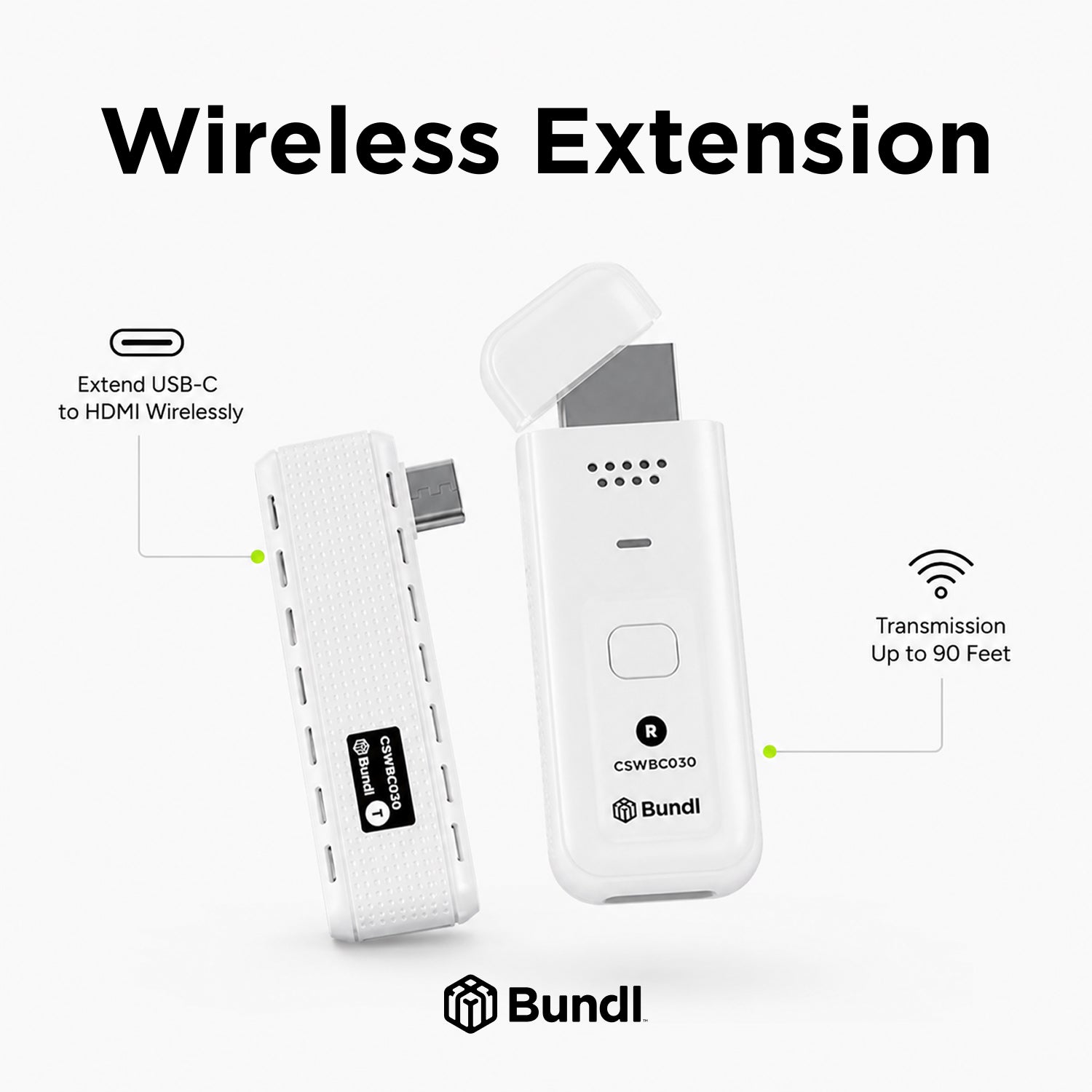

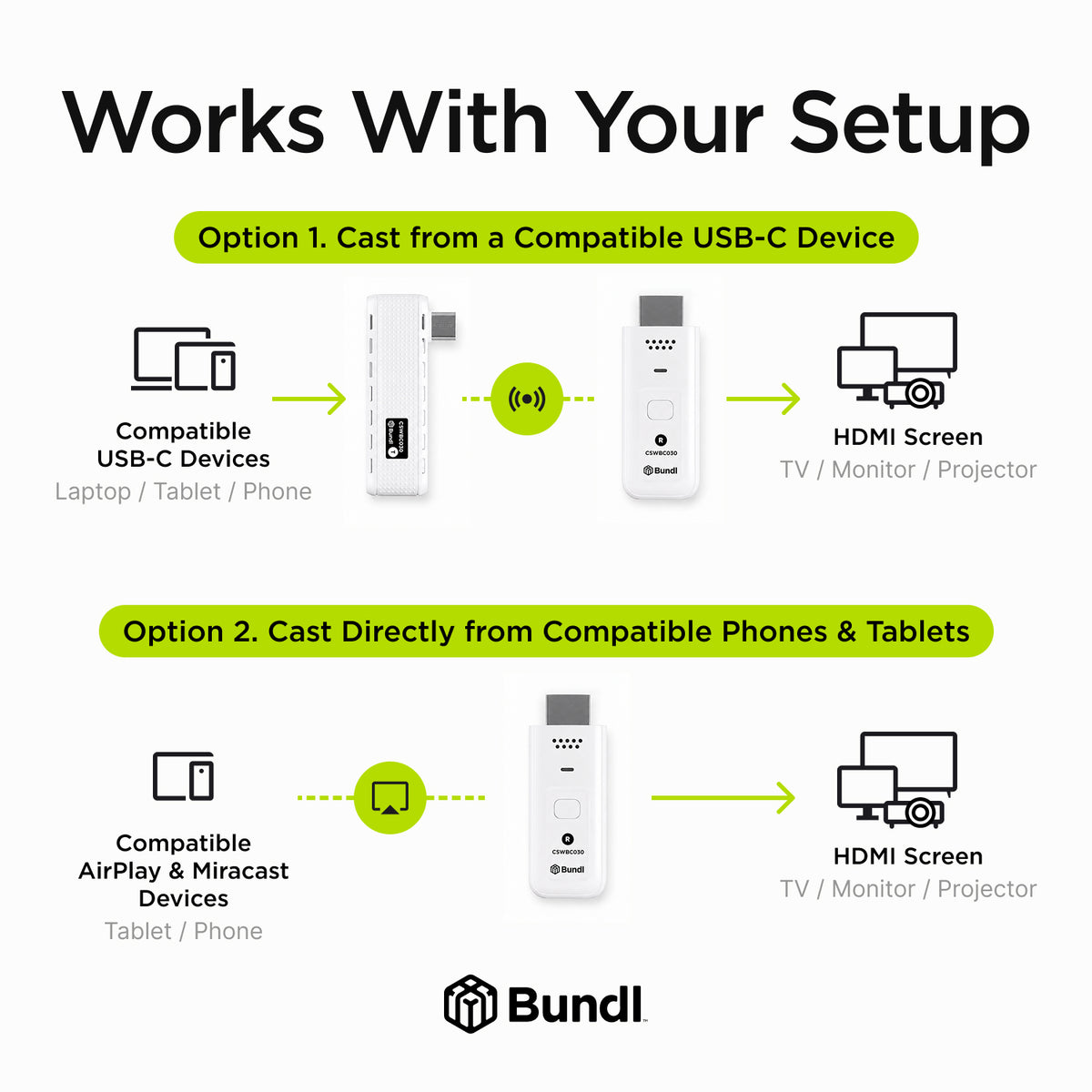

• Extend USB-C to HDMI Wirelessly
• Transmission Up to 90 Feet

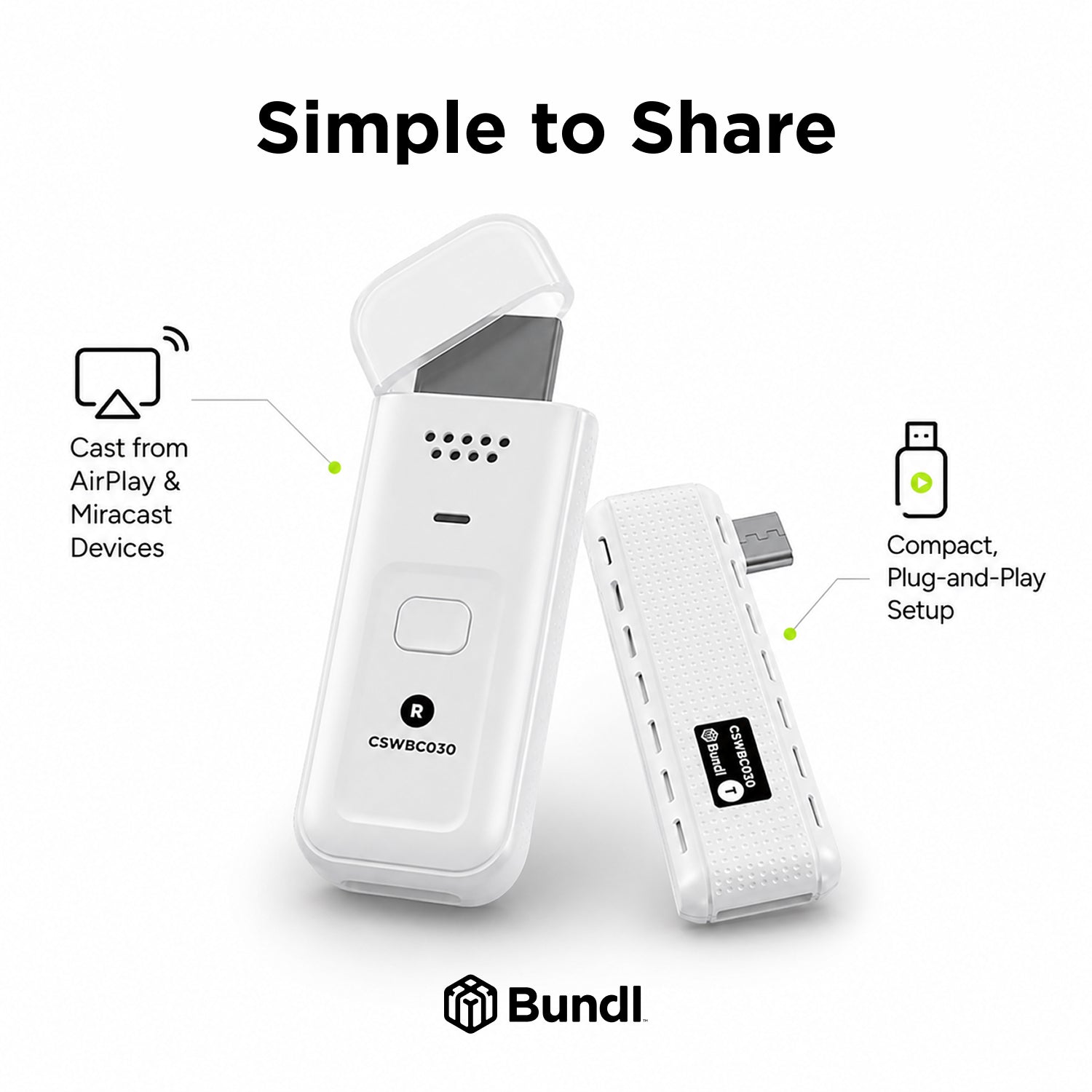

• Cast from AirPlay & Miracast Devices

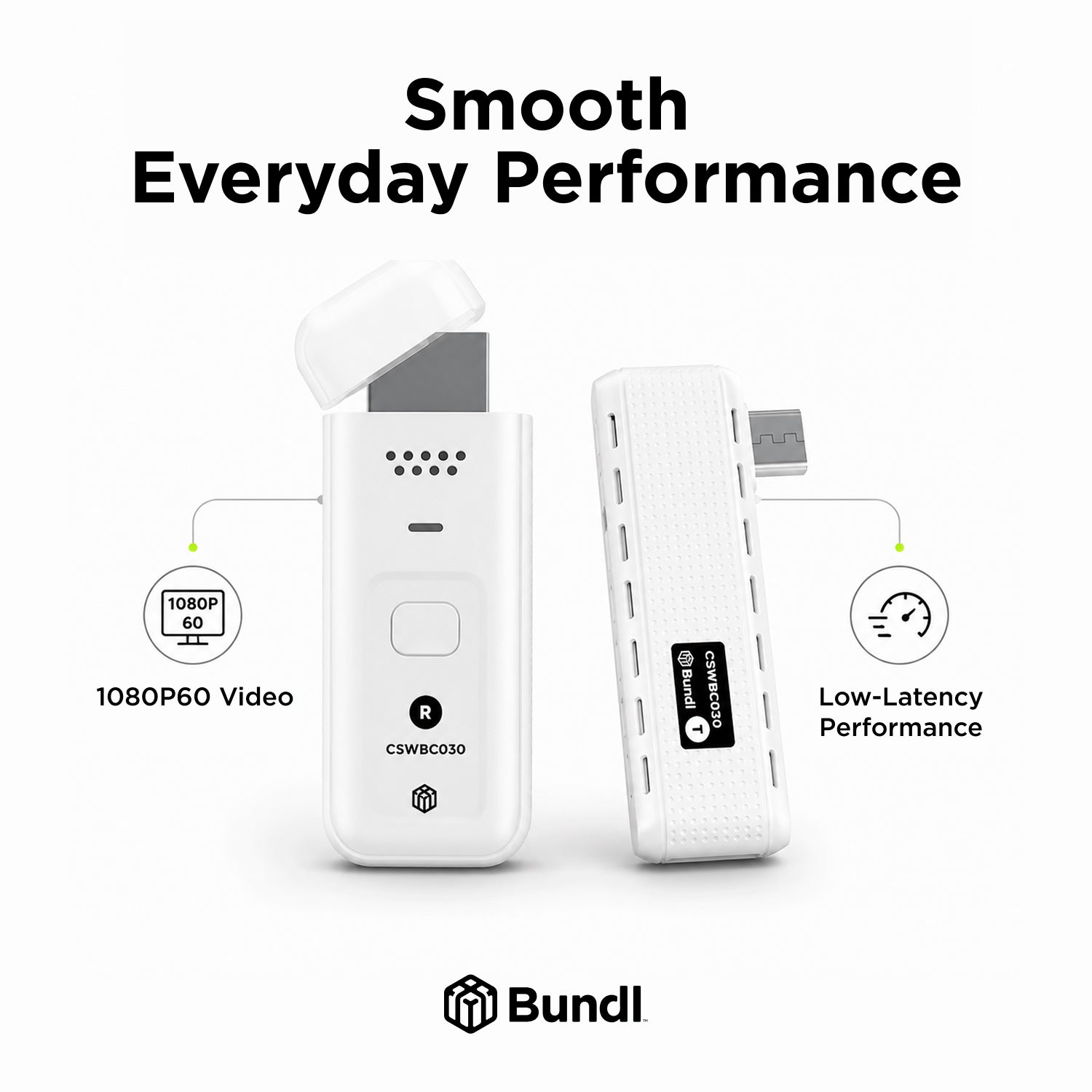

• Low-Latency Performance
• Compact, Plug-and-Play Setup
Specifications
| Standards & Compliance | |
| Signal Standards | HDMI 1.3, USB 3.0, DP-Alt Mode |
| HDCP | HDCP 1.2 |
|
Connector Types |
|
| HDMI Outputs | 1 × HDMI OUT (Type A, 19-pin female) |
| USB Input | 1 × USB IN (USB-C) |
|
Performance |
|
| Max Video Resolution | 1920×1080p |
| Video Bandwidth | 5 Gbps |
| Color Depth | 4:2:0, 4:2:2, 4:4:4 |
| Transmission Distance | 90 ft (30m) clear line of sight |
| Wireless Transmission Type | 802.11ac 5G |
| ESD Protection | AirPlay, Miracast |
|
Power |
|
| Power Input | Female USB-C port |
| Power Supply | DC 5V/2A |
| Power Consumption | 3.5W (max) |
|
Environment |
|
| Operating Temperature | 23 to 158°F / -5 to 70°C |
| Relative Humidity | 5 to 80% RH (no condensation) |
|
Enclosure |
|

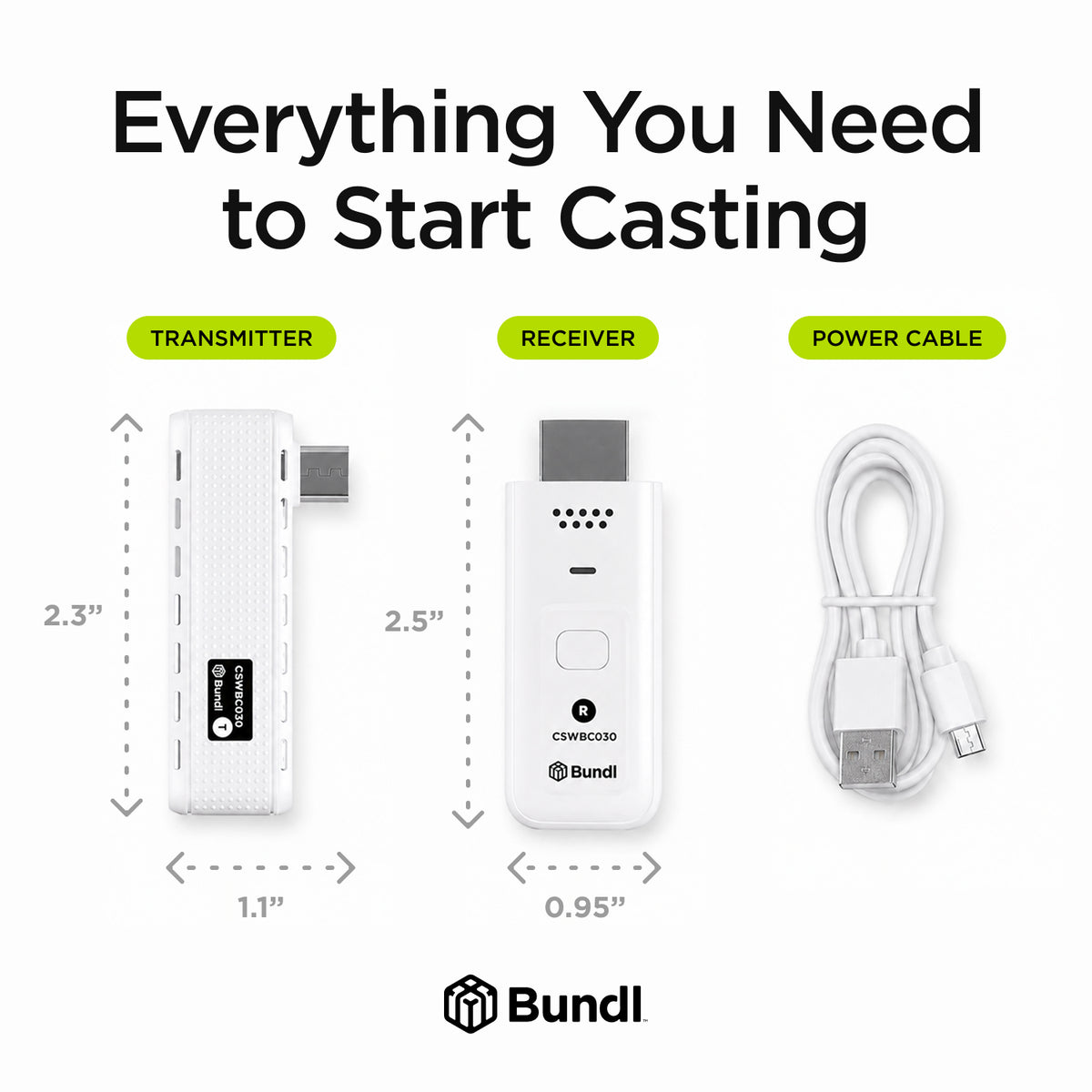

| Product Dimensions (W × D × H) | TX: 2.3 in × 1.1 in × 0.43 in (58mm × 27mm × 11mm) RX: 2.5 in × 0.95 in × 0.46 in (64.4mm × 24.2mm × 11.7mm) |
| Weight | 0.42 lbs (190g) |
|
Warranty |
|
| Parts | 1 year |
| Labor | 1 year |
